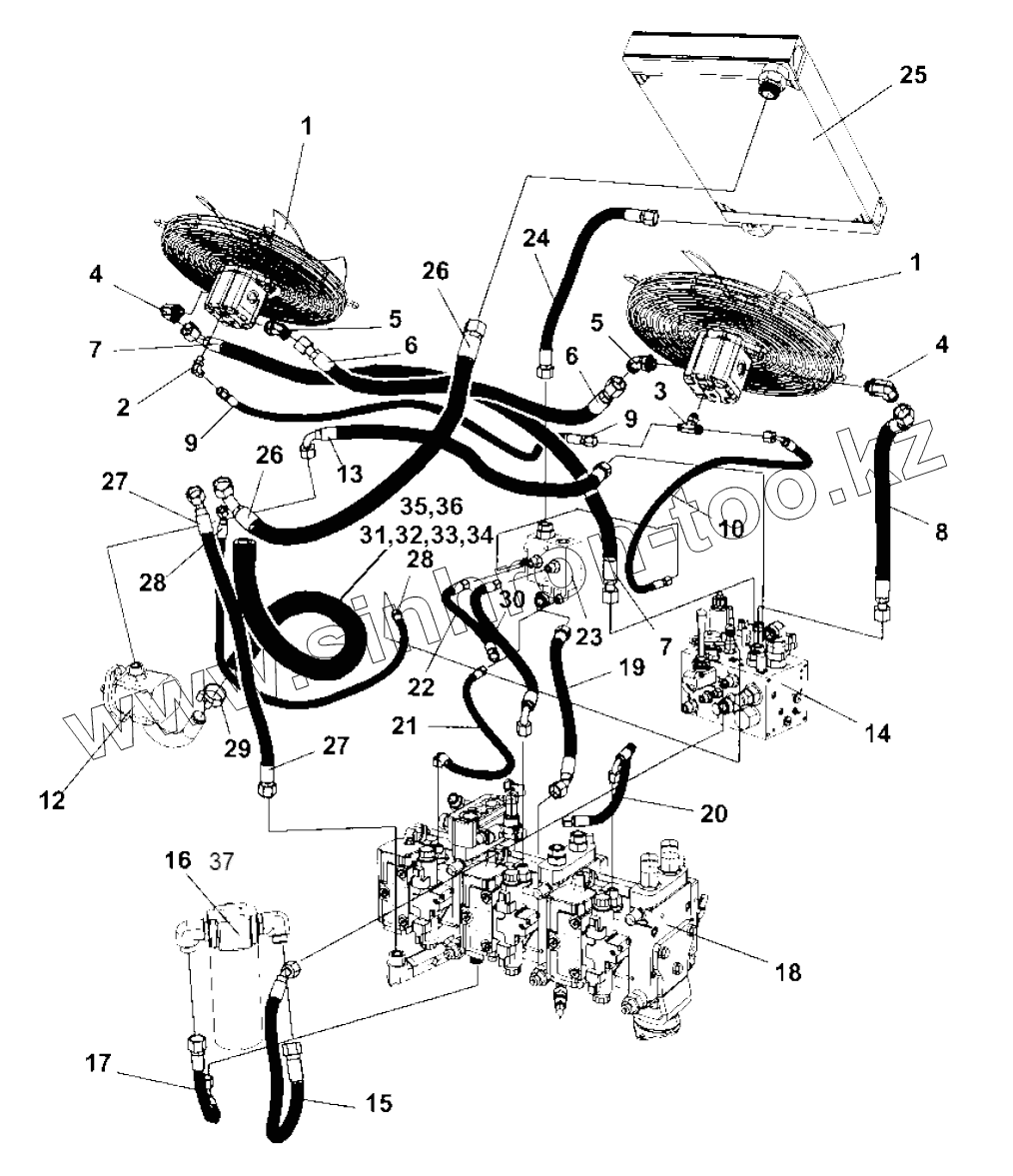

Каталог запасных частей к технике: DYNAPAC CC2200. Hydraulic system, engine room

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
3
4
4
5
5
6
6
7
7
8
9
9
10
12
13
14
15
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
17
18
19
20
21
22
23
24
25
26
26
27
27
28
28
29
30
31
32
33
34
35
36
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
37
Позиция на иллюстрации Заводской номер детали Название детали
1 Fanassembly Fan assembly
2 4700791397 Elbow 90, O-ring
3 4700792340 Tee-connector orfs
4 4700792332 Elbow 90 orfs
5 4700792809 Elbow 90 orfs
6 4700484152 Hydraulic hose
7 4700484151 Hydraulic hose
8 4700484153 Hydraulic hose
9 4700484154 Hydraulic hose
10 4700484032 Hydraulic hose
12 Steeringpump Steering pump, cpl
13 4700484149 Hydraulic hose
14 Hydraulicvalve Hydraulic valve
15 4700484159 Hydraulic hose
16 4700391025 Hydraulic oil filter
16 4700391433 Filter element
16 4812158269 Filter switch
16 4700391432 Cleaning filter element
17 4700484037 Hydraulic hose
18 Hydraulicpump Hydraulic pump, Cpl
19 4700483642 Hydraulic hose
20 4700484036 Hydraulic hose
21 4700484043 Hydraulic hose
22 4700484161 Hydraulic hose
23 Connectionblock Connection block
24 4700484162 Hydraulic hose
25 Radiator Radiator, cpl
26 4700484163 Hydraulic hose
27 4700484159 Hydraulic hose
28 4700484158 Hydraulic hose
29 4812114312 Clamp
30 4700483726 Hydraulic hose
31 4700397567 Pipe
32 4811000117 Hydraulic hose
33 4811000118 Hydraulic hose
34 4700921050 Clamp
35 4700500067 Screw
36 4700904229 Washer
37 4812112260 Hydraulic oil filter
37 4812112262 Hydraulic oil filter element
37 4812160664 Fiction ring, filter head
37 4700936898 Sensor Red
37 4812111766 Bowl + cartridge, spare part
37 4812112264 Bowl, spare part
37 4812112265 Cartridge, spare part
