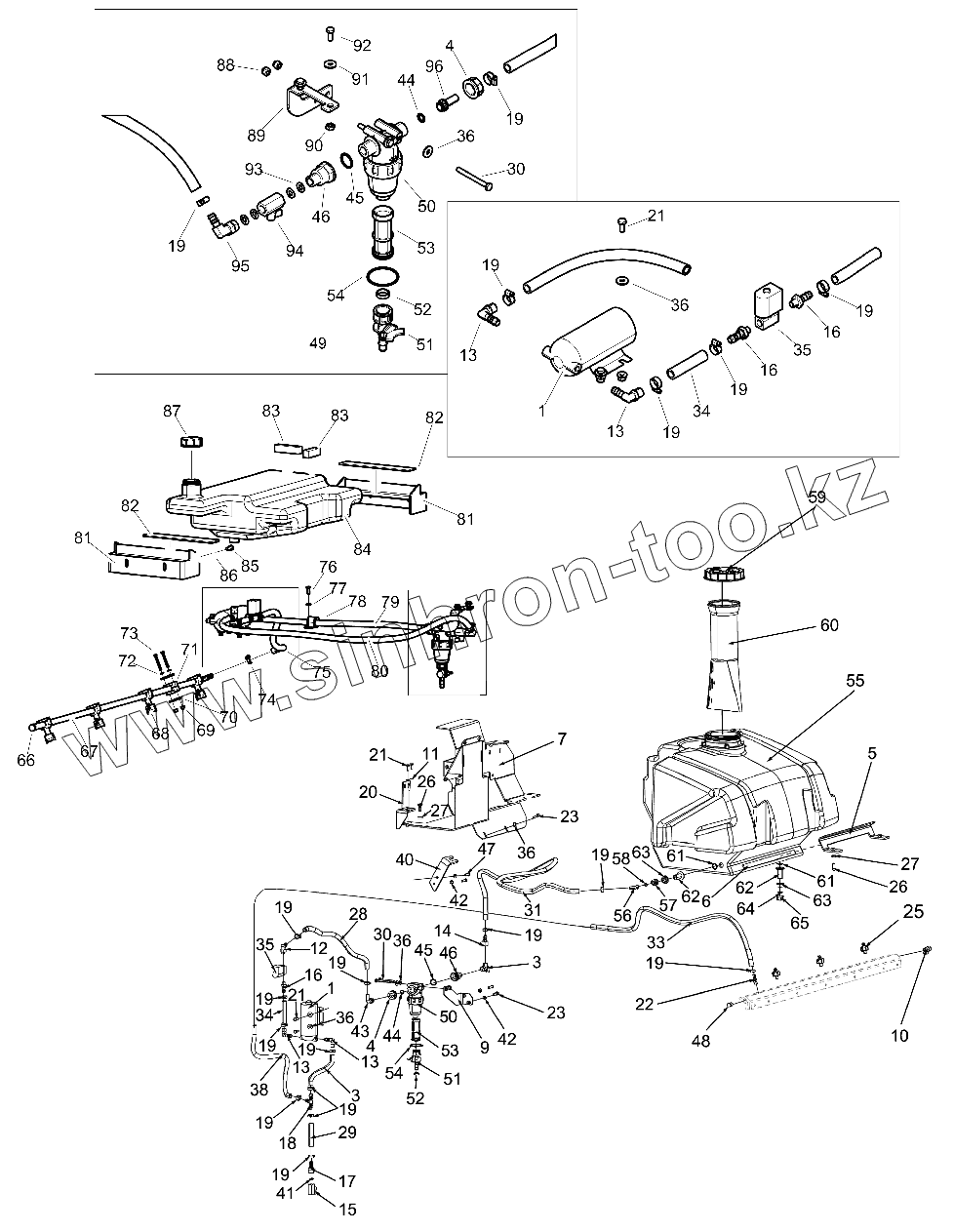

Каталог запасных частей к технике: DYNAPAC CC1300C. Sprinkler system

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
4812124323
4812124324
4812124325
4700160268
4812124327
4700923680
4700903010
4700902869
4700904116
4700902910
4700902868
1
1
3
3
4
4
5
6
7
9
10
11
12
13
13
13
13
14
15
16
16
16
17
18
19
19
19
19
19
19
19
19
19
19
19
19
19
19
19
19
19
20
21
21
21
22
23
23
25
26
26
27
27
28
29
30
30
31
33
34
34
35
35
36
36
36
36
36
38
40
41
42
42
43
44
44
45
45
46
46
47
48
49
50
50
51
51
52
52
53
53
54
54
55
56
57
58
59
60
61
61
62
62
63
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
81
82
82
83
83
84
85
86
87
88
89
90
91
92
93
94
95
96
Позиция на иллюстрации Заводской номер детали Название детали
4812124323 4812124323 Cap, blue
4812124324 4812124324 Strainer
4812124325 4812124325 Gasket
4700160268 4700160268 O-ring
4812124327 4812124327 Nozzle
4700923680 4700923680 Nozzle clamp
4700903010 4700903010 Nylon ring
4700902869 4700902869 Strainer
4700904116 4700904116 Gasket
4700902910 4700902910 Nozzle body
4700902868 4700902868 Coupling, red
1 4812113822 Water pump
3 4812112831 Ball valve
4 4700792779 Swivel nut
5 4700357395 Holder plate
6 4700926911 Rubber strip
7 4812122001 Heat protection
9 4812122413 Bracket
10 4700233215 Ball valve
11 4700904229 Washer
12 4700901431 Hose connection
13 4700923734 Hose connection
14 4812112451 Hose connection
15 4700925599 Ball valve
16 47009001432 Adapter
17 4700924544 Hose connection
18 4700923735 Hose connection
19 4700313002 Hose clamp
20 4812124835 Bracket
21 4700500020 Hex. screw
22 4700791977 Hose connection
23 4700500022 Hex. screw
25 4812124321 Spraying nozzle, cpl
26 4700500028 Screw
27 4700904557 Washer
28 4812112074 Plastic hose
29 4812112074 Plastic hose
30 4700500090 Screw
31 4812112074 Plastic hose
32 4700901191 Protective hose
33 4812112074 Plastic hose
34 4812112074 Plastic hose
35 4700287713 Solenoid valve
36 4700904640 Washer
37 4812112074 Plastic hose
38 4812112074 Plastic hose
40 4812122431 Bracket
41 4700379753 Gasket
42 4700904556 Steel plain washer
43 4812111330 Hose connection
44 4700480852 O-ring 70
45 4700160313 O-ring
46 4812111331 Reducer nipple
47 4700500021 Hex. screw
48 4700791974 Plug threaded
49 4812111325 Water filter
50 4812110651 Filter housing
51 4700379009 Valve
52 4700791568 Gasket
53 4700791949 Filter element
54 4700791959 O-ring
55 4812122414 Water tank, cpl
56 4700393542 Hose connection
57 4700392227 Swivel nut
58 4700792600 O-ring 70
59 4700359003 Tank Cap
60 4700358846 Strainer
61 4700160219 O-ring
62 4700392230 Grommet
63 4700392232 Nut
64 4700392229 Plane gasket
65 4811000168 Cap
66 4700923683 Plug
67 4700384304 Sprinkler pipe
68 4700928781 Sprinkler, cpl
69 4700902285 Nut
70 4700923859 Cover plate
71 4700923876 Clamp
72 4700904228 Steel plain washer
73 4700500016 Screw
74 4700313002 Hose clamp
75 4812124929 Plastic hose
76 4700500053 Hex. screw
77 4700904229 Washer
78 4700921099 Clamp
79 4812124929 Plastic hose
80 4812124929 Plastic hose
81 4700375805 Holder plate
82 4700357819 Rubber cloth
83 4812124929 Plastic hose
84 4700375806 Sprinkling tank
85 4700500028 Screw
86 4700904557 Washer
87 4700902268 Cap
88 4700586003 Hexagon lock nut
89 4812112009 Bracket
90 0298010600 Hex nut
91 4700904640 Washer
92 4700500053 Hex. screw
93 4700379753 Gasket
94 4700925599 Ball valve
95 4700924996 Hose connection
96 4812111329 Hose connebtion swivel
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
