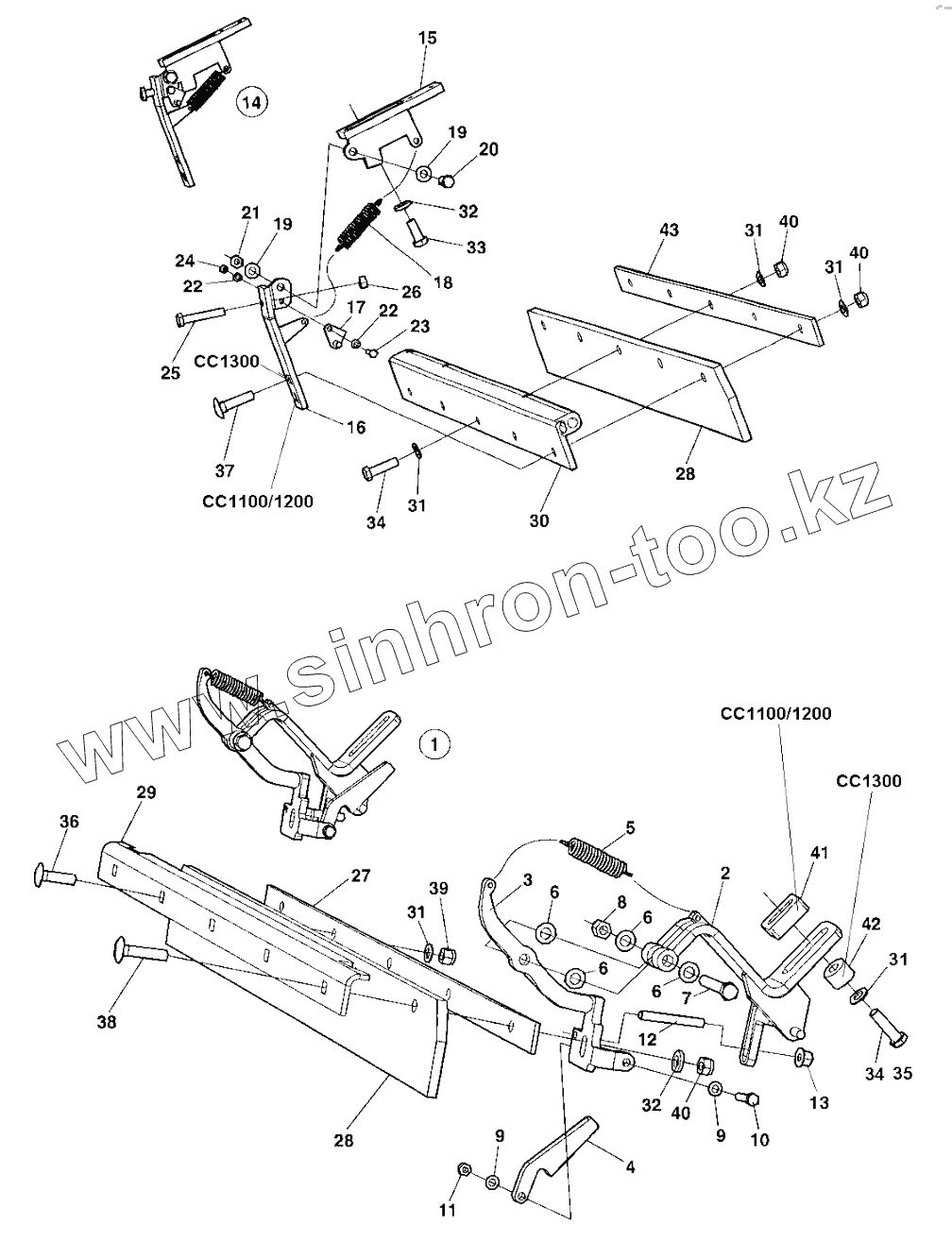

Каталог запасных частей к технике: DYNAPAC CC1300C. Scrapers, spring loaded (option)
1
2
3
4
5
6
6
6
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
22
23
24
25
26
27
28
28
29
30
31
31
31
31
31
32
32
33
34
34
35
36
37
38
39
40
40
40
42
43
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4700389999 | Scraper bracket | |
| 2 | Bracket | Bracket | |
| 3 | Bracket | Bracket | |
| 4 | 4700385613 | Hook | |
| 5 | 4700358876 | Spring | |
| 6 | 4700904231 | Washer | |
| 7 | 4700500133 | Screw | |
| 8 | 4700586019 | Lock nut | |
| 9 | 4700904229 | Washer | |
| 10 | 4700500047 | Hexagon head screw | |
| 11 | 4700791182 | Nut | |
| 12 | Gasket | Gasket | |
| 13 | 4700902287 | Nut | |
| 14 | 4700389998 | Scraper bracket | |
| 15 | Bracket | Bracket | |
| 16 | Bracket | Bracket | |
| 17 | Stop | Stop | |
| 18 | 4700358876 | Spring | |
| 19 | 4700904230 | Washer | |
| 20 | 4700380255 | Screw | |
| 21 | 4700586018 | Lock nut | |
| 22 | 4700904228 | Steel plain washer | |
| 23 | 4700500015 | Hex. screw | |
| 24 | 4700586002 | Lock nut | |
| 25 | 4700791082 | Screw | |
| 26 | 4700570006 | Hex. nut | |
| 27 | 4700384050 | Scraper bracket | |
| 28 | 4700385218 | Scraper | |
| 29 | 4700385673 | Scraper bracket | |
| 30 | 4812114157 | Sprinkler pipe | |
| 31 | 4700904231 | Washer | |
| 32 | 4700904703 | Plain washer | |
| 33 | 4700500046 | Hex. head screw | |
| 34 | 4700500056 | Screw | |
| 35 | Screw | Screw | |
| 36 | 4700904342 | Screw | |
| 37 | 4700901330 | Screw | |
| 38 | 4700904424 | Screw | |
| 39 | 4700586019 | Lock nut | |
| 40 | 4700791963 | Lock nut | |
| 42 | 4700384493 | Spacer sleeve | |
| 43 | 4700377796 | Scraper bracket |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
