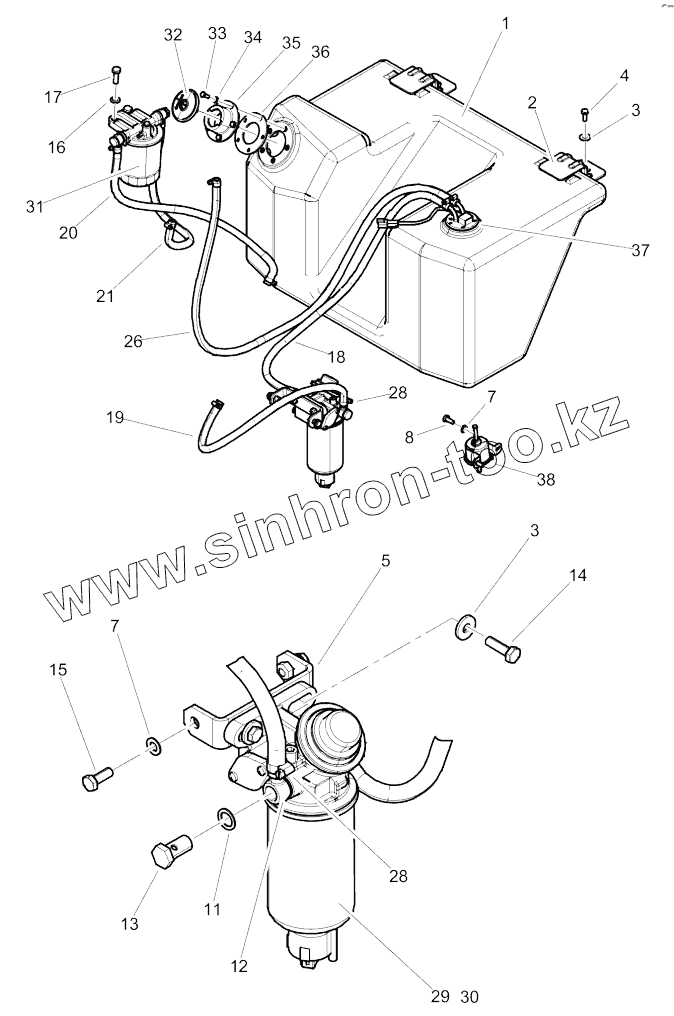

Каталог запасных частей к технике: DYNAPAC CC1300C. Fuel system
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
CA1400 (2016)
CA2500D (2016)
CA2500D (2018)
CA2500D-PD (2018)
CA250D (2011)
CA252D (2008)
CA2800D (2017)
CA3500D (2016)
CA4000D (2017)
CA4000D (2020)
CA4600D (2019)
CA5500D (2015)
CA610PD (2014)
CA6500 (2018)
CC1000 (2019)
CC1100CC (2015)
CC1200C Plus (2015)
CC1200C VI (2018)
CC1200CC (2018)
CC125 (2015)
CC1250 (2015)
CC1300 (2018)
CC1300C (2015)
CC1300C (2016)
CC2200 (2018)
CC2200 (2020)
CC2300C (2018)
CC3300 (2018)
CC4000 VI (2018)
CC4200C VI (2020)
CC5200C (2018)
CC6200 VI (2020)
CC800 (2019)
CC900 (2018)
CC900S (2018)
CG2300 (2018)
CP142 (2015)
CP275 (2014)
Dynapac CA1500 (2017)
Dynapac CA2500 (2012)
Dynapac CA302D (2008)
Dynapac CA302D (2010)
Dynapac CA5000D (2017)
Dynapac CC142 (2009)
Dynapac CC2200C (2015)
Dynapac CC224HF (2012)
Dynapac CC322 (2008)
Dynapac CC422 (2010)
Dynapac CC5200 (2014)
Dynapac CC5200 (2017)
Dynapac CC5200 (2017)
Dynapac CC5200 VI (2017)
Dynapac CC800 (2013)
Dynapac CC800 (2014)
Dynapac F1200C/CS (2018)
Dynapac F1200CS/CS (2018)
Dynapac F1800C (2018)
Dynapac F181C (2010)
Dynapac PL2000LS (2010)
Dynapac PL2000LS (2010)
Dynapac PL2000S (2010)
Dynapac PL2000S (2010)
Dynapac SCC1300 (2014)
Dynapac SD2500C (ч. 1) (2018)
Dynapac SD2500C (ч. 2) (2018)
Dynapac SD2550C (ч. 1) (2018)
Dynapac SD2550C (ч. 2) (2018)
F2500C (2018)
SD2550CS (2015)
Схема
>
Не выбрано
4812160460_Service kit, 50h
4812160461_Service kit, 50h Plus
4812160462_Service kit, 250 / 750h
4812160463_Service kit, 250 / 750h Plus
4812160464_Service kit, 500h
4812160465_Service kit, 500h Plus
4812160466_Service kit, 1000h
4812160467_Service kit, 1000h Plus
4812160468_Start-up kit
4700938909 Eccentric shaft kit
4700938893 Drum rotation kit
4700938915 Scraper kit (12 mm)
Scraper kit, Wheels
4700938887 Shock absorber kit, drum
4700938575 Steering hitch kit
Fuses
Keys
Frame, front
Frame, rear
4812120871 Steering hitch
Scrapers, STD
Scrapers, spring loaded (option)
Sprinkler system
Towing device (option)
Drum
Wheels Std
Engine room
Engine module
4812121888 Diesel engine D1803-CR-T-E4B - 37 kW
Bracket kit
Cooling system
Cooler package
Cooler hoses
Exhaust pipe system
Air filter module
Air hoses
Engine hood, cpl
4812115561 Casing
Fuel system
Fan module
Propulsion system
4700357022 Hydraulic motor, propulsion, drum
4812120928 Connection block
4700375632 Hydraulic motor, propulsion
Vibration system
Steering system
4812120737 Hydraulic cylinder
Brake system
Flow divider (option)
Electrical equipment
Horn module
Battery module
Battery disconnector
ECU module
Back-up alarm
Sprinkler Wheels
Working lights
Working lights front
Working light rear
Working light (option) rear
Casing rear
Cover plate rear
Rotating beacon for ROPS (option)
Rotating beacon for ROPS ignition controlled (option)
Rotating beacon, without rops (option)
Driving lights Front RH (option)
Driving lights Front
Driving lights Rear (option)
Direction indicator (option)
Driving lights Front LH (option)
Driving lights Front
Platform module
Platform mount
Step (option)
Instrument panel module
Steering wheel
Control module
Standard ECU module
Forward-reverse control, Right side, single
4812122939 Forward & Reverse control
Cover module
Cover plate, left (single F/R lever)
Forward-Reverse Control module, Dual lever (option)
Driver seat, Std
Driver's seat, without armrests
Seat laterally adjusting
Seat belt module 2"
Seat belt module 3"
Driver seat, Luxury (option)
Rear view mirror (option)
ROPS, foldable (option)
Rops (option)
Canopy (option)
Decals
Fire extinguisher
Tool equipment
SMV-sign and Licence plate
Brake release, drum drive
Brake release, propulsion motor
1
2
3
3
4
5
7
7
8
11
12
13
14
15
16
17
18
19
20
21
26
28
28
29
30
31
32
33
34
35
36
37
38
Позиция на иллюстрации
Заводской номер детали
Название детали
1
4812118133
Fuel tank
2
4700357466
Holder plate
3
4700904640
Washer
4
4700500053
Hex. screw
5
4812122256
Bracket
7
4700904229
Washer
8
4700500100
Screw
11
4700747282
Copper washer
12
4700901121
Banjo nipple
13
4700330171
Hollow screw
14
4700923862
Screw
15
4700500020
Hex. screw
16
4812122654
Steel plain washer
17
4700500029
Hex. screw
18
4700904984
Fuel hose
19
4700904984
Fuel hose
20
4700904984
Fuel hose
21
4700904984
Fuel hose
26
4700904984
Fuel hose
28
4700313002
Hose clamp
29
4812117690
Pre fuel filter, cpl.
30
4812159594
Pre Fuel filter element
31
4812160481
Fuel filter element
32
4812118459
Fuel cap
33
4700500013
Hex. screw
34
4700904228
Steel plain washer
35
4812118125
Filler neck end
36
4812118126
Flange gasket
37
4700387552
Level gauge
38
4812156389
Fuel pump
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
