Каталог запасных частей к технике: DYNAPAC CC1300C. Cooling system

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CA1400 (2016) CA2500D (2016) CA2500D (2018) CA2500D-PD (2018) CA250D (2011) CA252D (2008) CA2800D (2017) CA3500D (2016) CA4000D (2017) CA4000D (2020) CA4600D (2019) CA5500D (2015) CA610PD (2014) CA6500 (2018) CC1000 (2019) CC1100CC (2015) CC1200C Plus (2015) CC1200C VI (2018) CC1200CC (2018) CC125 (2015) CC1250 (2015) CC1300 (2018) CC1300C (2015) CC1300C (2016) CC2200 (2018) CC2200 (2020) CC2300C (2018) CC3300 (2018) CC4000 VI (2018) CC4200C VI (2020) CC5200C (2018) CC6200 VI (2020) CC800 (2019) CC900 (2018) CC900S (2018) CG2300 (2018) CP142 (2015) CP275 (2014) Dynapac CA1500 (2017) Dynapac CA2500 (2012) Dynapac CA302D (2008) Dynapac CA302D (2010) Dynapac CA5000D (2017) Dynapac CC142 (2009) Dynapac CC2200C (2015) Dynapac CC224HF (2012) Dynapac CC322 (2008) Dynapac CC422 (2010) Dynapac CC5200 (2014) Dynapac CC5200 (2017) Dynapac CC5200 (2017) Dynapac CC5200 VI (2017) Dynapac CC800 (2013) Dynapac CC800 (2014) Dynapac F1200C/CS (2018) Dynapac F1200CS/CS (2018) Dynapac F1800C (2018) Dynapac F181C (2010) Dynapac PL2000LS (2010) Dynapac PL2000LS (2010) Dynapac PL2000S (2010) Dynapac PL2000S (2010) Dynapac SCC1300 (2014) Dynapac SD2500C (ч. 1) (2018) Dynapac SD2500C (ч. 2) (2018) Dynapac SD2550C (ч. 1) (2018) Dynapac SD2550C (ч. 2) (2018) F2500C (2018) SD2550CS (2015)

Схема > Не выбрано 4812160460_Service kit, 50h 4812160461_Service kit, 50h Plus 4812160462_Service kit, 250 / 750h 4812160463_Service kit, 250 / 750h Plus 4812160464_Service kit, 500h 4812160465_Service kit, 500h Plus 4812160466_Service kit, 1000h 4812160467_Service kit, 1000h Plus 4812160468_Start-up kit 4700938909 Eccentric shaft kit 4700938893 Drum rotation kit 4700938915 Scraper kit (12 mm) Scraper kit, Wheels 4700938887 Shock absorber kit, drum 4700938575 Steering hitch kit Fuses Keys Frame, front Frame, rear 4812120871 Steering hitch Scrapers, STD Scrapers, spring loaded (option) Sprinkler system Towing device (option) Drum Wheels Std Engine room Engine module 4812121888 Diesel engine D1803-CR-T-E4B - 37 kW Bracket kit Cooling system Cooler package Cooler hoses Exhaust pipe system Air filter module Air hoses Engine hood, cpl 4812115561 Casing Fuel system Fan module Propulsion system 4700357022 Hydraulic motor, propulsion, drum 4812120928 Connection block 4700375632 Hydraulic motor, propulsion Vibration system Steering system 4812120737 Hydraulic cylinder Brake system Flow divider (option) Electrical equipment Horn module Battery module Battery disconnector ECU module Back-up alarm Sprinkler Wheels Working lights Working lights front Working light rear Working light (option) rear Casing rear Cover plate rear Rotating beacon for ROPS (option) Rotating beacon for ROPS ignition controlled (option) Rotating beacon, without rops (option) Driving lights Front RH (option) Driving lights Front Driving lights Rear (option) Direction indicator (option) Driving lights Front LH (option) Driving lights Front Platform module Platform mount Step (option) Instrument panel module Steering wheel Control module Standard ECU module Forward-reverse control, Right side, single 4812122939 Forward & Reverse control Cover module Cover plate, left (single F/R lever) Forward-Reverse Control module, Dual lever (option) Driver seat, Std Driver's seat, without armrests Seat laterally adjusting Seat belt module 2" Seat belt module 3" Driver seat, Luxury (option) Rear view mirror (option) ROPS, foldable (option) Rops (option) Canopy (option) Decals Fire extinguisher Tool equipment SMV-sign and Licence plate Brake release, drum drive Brake release, propulsion motor

1

2

3

3

4

4

5

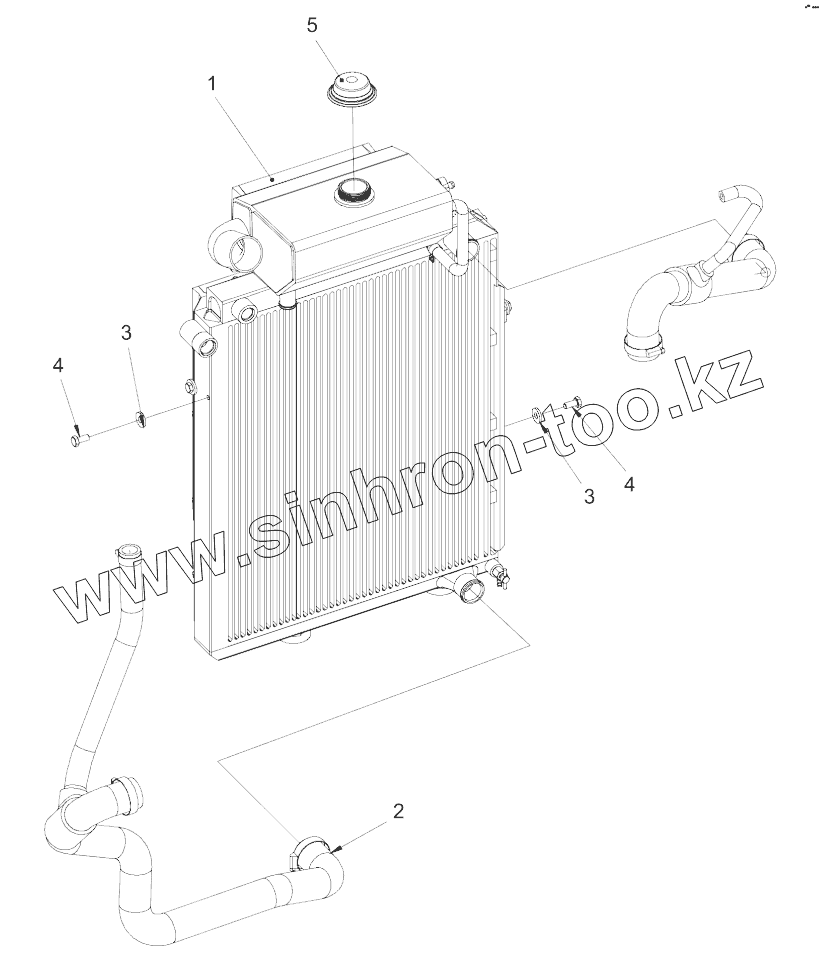

Позиция на иллюстрации	Заводской номер детали		Название детали
1	4812124272		Water/Oil cooler, cpl
2	Cooler hose kit		Cooler hose kit
3	4700904640		Washer
4	4700500100		Screw
5	4700903714		Cap
