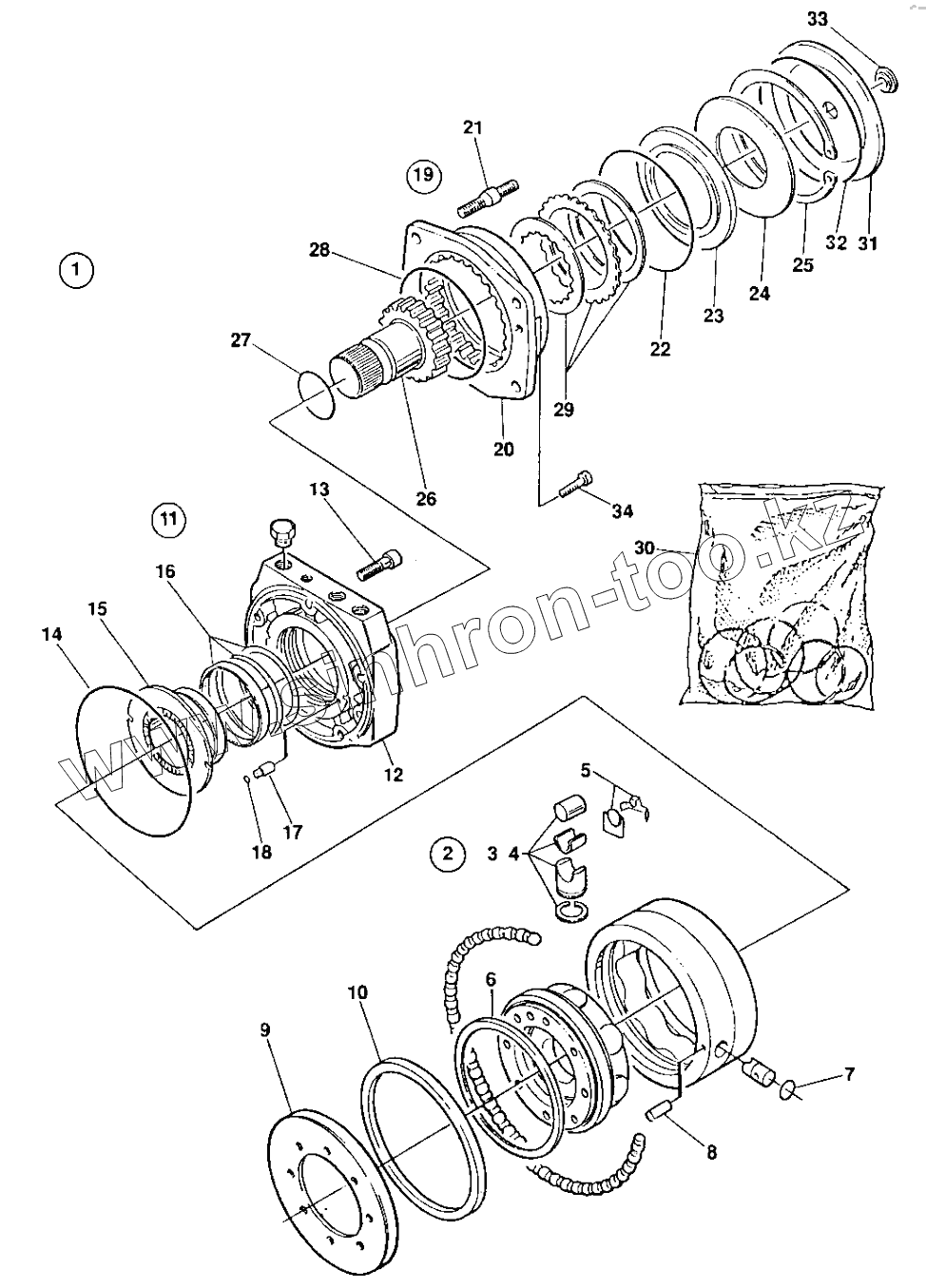

Каталог запасных частей к технике: DYNAPAC CC1300C. 4700357022 Hydraulic motor, propulsion, drum
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4700357022 | Hydraulic motor, propulsion, drum | |
| 2 | 4700902817 | Cylinder block | |
| 3 | 4812160492 | Piston kit | |
| 4 | Retaining ring | Retaining ring | |
| 5 | Piston repair kit | Piston repair kit | |
| 6 | 4700902820 | Sealing | |
| 7 | 4700902821 | O-ring | |
| 8 | 4700902822 | Pin | |
| 9 | 4700909534 | Deflector | |
| 10 | 4700909497 | Seal | |
| 11 | 4700902823 | Distributing valve | |
| 12 | 4700902824 | Cover | |
| 13 | 4700902825 | Screw | |
| 14 | 4700902826 | O-ring | |
| 15 | 4700902827 | Flange | |
| 16 | 4700902828 | Seal kit | |
| 17 | 4700902829 | Pin | |
| 18 | 4700902830 | O-ring | |
| 19 | 4700902831 | Brake | |
| 20 | 4700902832 | Brake housing | |
| 21 | Screw | Screw | |
| 22 | 4700902834 | O-ring | |
| 23 | 4700902835 | Brake piston | |
| 24 | 4700902836 | Disc spring | |
| 25 | 4700928337 | Snap ring | |
| 26 | 4700902837 | Shaft | |
| 27 | 4700902838 | O-ring | |
| 28 | 4700902839 | O-ring | |
| 29 | 4700902840 | Brake disc kit | |
| 30 | 4700902841 | Gasket kit | |
| 31 | 4700908063 | Cover, cpl | |
| 32 | 4700938209 | O-ring | |
| 33 | 4700950381 | Plug | |
| 34 | 4700908786 | Screw |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
