Каталог запасных частей к технике: DYNAPAC CC1300C. Standard ECU module

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CA1400 (2016) CA2500D (2016) CA2500D (2018) CA2500D-PD (2018) CA250D (2011) CA252D (2008) CA2800D (2017) CA3500D (2016) CA4000D (2017) CA4000D (2020) CA4600D (2019) CA5500D (2015) CA610PD (2014) CA6500 (2018) CC1000 (2019) CC1100CC (2015) CC1200C Plus (2015) CC1200C VI (2018) CC1200CC (2018) CC125 (2015) CC1250 (2015) CC1300 (2018) CC1300C (2015) CC1300C (2016) CC2200 (2018) CC2200 (2020) CC2300C (2018) CC3300 (2018) CC4000 VI (2018) CC4200C VI (2020) CC5200C (2018) CC6200 VI (2020) CC800 (2019) CC900 (2018) CC900S (2018) CG2300 (2018) CP142 (2015) CP275 (2014) Dynapac CA1500 (2017) Dynapac CA2500 (2012) Dynapac CA302D (2008) Dynapac CA302D (2010) Dynapac CA5000D (2017) Dynapac CC142 (2009) Dynapac CC2200C (2015) Dynapac CC224HF (2012) Dynapac CC322 (2008) Dynapac CC422 (2010) Dynapac CC5200 (2014) Dynapac CC5200 (2017) Dynapac CC5200 (2017) Dynapac CC5200 VI (2017) Dynapac CC800 (2013) Dynapac CC800 (2014) Dynapac F1200C/CS (2018) Dynapac F1200CS/CS (2018) Dynapac F1800C (2018) Dynapac F181C (2010) Dynapac PL2000LS (2010) Dynapac PL2000LS (2010) Dynapac PL2000S (2010) Dynapac PL2000S (2010) Dynapac SCC1300 (2014) Dynapac SD2500C (ч. 1) (2018) Dynapac SD2500C (ч. 2) (2018) Dynapac SD2550C (ч. 1) (2018) Dynapac SD2550C (ч. 2) (2018) F2500C (2018) SD2550CS (2015)

Схема > Не выбрано 4812156265 Service kit 50h 4812159563 Service kit 50h Plus 4812156288 Service kit 250 / 750 h 4812159564 Service kit 250/750h Plus 4812156266 Service kit 500h 4812159565 Service kit 500h Plus 4812156268 Service kit 1000 h 4812159567 Service kit 1000h Plus 4812159572 Start-up kit 4700938909 Eccentric shaft kit 4700938893 Drum rotation kit 4700938915 Scraper kit (12 mm) Scraper kit, Wheels 4700938887 Shock absorber kit, drum 4700938575 Steering hitch kit Keys Fuses Frame, front To 0A014861 incl. 0A014893 Frame, rear To 0A014861 incl. 0A014893 Frame, front From 0A014862 excl. 0A014893 To 0A014957 Frame, rear From 0A014862 excl. 0A014893 To 0A014957 Frame, front From 0A014958 Frame, rear From 0A014958 4700358975 Steering hitch To 0A014837 4812120871 Steering hitch From 0A014838 To 0A014839 Scrapers, STD To 0A014957 Scrapers, wheels, std To 0A014957 Scraper From 0A014958 Scrapers, wheels From 0A014958 Scrapers, spring loaded option To 0A014957 Scrapers, spring loaded (option) From 0A014958 Sprinkler system Drum To 0A014861 incl. 0A014893 Drum From 0A014862 excl. 0A014893 Wheels Std Engine module Engine room 4812110882 Diesel engine V2203 -34 kW Exhaust system Fan Air filter Water cooler To 0A015292 Water cooler From 0A015293 4812118164 Engine hood, cpl 4812115561 Casing Fuel system To 0A013025 Fuel system From 0A013026 Cooler hoses Air hoses Fuel hoses Propulsion system To 0A014957 incl. 0A014959 - 0A014960 Hydraulic pump, propulsion To 0A014957 incl. 0A014959 - 0A014960 4700372352 Control unit, cpl To 0A014957 incl. 0A014959 - 0A014960 4700357022 Hydraulic motor, propulsion, drum To 0A014957 incl. 0A014959 - 0A014960 4812110281 Junction block To 0A014957 incl. 0A014959 - 0A014960 4700375632 Hydraulic motor, propulsion To 0A014957 incl. 0A014959 - 0A014960 Propulsion system From 0A014958 excl. 0A014959 - 0A014960 To 0A015764 Propulsion system From 0A015765 Vibration system To 0A014957 incl. 0A014959 - 0A014960 4812112054 Hydraulic pump To 0A014957 incl. 0A014959 - 0A014960 4700391271 Vibration motor To 0A014957 incl. 0A014959 - 0A014960 Vibration system From 0A014958 excl. 0A014959 - 0A014960 Steering system 4700374603 Steering cylinder To 0A012768 incl. 0A012770 - 0A012993, 0A012995 - 0A012996, 0A012998 - 0A013002 4812120737 Hydraulic cylinder From 0A012769 excl. 0A012770 - 0A012993, 0A012995 - 0A012996, 0A012998 - 0A013002 Brake system To 0A014957 incl. 0A014959 - 0A014960 Hydraulic brake From 0A014958 excl. 0A014959 - 0A014960 To 0A016077 Hydraulic brake From 0A016078 Flow divider (option) To 0A015292 Flow divider From 0A015293 (option) Electrical equipment Horn module Battery module Battery disconnector Cable harness To 0A014960 Cable harness From 0A014961 Working lights Working lights front Working light rear Working light (option) rear Casing rear Cover plate rear Rotating beacon for ROPS (option) Rotating beacon for ROPS ignition controlled (option) Rotating beacon, without rops (option) Driving lights Front RH (option) Driving lights Front RH (option) Driving lights Rear (option) Driving lights Front LH (option) Driving lights Front LH (option) Direction indicator (option) Back-up alarm Sprinkler Wheels (option) Drivers platform Platform module Platform mount Instrument panel module Steering wheel Control module Standard ECU module Forward-Reverse control module To 0A014351 4812113676 Forward and reverse control handle To 0A014351 Forward-reverse control left (option) To 0A014351 Cover plate, Dual F&R-control left side To 0A014351 Forward-reverse control, Right side, single From 0A014352 - 0A015764 4812121384 Forward & Reverse control From 0A014352 - 0A015764 Cover plate, Dual F&R-control, left side From 0A014352 - 0A015764 Forward-Reverse Control module, Dual lever (option) From 0A014352 - 0A015764 Forward-Reverse control module From 0A015765 Forward-Reverse Control module, Dual lever (option) From 0A015765 Throttle control, cpl Arm rests, seat belt, laterally adjusting Step (option) Driver seat, Std Driver seat, Std with armrests (option) Driver seat, Luxury (option) Driver's seat, without armrests Seat belt module 3" Seat belt module 2" Rear view mirror (option) ROPS, foldable (option) Rops (option) Canopy (option) Decals Fire extinguisher Tool equipment SMV-sign and Licence plate Brake release, "high torque" drum drive Brake release, propulsion motor

1

2

3

4

5

6

7

8

9

10

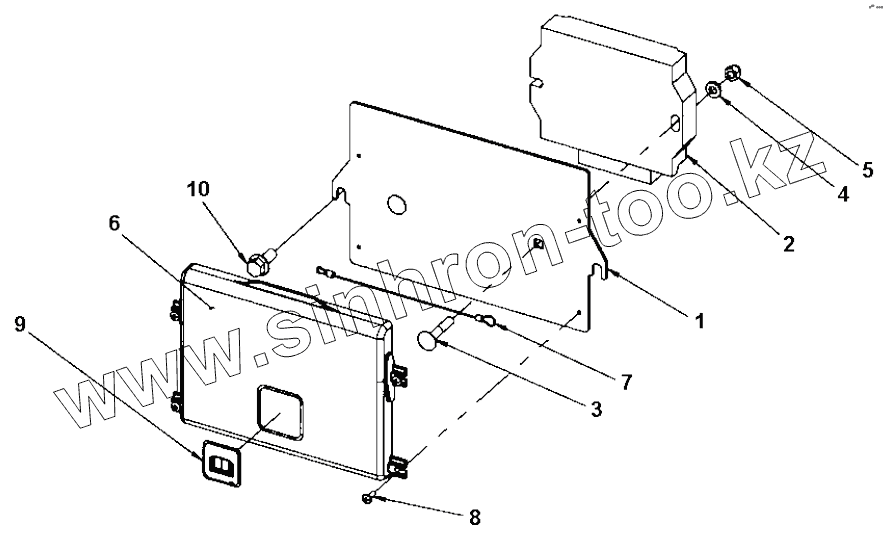

Позиция на иллюстрации	Заводской номер детали		Название детали
1	4700388447		Cover
2	4812114386		Control unit, ECU
3	4700791775		Bolt
4	4700904556		Steel plain washer
5	4700586003		Hexagon lock nut
6	4700383705		Instruction manual box
7	4700357643		Wire
8	4700791226		Screw
9	4700903425		Safety decal READ SAFETY INSTRUCTIONS
10	4700500505		Screw
