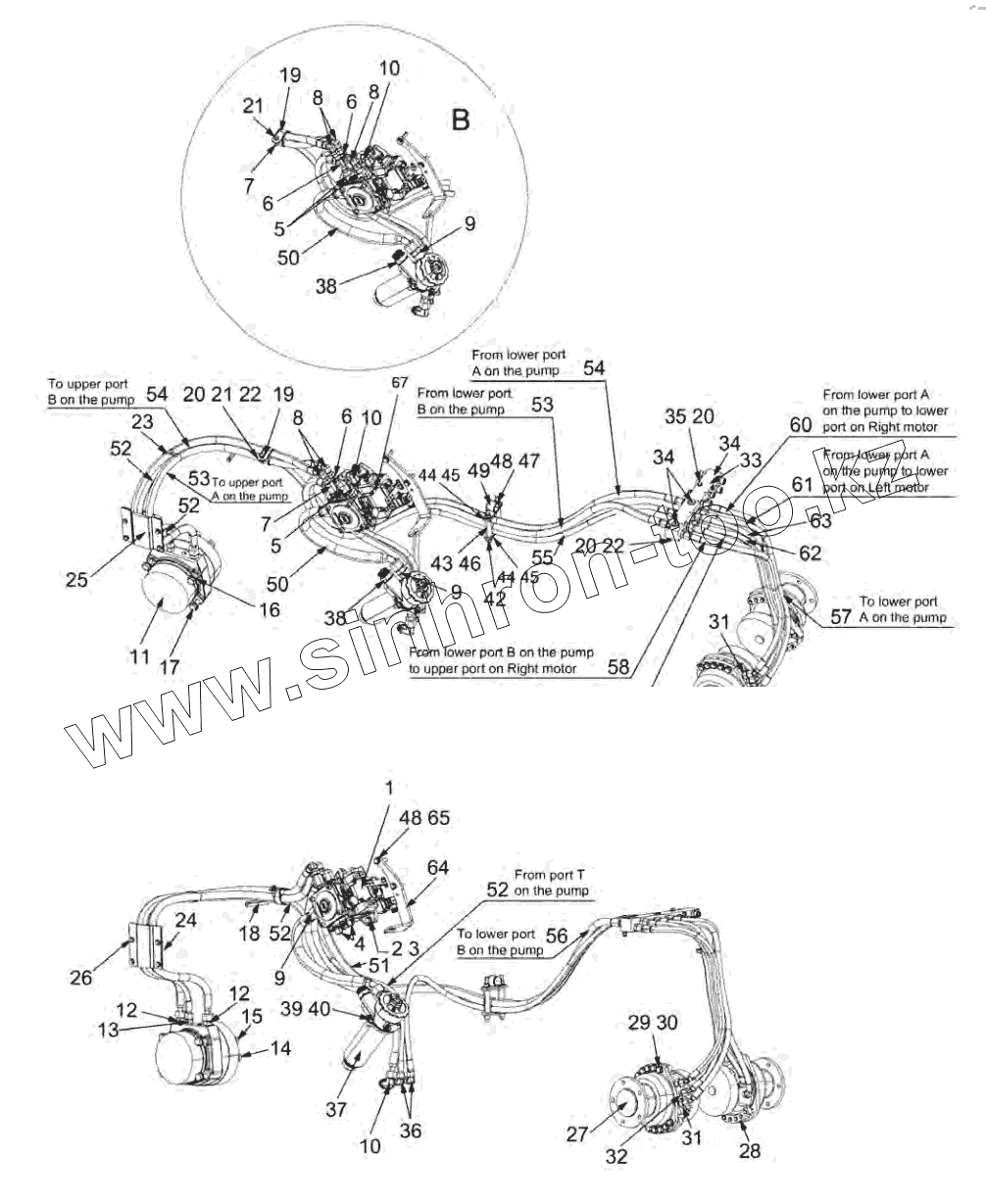

Каталог запасных частей к технике: DYNAPAC CC1300C. Propulsion system From 0A015765
1
2
3
4
5
5
5
5
6
6
6
6
6
6
7
7
7
7
8
8
8
8
8
8
9
9
9
10
10
10
11
12
12
13
14
15
16
17
18
19
19
20
20
20
21
21
22
22
23
24
25
26
27
28
29
30
31
31
32
33
34
34
35
36
37
38
38
39
40
42
43
44
44
45
45
46
47
48
48
49
50
50
51
52
52
52
52
53
53
54
54
55
56
57
58
60
61
62
63
64
65
67
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4812120091 | Hydraulic pump | |
| 2 | 4700904703 | Plain washer | |
| 3 | 4700500037 | Hex. screw | |
| 4 | 4700923405 | Measuring nipple | |
| 5 | 4700791699 | Elbow 90° | |
| 5 | 4700791408 | Straight o-ring connector | |
| 6 | 4700791798 | Adapter | |
| 6 | 4700791798 | Adapter | |
| 7 | 4700791792 | Tee-connector | |
| 7 | 4700902286 | Lock nut | |
| 8 | 4700791745 | Elbow 90, O-ring with swivel | |
| 8 | 4700791745 | Elbow 90, O-ring with swivel | |
| 9 | 4700904728 | Adapter | |
| 10 | 4700792332 | Elbow 90 orfs | |
| 11 | 4700357022 | Hydraulic motor, propulsion, drum | |
| 12 | 4700904641 | Straight connector orfs | |
| 13 | 4700791412 | Straight o-ring connector | |
| 14 | 4700384114 | Spacer | |
| 15 | 4700928022 | Screw | |
| 16 | 4700904232 | Steel plain washer | |
| 17 | 4700947698 | Hex. head screw | |
| 18 | 4700902379 | Edge trim | |
| 19 | 4700921022 | Hose clamp | |
| 20 | 4700904229 | Washer | |
| 21 | 4700500506 | Screw | |
| 22 | 4700586003 | Hexagon lock nut | |
| 23 | 4700313102 | Cable ties | |
| 24 | 4700371313 | Hose clamp | |
| 25 | 4700371314 | Hose clamp | |
| 26 | 4700901832 | Screw | |
| 27 | 4700375632 | Hydraulic motor, propulsion | |
| 28 | 4812110490 | Holder | |
| 29 | 4700904231 | Washer | |
| 30 | 4700500269 | Screw | |
| 31 | 4700791547 | Straight connector orfs | |
| 32 | 4700791409 | Straight connector orfs | |
| 33 | 4812120928 | CONNECTION BLOCK | |
| 34 | 4700792512 | Steel plug threaded | |
| 35 | 4700500068 | Screw | |
| 36 | 4700791398 | Elbow 90, O-ring | |
| 37 | 4812113327 | Hydraulic oil filter | |
| 38 | 4700792338 | Adapter | |
| 39 | 4700904637 | Washer | |
| 40 | 4700508096 | Hexagon socket head cap screw | |
| 42 | 4700355869 | Spacer sleeve | |
| 43 | 4700902233 | Threaded stud | |
| 44 | 4700357112 | Cover plate | |
| 45 | 4700357111 | Rubber cloth | |
| 46 | 4700375616 | Spacer sleeve | |
| 47 | 4700586018 | Lock nut | |
| 48 | 4700904230 | Washer | |
| 49 | 4700921099 | Clamp | |
| 50 | 4812121778 | HYDRAULIC HOSE | |
| 51 | 4812121228 | Hydraulic hose | |
| 52 | 4812121779 | HYDRAULIC HOSE | |
| 53 | 4812121780 | HYDRAULIC HOSE | |
| 54 | 4812121780 | HYDRAULIC HOSE | |
| 55 | 4812121226 | Hydraulic hose | |
| 56 | 4812121226 | Hydraulic hose | |
| 57 | 4812121769 | Hydraulic hose | |
| 58 | 4812121782 | HYDRAULIC HOSE | |
| 59 | 4812121782 | HYDRAULIC HOSE | |
| 60 | 4812121783 | HYDRAULIC HOSE | |
| 61 | 4812121783 | HYDRAULIC HOSE | |
| 62 | 4812117062 | Hydraulic hose | |
| 63 | 4812117062 | Hydraulic hose | |
| 64 | 4812121463 | Bracket | |
| 65 | 4811000456 | Screw | |
| 67 | 4700416034 | Ball joint |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
