Каталог запасных частей к технике: DYNAPAC CC1300C. Drivers platform

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
6
9
11
13
13
13
13
20

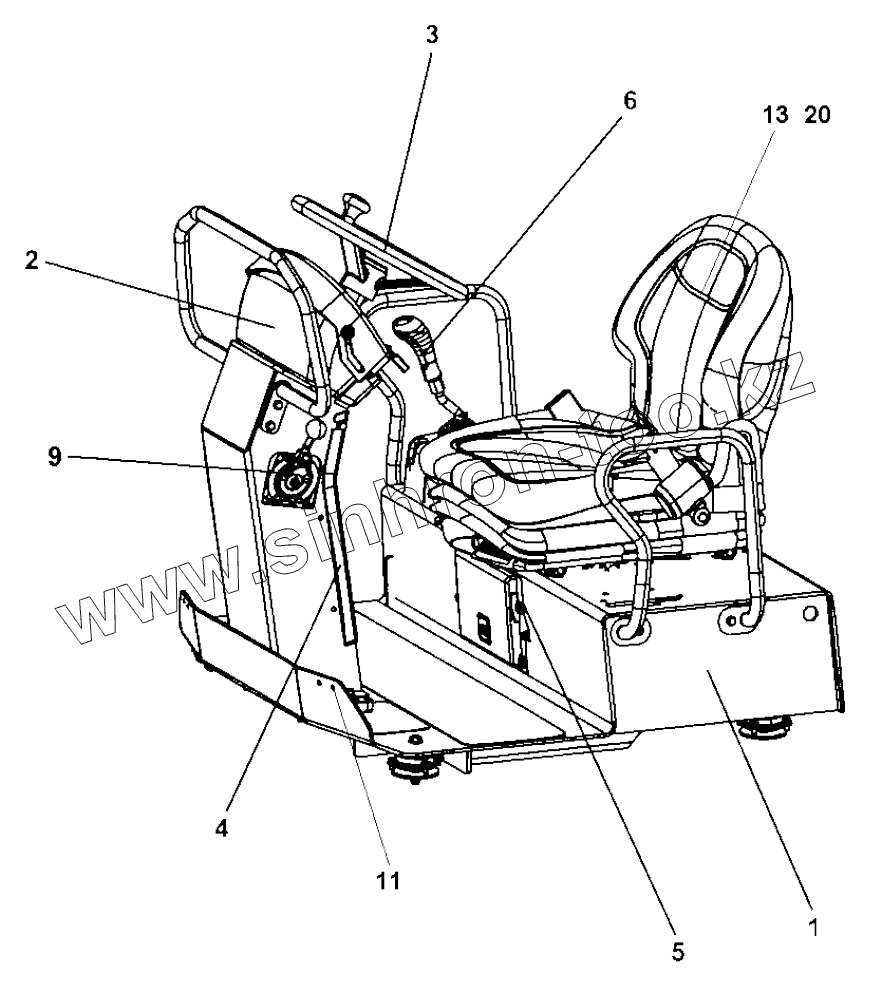

Позиция на иллюстрации Заводской номер детали Название детали
1 Platform module Platform module
2 Instrument panel module Instrument panel module
3 Steering wheel Steering wheel
4 control module control module
5 Standard ECU module Standard ECU module
6 Forward-Reverse control module Forward-Reverse control module
6 Forward-reverse control left Forward-reverse control left
8 Cover plate, Dual F&R-control left side Cover plate, Dual F&R-control left side
9 Throttle control, cpl Throttle control, cpl
11 Arm rests, seat belt, laterally adjusting Arm rests, seat belt, laterally adjusting
12 Step Step
13 Driver seat, Std Driver seat, Std
13 Driver's seat, without armrests Driver's seat, without armrests
13 Driver seat, Luxury Driver seat, Luxury
13 Driver seat, Std with armrests Driver seat, Std with armrests
14 Seat belt module Seat belt module
15 Seat belt module Seat belt module
16 Rear view mirror Rear view mirror
17 ROPS, foldable ROPS, foldable
18 Rops Rops
19 Canopy Canopy
20 4700348331 Seat cover
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
