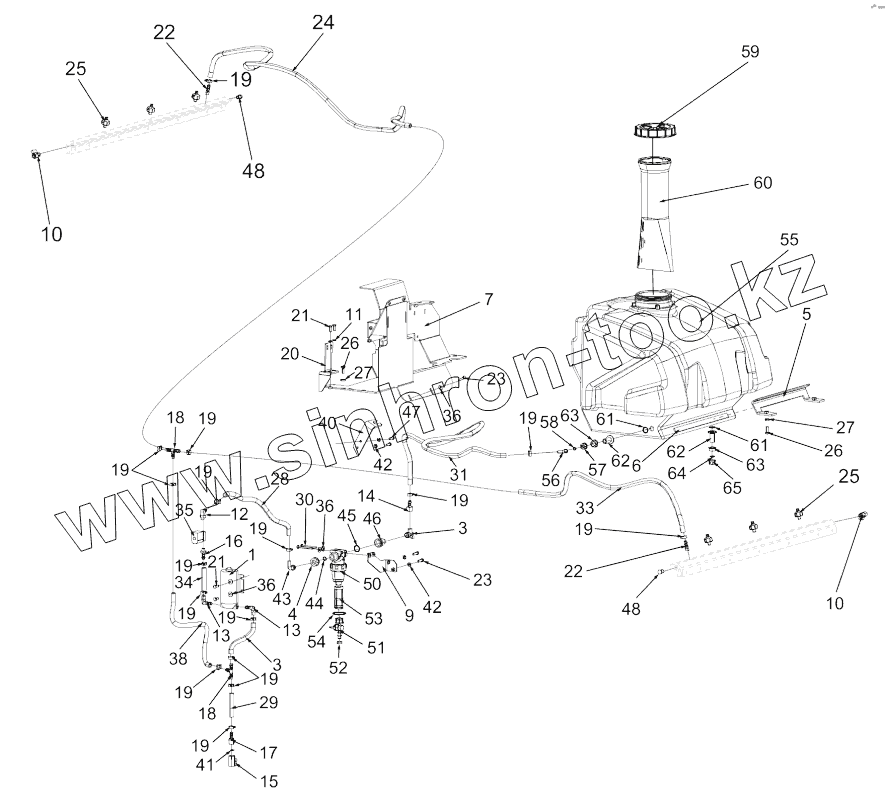

Каталог запасных частей к технике: DYNAPAC CC1300. Sprinkler system
4812124327
4812124327
4700160268
4700160268
4812124325
4812124325
4812124324
4812124324
4812124323
4812124323
1
3
3
3
3
3
3
4
5
6
7
9
10
10
11
12
13
13
14
15
16
17
18
18
18
19
19
19
19
19
19
19
19
19
19
19
19
19
20
21
21
21
21
22
22
23
23
24
25
25
26
26
27
27
28
29
30
30
31
33
34
35
36
36
36
38
40
41
42
42
43
44
45
46
47
48
48
50
51
52
53
54
55
56
57
58
59
60
61
61
62
62
63
63
64
65
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4812124327 | 4812124327 | Nozzle | |
| 4700160268 | 4700160268 | O-ring | |
| 4812124325 | 4812124325 | Gasket | |
| 4812124324 | 4812124324 | Strainer | |
| 4812124323 | 4812124323 | Cap, blue | |
| 1 | 4812113822 | Water pump | |
| 3 | 4812112831 | Ball valve | |
| 3 | 4812126907 | Ball valve | |
| 4 | 4700792779 | Swivel nut | |
| 5 | 4700357395 | Holder plate | |
| 6 | 4700926911 | Rubber strip | |
| 7 | 4812122001 | Heat protection | |
| 9 | 4812122413 | Bracket | |
| 10 | 4700233215 | Ball valve | |
| 11 | 4700904229 | Washer | |
| 12 | 4700901431 | Hose connection | |
| 13 | 4700923734 | Hose connection | |
| 14 | 4812112451 | Hose connection | |
| 15 | 4700925599 | Ball valve | |
| 16 | 4700901432 | Hose connection | |
| 17 | 4700924544 | Hose connection | |
| 18 | 4700923735 | Hose connection | |
| 19 | 4700313002 | Hose clamp | |
| 20 | 4812124835 | Bracket | |
| 21 | 4700500020 | Hex. screw | |
| 21 | 4700500021 | Hex. screw | |
| 22 | 4700791977 | Hose connection | |
| 23 | 4700500022 | Hex. screw | |
| 24 | 4812112074 | Plastic hose | |
| 25 | 4812124321 | Spraying nozzle, cpl | |
| 26 | 4700500028 | Screw | |
| 27 | 4700904557 | Washer | |
| 28 | 4812112074 | Plastic hose | |
| 29 | 4812112074 | Plastic hose | |
| 30 | 4700500190 | Screw | |
| 30 | 4700500090 | Screw | |
| 31 | 4812112074 | Plastic hose | |
| 32 | 4700901191 | Protective hose | |
| 33 | 4812112074 | Plastic hose | |
| 34 | 4812112074 | Plastic hose | |
| 35 | 4700287713 | Solenoid valve | |
| 36 | 4700904640 | Washer | |
| 37 | 4812112074 | Plastic hose | |
| 38 | 4812112074 | Plastic hose | |
| 40 | 4812122431 | Bracket | |
| 41 | 4700379753 | Gasket | |
| 42 | 4700904556 | Steel plain washer | |
| 43 | 4812111330 | Hose connection | |
| 44 | 4700480852 | O-ring 70 | |
| 45 | 4700160313 | O-ring | |
| 46 | 4812111331 | Reducer nipple | |
| 47 | 4700500021 | Hex. screw | |
| 48 | 4700791974 | Plug threaded | |
| 49 | 4812111325 | Water filter | |
| 50 | 4812110651 | Filter housing | |
| 51 | 4700379009 | Valve | |
| 52 | 4700791568 | Gasket | |
| 53 | 4700791949 | Filter element | |
| 54 | 4700791959 | O-ring | |
| 55 | 4812122414 | Water tank, cpl | |
| 56 | 4700393542 | Hose connection | |
| 57 | 4700392227 | Swivel nut | |
| 58 | 4700792600 | O-ring 70 | |
| 59 | 4700359003 | Tank Cap | |
| 60 | 4700358846 | Strainer | |
| 61 | 4700160219 | O-ring | |
| 62 | 4700392230 | Grommet | |
| 63 | 4700392232 | Nut | |
| 64 | 4700392229 | Plane gasket | |
| 65 | 4811000168 | Cap |
