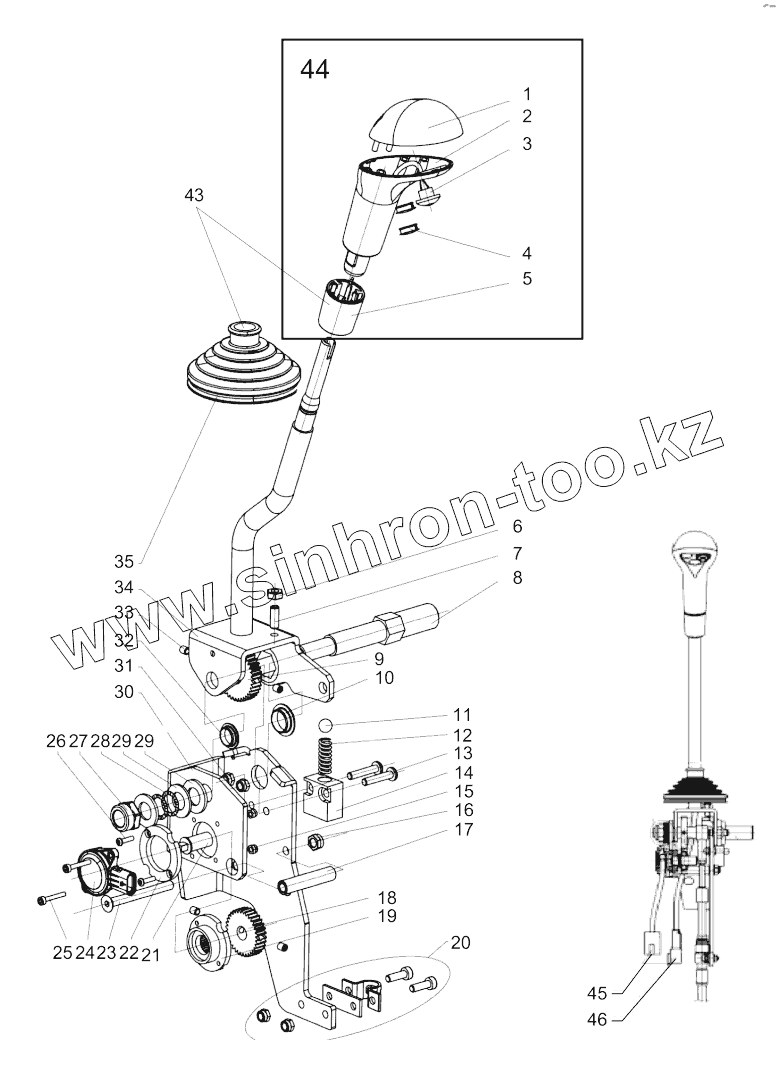

Каталог запасных частей к технике: DYNAPAC CC1300. 4812122939 Forward & Reverse control
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
26
27
28
29
29
30
31
32
33
34
35
43
43
43
44
44
44
44
44
44
45
46
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4812156558 | Handle top | |
| 2 | 4812156559 | Handle | |
| 3 | 4812156560 | Push button switch with cable | |
| 4 | 4812156561 | Protection plug | |
| 5 | 4812156562 | Sleeve | |
| 6 | 4812159290 | Nut | |
| 7 | 4812159291 | Screw | |
| 8 | 4812156563 | Central shaft | |
| 9 | 4812156564 | Gear | |
| 10 | 4812158258 | Bushing | |
| 11 | 4812156565 | Sphere | |
| 12 | 4812156566 | Spring | |
| 13 | 4812160082 | Screw | |
| 14 | 4812160379 | Spring house | |
| 15 | 4812160083 | Nut M3 | |
| 16 | 4812160084 | Nut M6 | |
| 17 | 4812156568 | Spacer | |
| 18 | 4812156569 | Gear | |
| 19 | 4812156570 | Internal spacer | |
| 20 | 4700902189 | Bracket | |
| 21 | 4812156571 | Shaft | |
| 22 | 4812156572 | External spacer | |
| 23 | 4812159197 | Screw | |
| 24 | 4812156490 | Potentiometer | |
| 24 | 4812160381 | Cable | |
| 25 | 4812159198 | Screw | |
| 26 | 4812159199 | Screw | |
| 27 | 4812159251 | Lock nut | |
| 28 | 4812156573 | Sealing | |
| 29 | 4812158260 | Washer | |
| 30 | 4812156574 | Bracket | |
| 31 | 4812160087 | Nut | |
| 32 | 4812158259 | Bushing | |
| 33 | 4812160380 | Screw | |
| 34 | 4812160263 | Lever | |
| 35 | 4812156576 | Bellow | |
| 43 | 4812157556 | Bellows kit | |
| 43 | 4812156562 | Sleeve | |
| 43 | 4812156576 | Bellow | |
| 44 | 4812158267 | Handle top + Button kit | |
| 44 | 4812156558 | Handle top | |
| 44 | 4812156559 | Handle | |
| 44 | 4812156560 | Push button switch with cable | |
| 44 | 4812156561 | Protection plug | |
| 44 | 4812156562 | Sleeve | |
| 45 | 4812160593 | Connector | |
| 46 | 4812160594 | Connector |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
