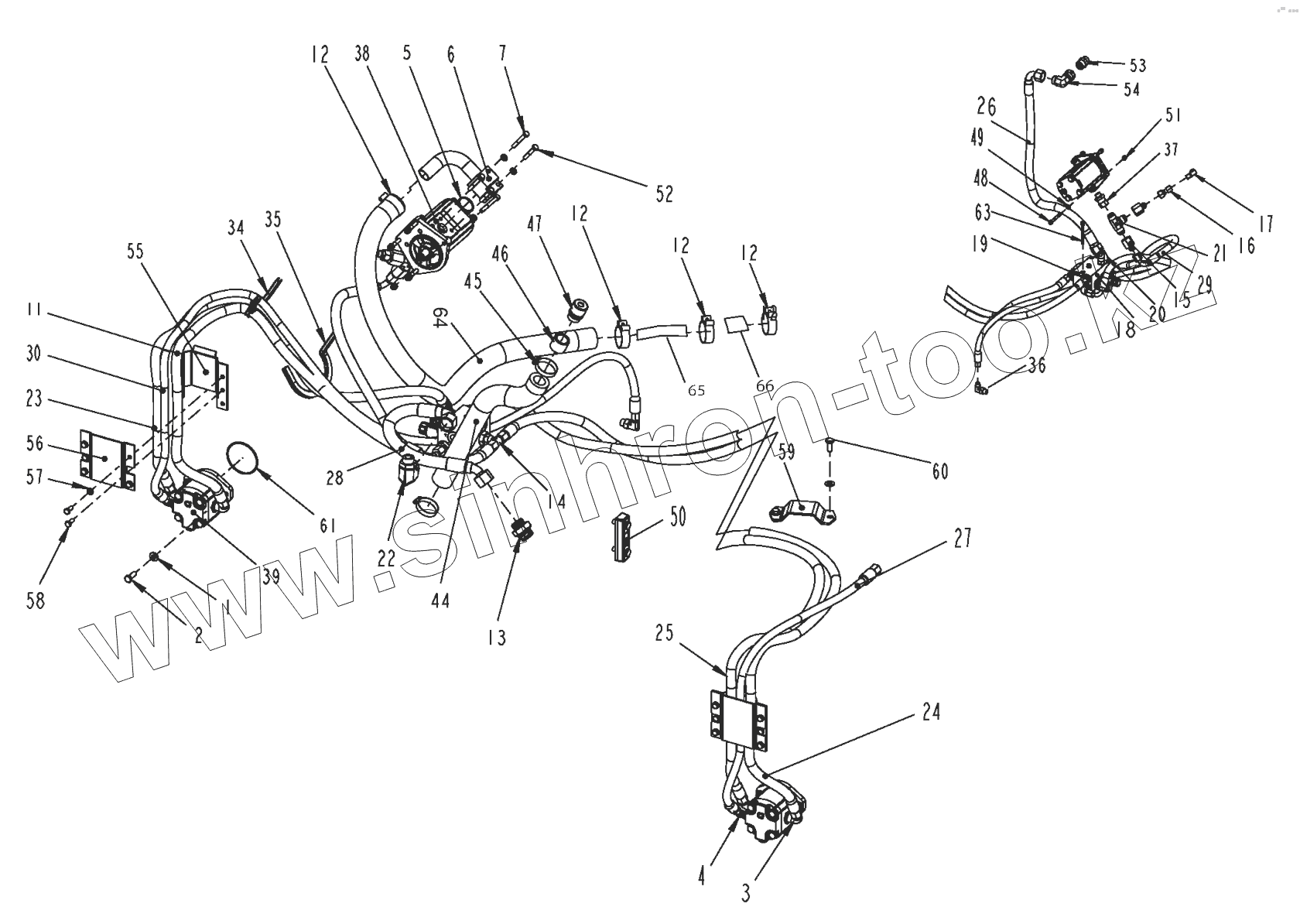

Каталог запасных частей к технике: DYNAPAC CC125. Vibration system
1
2
3
4
5
6
7
11
12
12
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
34
35
36
37
38
39
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
63
64
65
66
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4700904230 | Washer | |
| 2 | 4700508029 | Cylinder screw | |
| 3 | 4700334238 | Elbow 90 o-ring | |
| 4 | 4700334563 | Adapter | |
| 5 | 4700160016 | O-ring | |
| 6 | 4812105979 | flange | |
| 7 | 4700500067 | Screw | |
| 11 | 4812106751 | Hydraulic hose | |
| 12 | 4700927101 | Hose clamp | |
| 13 | 4700791822 | Straight connector orfs | |
| 14 | 4700234953 | Connection-T with nut | |
| 15 | 4700234667 | Reducer | |
| 16 | 4812104679 | Reducer | |
| 17 | 4700923405 | Measuring nipple | |
| 18 | 4812105961 | Vibration Block | |
| 19 | 4700334116 | Straight o-ring connector | |
| 20 | 4700791761 | Elbow | |
| 21 | 4700334129 | Adapter | |
| 22 | 4700791698 | Elbow 90, O-ring with swivel | |
| 23 | 4812106751 | Hydraulic hose | |
| 24 | 4812106753 | Hydraulic hose | |
| 25 | 4812106752 | Hydraulic hose | |
| 26 | 4812106754 | Hydraulic hose | |
| 27 | 4812106393 | Hose | |
| 28 | 4812106022 | Hydraulic hose | |
| 29 | 4812105960 | Hydraulic hose | |
| 30 | 4812106546 | Hydraulic hose | |
| 34 | 4700902379 | Edge trim | |
| 35 | 4700902379 | Edge trim | |
| 36 | 4700334235 | Elbow 90 | |
| 37 | 4700330438 | Straight connector | |
| 38 | 4812106847 | Hydraulic pump | |
| 39 | 4812106593 | Hydraulic motor | |
| 44 | 4700373478 | Rubber hose | |
| 45 | 4700313008 | Hose clamp | |
| 46 | 4700357139 | Connector | |
| 47 | 4700357138 | Ventilating filter | |
| 48 | 4700508006 | Screw | |
| 49 | 4700904556 | Steel plain washer | |
| 50 | 4700989151 | Oil level glass | |
| 51 | 4700586003 | Hexagon lock nut | |
| 52 | 4700500024 | Screw | |
| 53 | 4700904728 | Adapter | |
| 54 | 4700904584 | Connector elbow 90 ORFS | |
| 55 | 4812106404 | Hose clamp | |
| 56 | 4812106405 | Hose clamp | |
| 57 | 4700904229 | Washer | |
| 58 | 4700500053 | Hex. screw | |
| 59 | 4812106564 | Hose clamp | |
| 60 | 4700500028 | Screw | |
| 61 | 4700160031 | O-ring | |
| 63 | 4700508078 | Screw | |
| 64 | 4812105988 | Suction hose | |
| 65 | 4812106850 | pipe | |
| 66 | 4812106849 | Hydraulic hose |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
