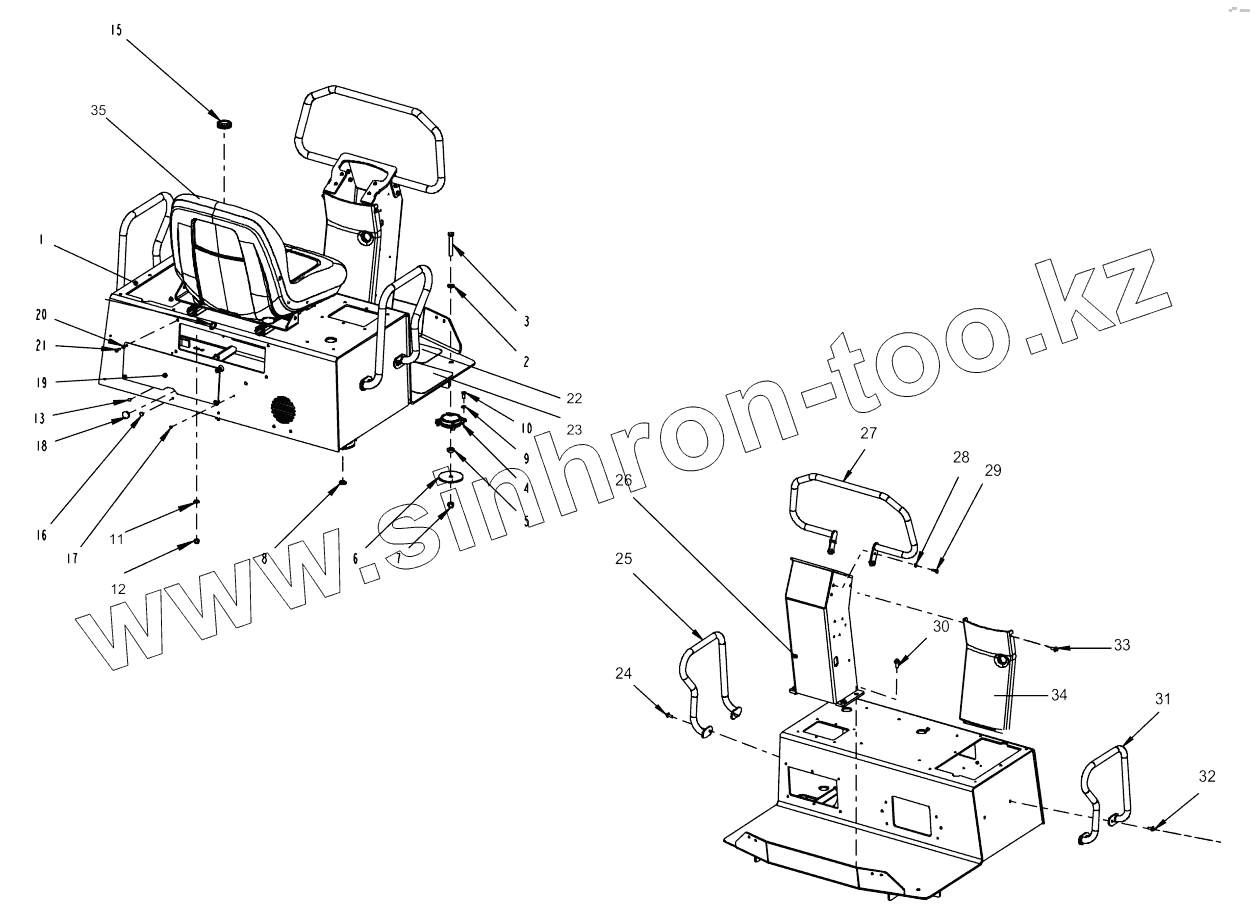

Каталог запасных частей к технике: DYNAPAC CC125. Platform module
1
2
3
4
5
6
7
8
9
10
11
12
13
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4812105537 | Platform | |
| 2 | 4700904231 | Washer | |
| 3 | 4700500117 | Screw | |
| 4 | 4700902797 | Shock absorber | |
| 5 | 4700902892 | Washer | |
| 6 | 4700358232 | Washer | |
| 7 | 4700586019 | Lock nut | |
| 8 | 4700904703 | Plain washer | |
| 9 | 4700904229 | Washer | |
| 10 | 4700500019 | Hex. screw | |
| 11 | 4700904229 | Washer | |
| 12 | 4700586003 | Hexagon lock nut | |
| 13 | 4700926215 | Protective plug | |
| 15 | 4812105316 | Holow grommet | |
| 16 | 4700902919 | Plug | |
| 17 | 4700902804 | Plug | |
| 18 | 4700904225 | Plug | |
| 19 | 4812106568 | Sheet metal part | |
| 20 | 4700904228 | Steel plain washer | |
| 21 | 4700791524 | Screw, | |
| 22 | 4700357605 | Protection | |
| 23 | 4700357604 | Protection | |
| 24 | 4700500505 | Screw | |
| 25 | 4812113106 | Hand rail Right | |
| 26 | 4812105539 | Steering column | |
| 27 | 4812106580 | Handrail | |
| 28 | 4700904556 | Steel plain washer | |
| 29 | 4700500053 | Hex. screw | |
| 30 | 4700500509 | Screw | |
| 31 | 4812113107 | Hand rail Left | |
| 32 | 4700500505 | Screw | |
| 33 | 4700500505 | Screw | |
| 34 | 4700387226 | Column cover | |
| 35 | 4812114466 | Drivers seat, cpl | |
| 36 | 4700379636 | Seat switch |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
