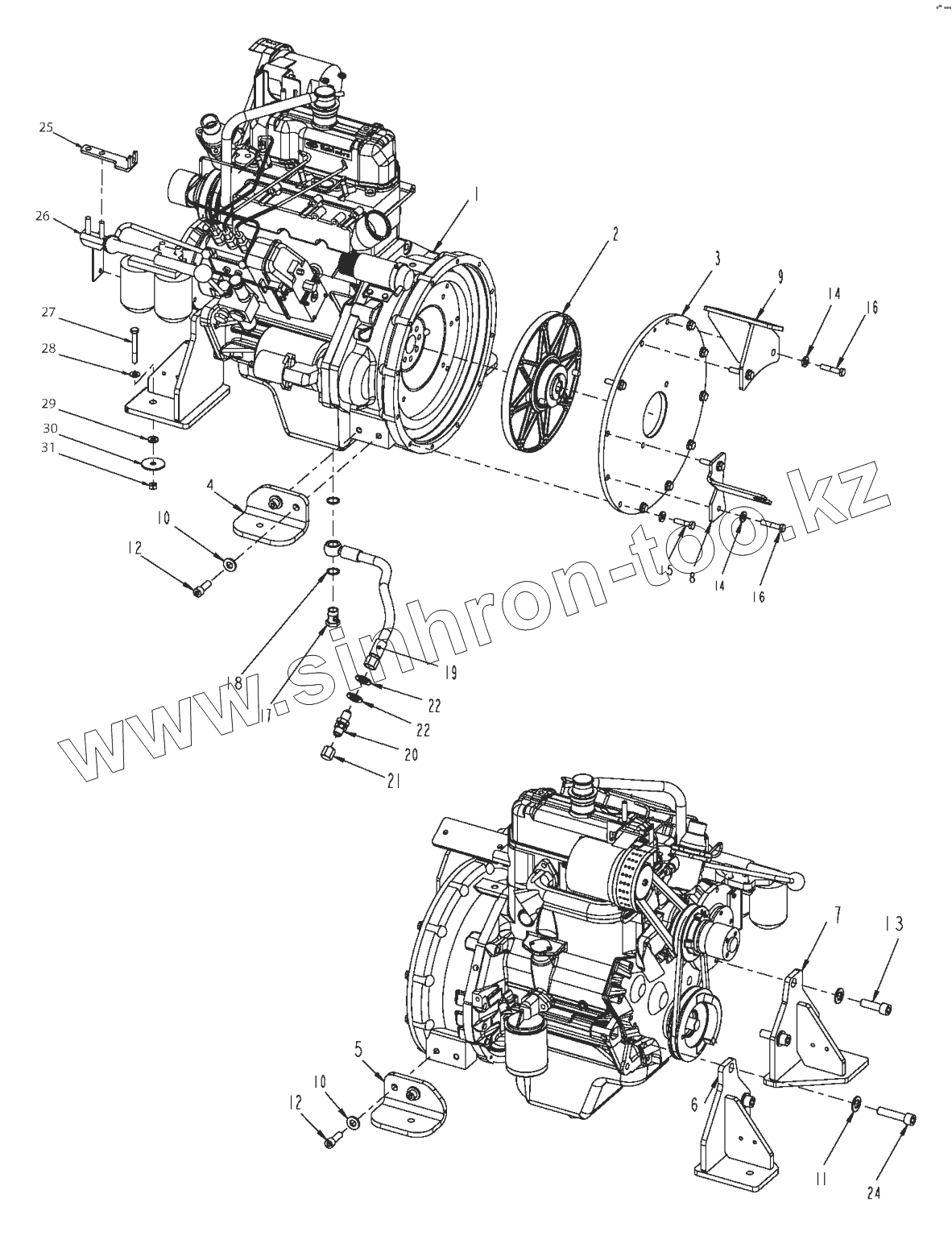

Каталог запасных частей к технике: DYNAPAC CC125. Engine Module
1
2
3
4
5
6
7
8
9
10
10
11
12
12
13
14
14
15
15
16
17
18
19
20
21
22
22
24
25
26
27
28
29
30
31
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4812105532 | Diesel engine | |
| 2 | 4812105980 | Engine coupling | |
| 3 | 4812105933 | Flywheel plate | |
| 4 | 4812105661 | Engine bracket | |
| 5 | 4812105982 | Engine bracket | |
| 6 | 4812105662 | Engine mounting bracket | |
| 7 | 4812105665 | Engine mounting bracket | |
| 8 | 4812106063 | Sheet metal part | |
| 9 | 4812105680 | Bracket | |
| 10 | 4700904214 | Washer | |
| 11 | 4700904793 | Steel plain washer | |
| 12 | 4812106768 | Hex.socket head cap screw UNC | |
| 13 | 4812106769 | Hex.socket head cap screw UNC | |
| 14 | 4700904557 | Washer | |
| 15 | 4700500212 | Screw | |
| 16 | 4700900329 | Screw | |
| 17 | 4812106082 | Hollow screw | |
| 18 | 4700330333 | Copper washer | |
| 19 | 4812105894 | Engine oil drain hose | |
| 20 | 4700230515 | Connector | |
| 21 | 4700330383 | Cap JIC, steel | |
| 22 | 4700904233 | Steel plain washer | |
| 24 | 4812106837 | Hex.socket head cap screw UNC | |
| 25 | 4812106162 | Sheet metal part | |
| 26 | 4812106163 | Bracket | |
| 27 | 4812106767 | Hexagon head screw | |
| 28 | 4700904230 | Washer | |
| 29 | 4700904557 | Washer | |
| 30 | 4812105951 | Snubbing washer | |
| 31 | 4700570006 | Hex. nut |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
