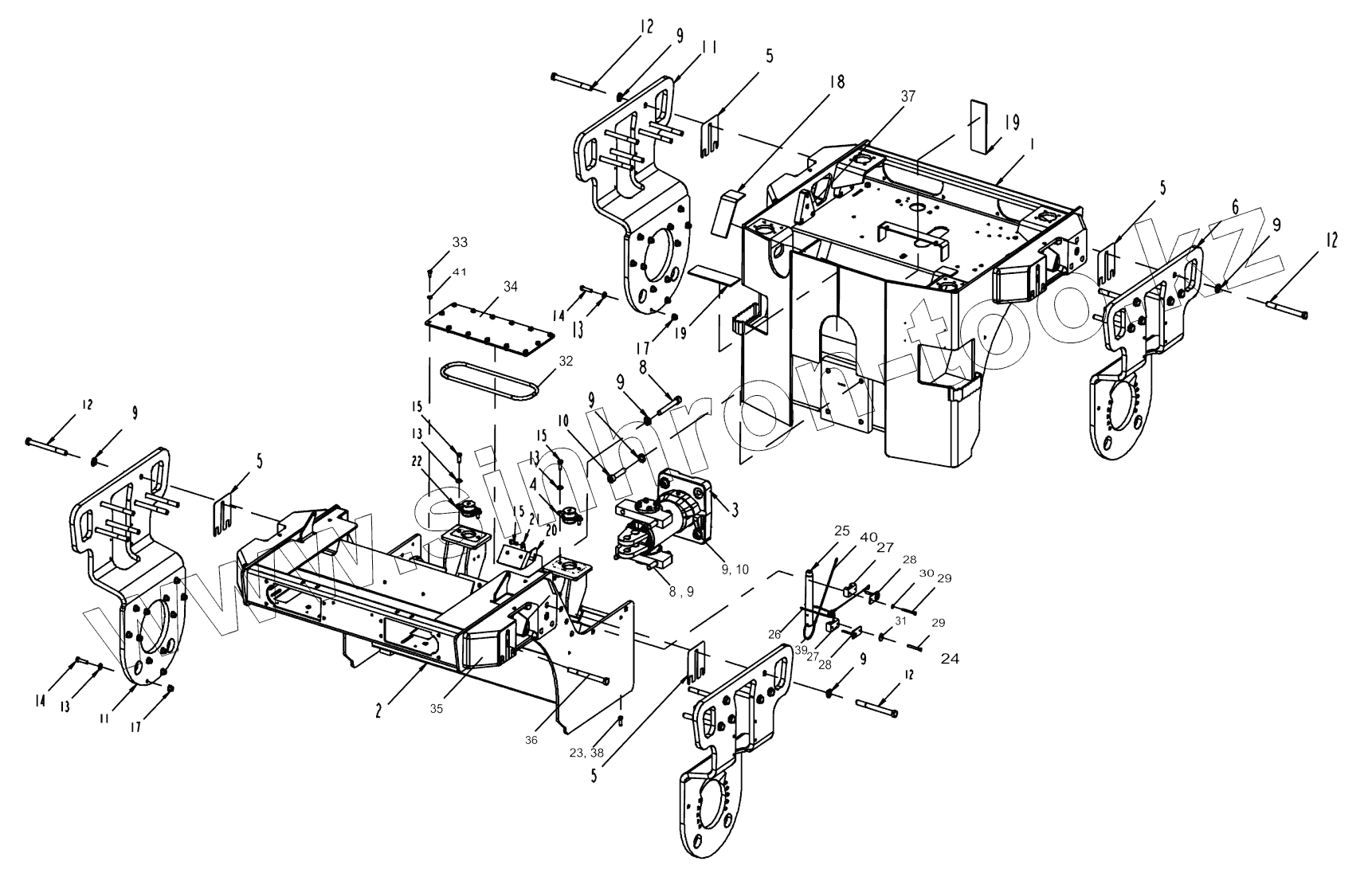

Каталог запасных частей к технике: DYNAPAC CC1250. Frame
1
2
3
4
5
5
5
5
6
8
8
9
9
9
9
9
9
9
9
10
10
11
11
12
12
12
12
13
13
13
13
14
14
15
15
15
17
17
18
19
19
20
21
22
23
24
25
26
27
27
28
28
29
29
30
31
32
33
34
35
36
37
38
39
40
41
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4812105223 | Rear frame | |
| 2 | 4812105236 | Front frame | |
| 3 | 4812120871 | Steering hitch | |
| 4 | 4812105556 | Shock mount | |
| 5 | 4812105560 | Shim | |
| 6 | 4812105559 | Fork | |
| 8 | 4700902100 | Screw | |
| 9 | 4700904232 | Steel plain washer | |
| 10 | 4700927396 | Screw | |
| 11 | 4812105247 | Fork | |
| 12 | 4700500074 | Screw | |
| 13 | 4700904230 | Washer | |
| 14 | 4700500240 | Screw | |
| 15 | 4700500028 | Screw | |
| 17 | 4700902287 | Nut | |
| 18 | 4700357459 | Rubber cloth | |
| 19 | 4700357459 | Rubber cloth | |
| 20 | 4812106096 | Bracket | |
| 21 | 4812122654 | Steel plain washer | |
| 22 | 4812105557 | Shock mount | |
| 23 | 4700334205 | Straight connector | |
| 24 | SteeringhitchLock | Steering hitch Lock | |
| 25 | 4700357486 | Shaft | |
| 26 | 4700357489 | Hair pin | |
| 27 | 4700902171 | Clamp | |
| 28 | 4700902172 | Cover plate | |
| 29 | 4700500016 | Screw | |
| 30 | 4700600004 | Washer | |
| 31 | 4700615076 | Washer | |
| 32 | 4700349880 | O-ring | |
| 33 | 4700500019 | Hex. screw | |
| 34 | 4700349879 | Cover | |
| 35 | 4700357216 | Spacer block | |
| 36 | 4812106510 | Screw | |
| 37 | 4700393540 | Threaded plate | |
| 38 | 4700330383 | Cap JIC, steel | |
| 39 | 4700357488 | Spring | |
| 40 | 4700343775 | Wire | |
| 41 | 4700904229 | Washer |
