Каталог запасных частей к технике: DYNAPAC CC1200CC. Propulsion system From A017369
1
1
2
3
3
4
4
5
6
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
18
19
20
20
21
21
22
22
23
23
24
25
25
26
26
26
27
28
29
31
32
33
34
35
36
37
37
38
39
40
40
41
41
42
42
43
43
44
45
46
47
47
48
49
49
50
50
51
51
52
53
54

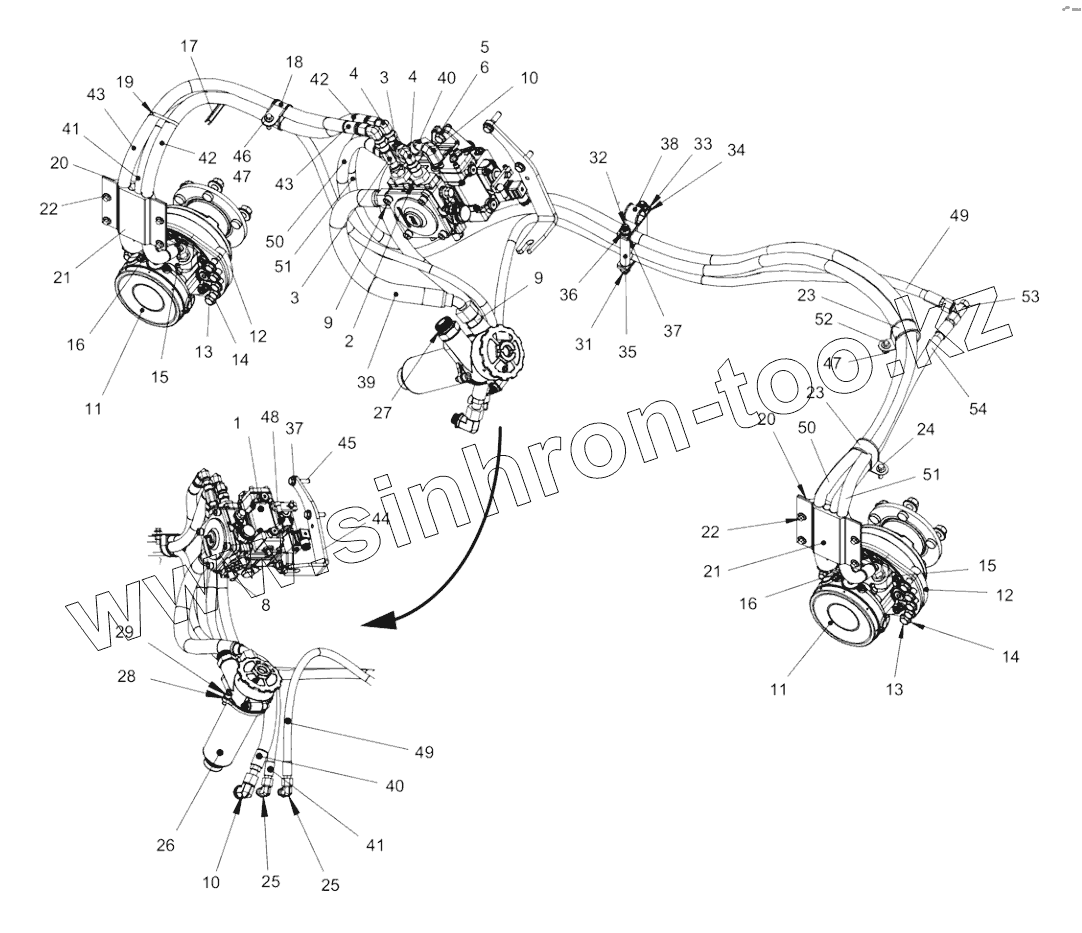

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4812161797 | Stop solenoid | |
| 1 | 4812120091 | Hydraulic pump | |
| 2 | 4700791408 | Straight o-ring connector | |
| 3 | 4700791798 | Adapter | |
| 4 | 4700791745 | Elbow 90, O-ring with swivel | |
| 5 | 4700904703 | Plain washer | |
| 6 | 4700500037 | Hex. screw | |
| 8 | 4700923405 | Measuring nipple | |
| 9 | 4700904728 | Adapter | |
| 10 | 4700792332 | Elbow 90 orfs | |
| 11 | Hydraulicmotor | Hydraulic motor, Cpl | |
| 12 | 4812110490 | Holder | |
| 13 | 4700500269 | Screw | |
| 14 | 4700904231 | Washer | |
| 15 | 4700791410 | Straight o-ring connector | |
| 16 | 4700791828 | Adapter | |
| 17 | 4700902379 | Edge trim | |
| 18 | 4700921022 | Hose clamp | |
| 19 | 4700313102 | Cable ties | |
| 20 | 4700371313 | Hose clamp | |
| 21 | 4700371314 | Hose clamp | |
| 22 | 4700901832 | Screw | |
| 23 | 4700921119 | Pipe clamp | |
| 24 | 4700902041 | Screw | |
| 25 | 4700791398 | Elbow 90, O-ring | |
| 26 | 4812113328 | Hydraulic oil filter element | |
| 26 | 4812113327 | Hydraulic oil filter | |
| 26 | 4812156882 | Cover | |
| 27 | 4700792338 | Adapter | |
| 28 | 4700904637 | Washer | |
| 29 | 4700508096 | Hexagon socket head cap screw | |
| 31 | 4700355869 | Spacer sleeve | |
| 32 | 4700902233 | Threaded stud | |
| 33 | 4700357112 | Cover plate | |
| 34 | 4700357111 | Rubber cloth | |
| 35 | 4700357113 | Spacer sleeve | |
| 36 | 4700586018 | Lock nut | |
| 37 | 4700904230 | Washer | |
| 38 | 4700921099 | Clamp | |
| 39 | 4812120885 | Hydraulic hose | |
| 40 | 4812121228 | Hydraulic hose | |
| 41 | 4700484092 | Hydraulic hose | |
| 42 | 4700484316 | Hydraulic hose | |
| 43 | 4700484316 | Hydraulic hose | |
| 44 | 4812121463 | Bracket | |
| 45 | 4811000456 | Screw | |
| 46 | 4700500506 | Screw | |
| 47 | 4700902286 | Lock nut | |
| 48 | 4700416034 | Ball joint | |
| 49 | 4700483764 | Hydraulic hose | |
| 50 | 4812121826 | Hydraulic hose | |
| 51 | 4812121827 | Hydraulic hose | |
| 52 | 4700500505 | Screw | |
| 53 | 4700791546 | T-connector | |
| 54 | 4812120886 | Hydraulic hose |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
