Каталог запасных частей к технике: DYNAPAC CC1200CC. Forward-Reverse control module To A015617

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CA1400 (2016) CA2500D (2016) CA2500D (2018) CA2500D-PD (2018) CA250D (2011) CA252D (2008) CA2800D (2017) CA3500D (2016) CA4000D (2017) CA4000D (2020) CA4600D (2019) CA5500D (2015) CA610PD (2014) CA6500 (2018) CC1000 (2019) CC1100CC (2015) CC1200C Plus (2015) CC1200C VI (2018) CC1200CC (2018) CC125 (2015) CC1250 (2015) CC1300 (2018) CC1300C (2015) CC1300C (2016) CC2200 (2018) CC2200 (2020) CC2300C (2018) CC3300 (2018) CC4000 VI (2018) CC4200C VI (2020) CC5200C (2018) CC6200 VI (2020) CC800 (2019) CC900 (2018) CC900S (2018) CG2300 (2018) CP142 (2015) CP275 (2014) Dynapac CA1500 (2017) Dynapac CA2500 (2012) Dynapac CA302D (2008) Dynapac CA302D (2010) Dynapac CA5000D (2017) Dynapac CC142 (2009) Dynapac CC2200C (2015) Dynapac CC224HF (2012) Dynapac CC322 (2008) Dynapac CC422 (2010) Dynapac CC5200 (2014) Dynapac CC5200 (2017) Dynapac CC5200 (2017) Dynapac CC5200 VI (2017) Dynapac CC800 (2013) Dynapac CC800 (2014) Dynapac F1200C/CS (2018) Dynapac F1200CS/CS (2018) Dynapac F1800C (2018) Dynapac F181C (2010) Dynapac PL2000LS (2010) Dynapac PL2000LS (2010) Dynapac PL2000S (2010) Dynapac PL2000S (2010) Dynapac SCC1300 (2014) Dynapac SD2500C (ч. 1) (2018) Dynapac SD2500C (ч. 2) (2018) Dynapac SD2550C (ч. 1) (2018) Dynapac SD2550C (ч. 2) (2018) F2500C (2018) SD2550CS (2015)

Схема > Не выбрано 4812156265 Service kit 50h 4812159563 Service kit 50h Plus 4812156288 Service kit 250 / 750 h 4812159564 Service kit 250/750h Plus 4812156266 Service kit 500h 4812159565 Service kit 500h Plus 4812156267 Service kit 1000 h 4812159566 Service kit 1000h Plus 4812159571 Start-up kit 4700938908 Eccentric shaft kit 4700938892 Drum rotation kit 4700938885 Shock absorber kit, drum 4700938575 Steering hitch kit 4812159961 Scraper kit Keys Fuses Frame, front To 0A014775 Frame, rear To 0A014775 Frame, front From 0A014776 Frame, rear From 0A014776 Scraper Scrapers, spring loaded (option) Sprinkler system Towing device (option) 4700358975 Steering hitch (To 0A014837 incl. 0A014840-0A014888) 4812120871 Steering hitch (From 0A014838 excl. 0A014840-0A014888) Protective plate, front lights (Option) Drum Engine room Engine module 4812110881 Diesel engine Kubota D1703 M-E3B (26 kW) Exhaust system Fan Air filter Water cooler To 0A015094 Water cooler From 0A015095 4812118163 Engine hood, cpl To 0A015756 Engine hood, cpl From 0A015757-xA018328 Engine hood, cpl From xA018329 Casing Cooler hoses Air hoses Fuel hoses Fuel system Propulsion system To A017368 Hydraulic pump To A017368 4812119250 Hydraulic motor To A017368 4812120089 Propulsion system From A017369 4812120558 Hydraulic motor From A017369 4812120091 Hydraulic pump From A017369 Vibration system To 0A014951 4812160957 Seal kit To 0A014951 Vibration system From 0A014952 Steering system 4812120737 Hydraulic cylinder Brake system To A017368 Brake system From A017369 Flow divider (option) Vibration shut-off Front drum (option) Rotating group, valves, charge pump Horn module Battery module Battery disconnector Cable harness To 0A015028 incl. 0A015030, 0A015032-0A015033, 0A015035-0A015036, 0A015038-0A015041, 0A015043-0A015044 Cable harness From 0A015029 excl. 0A015030, 0A015032-0A015033, 0A015035-0A015036, 0A015038-0A015041, 0A015043-0A015044 To xA019769 Cable harness From xA019770 Working lights Working lights front Working light rear Working light (option) rear Casing rear Cover plate rear Rotating beacon for ROPS (option) Back-up alarm Drivers platform Platform module To 0A013742 incl. 0A013744-0A013745, 0A013747-0A013749, 0A013751, 0A013753-0A013760 Platform mount To 0A013742 incl. 0A013744-0A013745, 0A013747-0A013749, 0A013751, 0A013753-0A013760 Platform module From 0A013743 excl. 0A013744-0A013745, 0A013747-0A013749, 0A013751, 0A013753-0A013760 Platform module From 0A013743 excl. 0A013744-0A013745, 0A013747-0A013749, 0A013751, 0A013753-0A013760 Platform module From xx019397 Platform module From xx019397 Instrument panel module Steering wheel Control module Standard ECU module To xA019769 Standard ECU From xA019770 Forward-Reverse control module To A015617 4812121384 Forward & Reverse control To A015617 Cover plate, Dual F&R-control, left side To A015617 4812124935 Modification kit control cable To A015617 Forward-Reverse control module From A015618 To A017368 4812122939 Forward & Reverse control From A015618 To A017368 Forward-Reverse control module From A017369 Throttle control, cpl Throttle control cpl, Dual frequency To 0A014939 Throttle control cpl, Dual frequency (option) From 0A014940 Seat laterally adjusting Driver's seat, without armrests Seat belt module 3dm Seat belt module 2dm Rops (option) ROPS, foldable Decals Plain Dynapac decals, kit FleetLink module 4812013038 GPS module

1

2

3

4

5

6

7

8

8-1

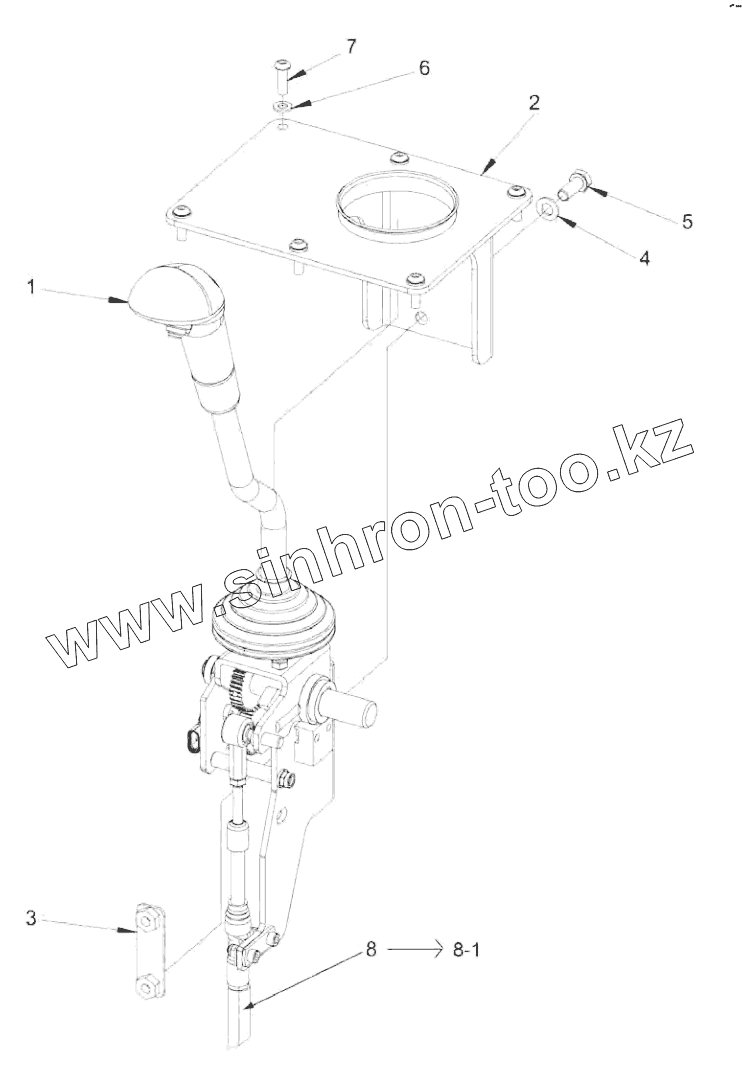

Позиция на иллюстрации	Заводской номер детали		Название детали
1	4812121384		Forward and reverse control handle
2	4812121386		Bracket
3	4812117990		Bracket
4	4700904229		Washer
5	4700500053		Hex. screw
6	4700904228		Steel plain washer
7	4700791524		Screw,
8	Cable		Cable
8-1	Controlcable		Modification kit control cable

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
