Каталог запасных частей к технике: DYNAPAC CC1200C VI. Vibration, leak rear with acc valves

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
22
23
24
25
28
29
29
30
31
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
56
57
58
59
60
61
62
63
64
65
66
67
68
69

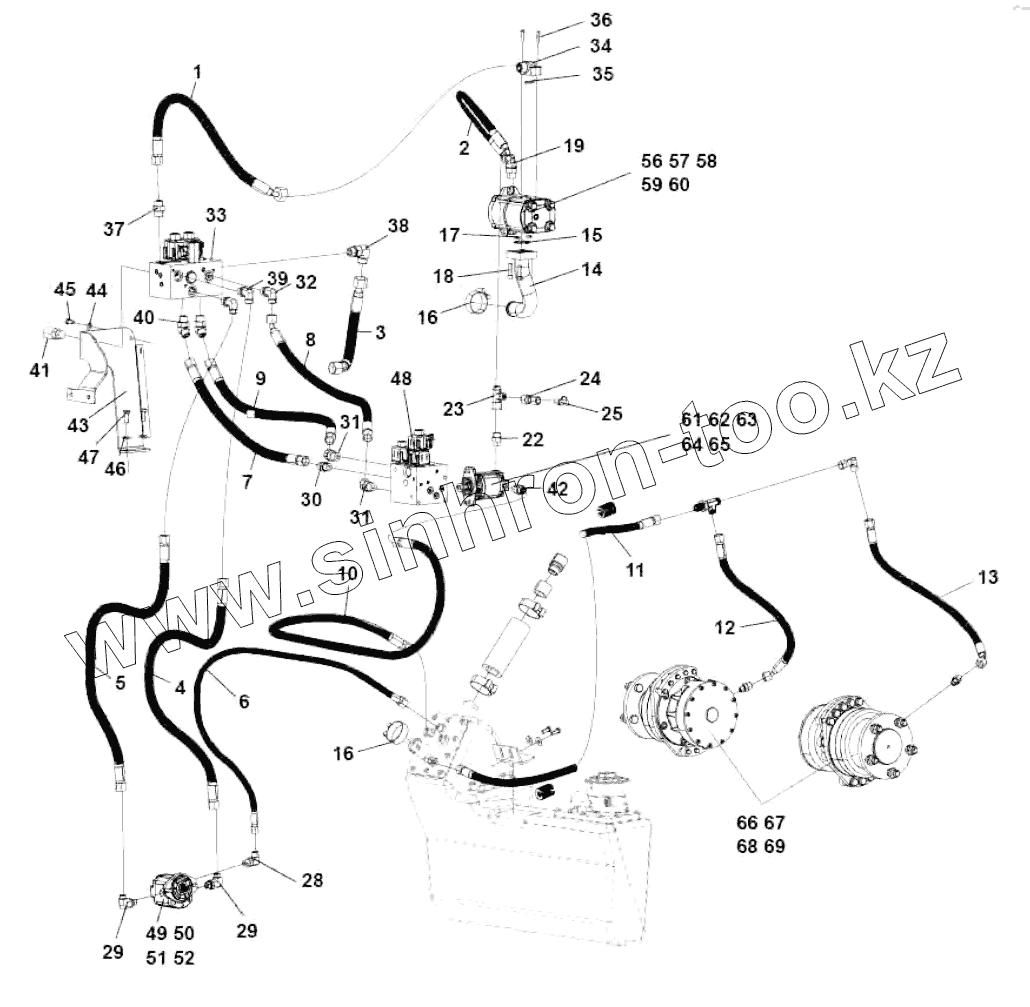

Позиция на иллюстрации Заводской номер детали Название детали
1 4812125730 Hydraulic hose
2 4812125731 Hydraulic hose
3 4812125732 Hydraulic hose
4 4812125733 Hydraulic hose
5 4812125734 Hydraulic hose
6 4812125735 Hydraulic hose
7 4812125974 Hydraulic hose
8 4812125975 Hydraulic hose
9 4812125974 Hydraulic hose
10 4700483906 Hydraulic hose
11 4812126734 Hydraulic hose
12 4812126735 Hydraulic hose
13 4700483591 Hydraulic hose
14 4812125469 Flange connector
15 4700160016 O-ring
16 4700927101 Hose clamp
17 4700904556 Steel plain washer
18 4700508048 Hexagon socket head cap screw
19 4700791416 Elbow 45, O-ring
20 4700791808 Elbow adapter 45
21 0570702503 Straight connector
22 4700791404 Straight o-ring connector
23 4700791414 T-connection, O-ring with swivel
24 4700791847 Straight connector
25 4700923405 Measuring nipple
26 4700791416 Elbow 45, O-ring
27 4812114492 Bulkhead union
28 4700791397 Elbow 90, O-ring
29 4700791699 Elbow 90°
30 4700791799 Straight connector orfs
31 4700791796 Elbow 45, O-ring with swivel
32 4700791841 Elbow 90 orfs
33 4812125749 Hydraulic valve
34 4812113633 Flange connector
35 4700904774 O-ring
36 4700508027 Screw
37 4700791410 Straight o-ring connector
38 4700791843 Elbow 90, O-ring with swivel
39 4700791841 Elbow 90 orfs
40 4700791796 Elbow 45, O-ring with swivel
41 4700900229 Measuring fitting
42 4700791744 Adapter
43 4812125501 Bracket
44 4700904229 Washer
45 4700500053 Hex. screw
46 4700904557 Washer
47 4700500028 Screw
48 4812125681 Hydraulic valve
49 4812118172 Hydraulic motor
50 4700603018 Washer
51 4700508029 Cylinder screw
52 4700160031 O-ring
56 4812127309 Hydraulic pump
57 4700379458 Gasket
58 4700500078 Hex. screw
59 4700904230 Washer
60 4700902287 Nut
61 4812125795 Hydraulic motor
62 4700904229 Washer
63 4700500021 Hex. screw
64 4700904735 Steel plain washer
65 4700508002 Screw
66 4700375632 Hydraulic motor, propulsion
67 4812110490 Holder
68 4700904231 Washer
69 4700500269 Screw
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
