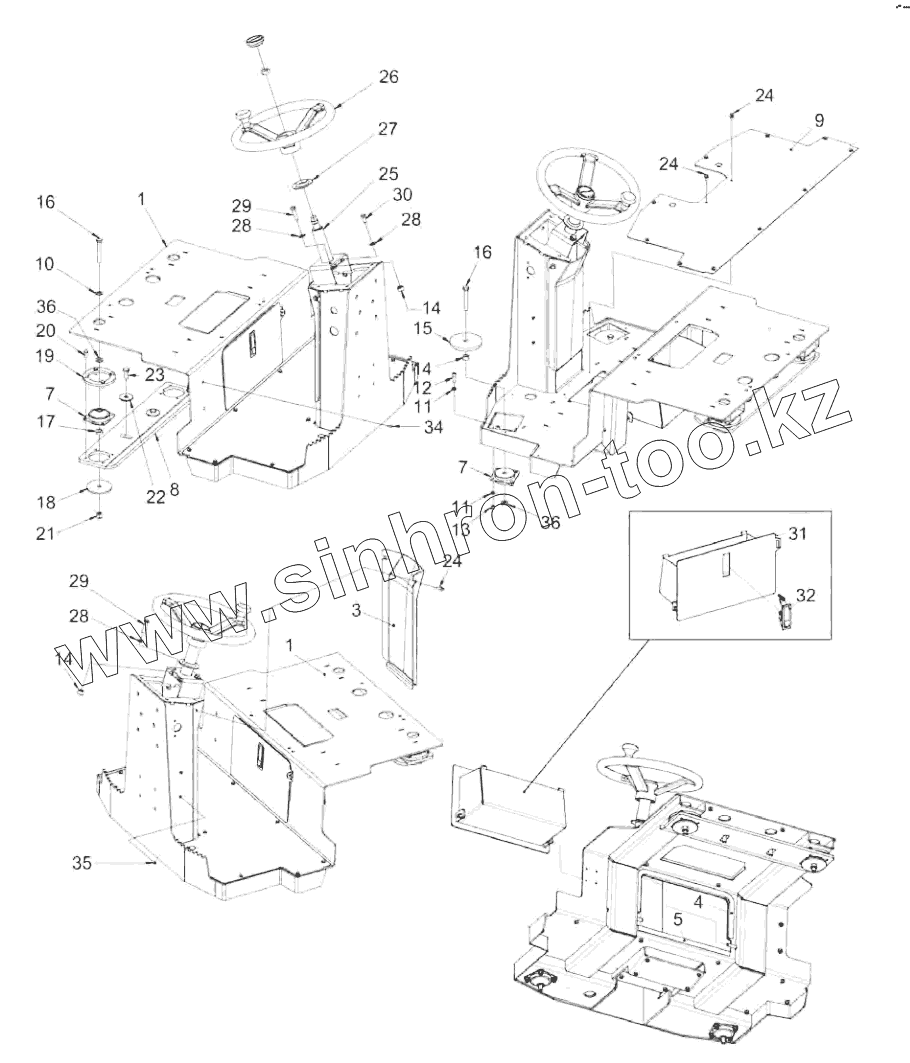

Каталог запасных частей к технике: DYNAPAC CC1200C VI. Platform
1
1
3
4
5
7
7
8
9
10
11
11
12
13
14
14
14
15
16
16
17
18
19
20
21
22
23
24
24
24
25
26
27
28
28
28
29
29
30
31
32
34
35
36
36
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Platform | Platform | |
| 3 | 4812125902 | Front cover | |
| 4 | 4700902379 | Edge trim | |
| 5 | 4700902379 | Edge trim | |
| 7 | 4700902797 | Shock absorber | |
| 8 | 4812125852 | Bracket | |
| 9 | 4812124793 | Floor plate | |
| 10 | 4700904231 | Washer | |
| 11 | 4700904229 | Washer | |
| 12 | 4700508019 | Cylinder screw | |
| 13 | 4700586003 | Hexagon lock nut | |
| 14 | 4700355869 | Spacer sleeve | |
| 15 | 4812125887 | Washer | |
| 16 | 4700500196 | Screw | |
| 17 | 4700902892 | Washer | |
| 18 | 4700358232 | Washer | |
| 19 | 4812125886 | Backup ring | |
| 20 | 4700500053 | Hex. screw | |
| 21 | 4700586019 | Lock nut | |
| 22 | 4700791165 | Washer | |
| 23 | 4700500046 | Hex. head screw | |
| 24 | 4700902989 | Hexagon screw with flange | |
| 25 | 4700902123 | Steering column | |
| 26 | 4700372964 | Steering wheel | |
| 27 | 4700928830 | Rubber washer | |
| 28 | 4700904230 | Washer | |
| 29 | 4700500240 | Screw | |
| 30 | 4700500048 | Hex. screw | |
| 31 | 4812125851 | Box | |
| 32 | 4812125915 | Lock | |
| 33 | 4700901832 | Screw | |
| 34 | 4700926215 | Protective plug | |
| 35 | 4700904206 | Screw | |
| 36 | 4700904703 | Plain washer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
