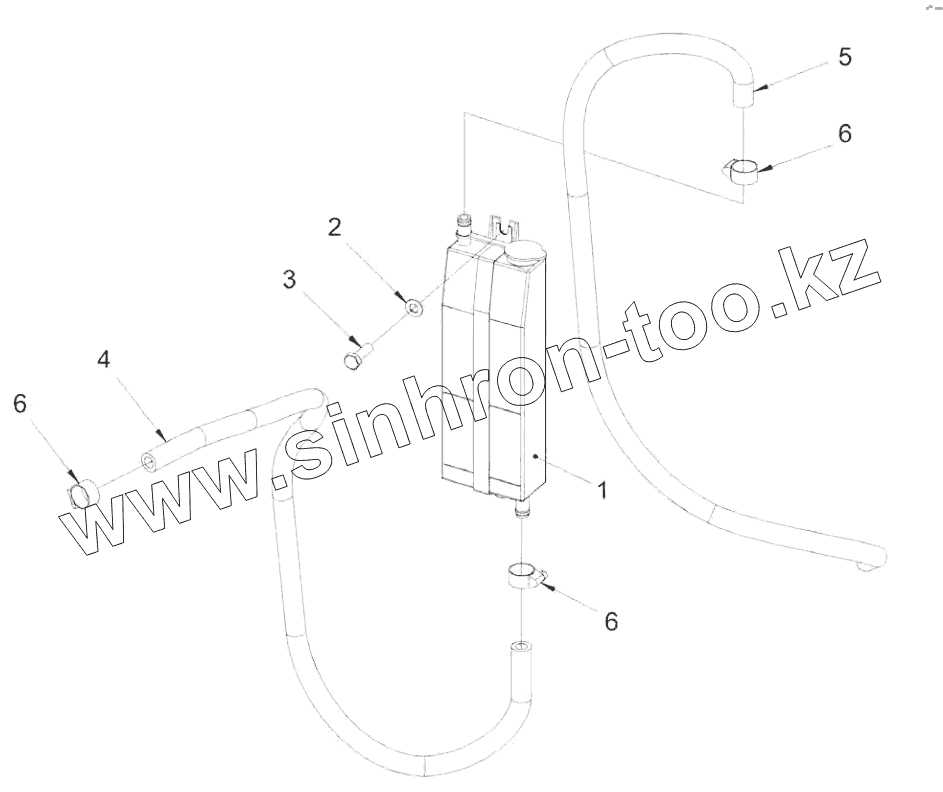

Каталог запасных частей к технике: DYNAPAC CC1200C VI. Expansion tank

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CA1400 (2016) CA2500D (2016) CA2500D (2018) CA2500D-PD (2018) CA250D (2011) CA252D (2008) CA2800D (2017) CA3500D (2016) CA4000D (2017) CA4000D (2020) CA4600D (2019) CA5500D (2015) CA610PD (2014) CA6500 (2018) CC1000 (2019) CC1100CC (2015) CC1200C Plus (2015) CC1200C VI (2018) CC1200CC (2018) CC125 (2015) CC1250 (2015) CC1300 (2018) CC1300C (2015) CC1300C (2016) CC2200 (2018) CC2200 (2020) CC2300C (2018) CC3300 (2018) CC4000 VI (2018) CC4200C VI (2020) CC5200C (2018) CC6200 VI (2020) CC800 (2019) CC900 (2018) CC900S (2018) CG2300 (2018) CP142 (2015) CP275 (2014) Dynapac CA1500 (2017) Dynapac CA2500 (2012) Dynapac CA302D (2008) Dynapac CA302D (2010) Dynapac CA5000D (2017) Dynapac CC142 (2009) Dynapac CC2200C (2015) Dynapac CC224HF (2012) Dynapac CC322 (2008) Dynapac CC422 (2010) Dynapac CC5200 (2014) Dynapac CC5200 (2017) Dynapac CC5200 (2017) Dynapac CC5200 VI (2017) Dynapac CC800 (2013) Dynapac CC800 (2014) Dynapac F1200C/CS (2018) Dynapac F1200CS/CS (2018) Dynapac F1800C (2018) Dynapac F181C (2010) Dynapac PL2000LS (2010) Dynapac PL2000LS (2010) Dynapac PL2000S (2010) Dynapac PL2000S (2010) Dynapac SCC1300 (2014) Dynapac SD2500C (ч. 1) (2018) Dynapac SD2500C (ч. 2) (2018) Dynapac SD2550C (ч. 1) (2018) Dynapac SD2550C (ч. 2) (2018) F2500C (2018) SD2550CS (2015)

Схема > Не выбрано 4812161674 Service kit, 50h 4812161675 Service kit, 50h Plus 4812160462 Service kit, 250 / 750h 4812161677 Service kit, 250 / 750h Plus 4812161678 Service kit, 500h 4812161679 Service kit, 500h Plus 4812161680 Service kit, 1000h 4812161681 Service kit, 1000h Plus 4700938908 Eccentric shaft kit 4700938892 Drum rotation kit 4812162273 Shock absorber kit, drum 4812162274 Scraper kit CC1200 VI Keys Fuses Forks, front Scraper, fixed Scraper module, wheels Spring loaded scraper (Front) Spring loaded scraper (Rear) Steering hitch Front frame Rear frame Sprinkler pump Emulsion tank module Water tank module Drum Wheel module Engine module 4812125634 Diesel engine (D1703-IDI-M-E3B) (26 kW) Exhaust system Air cleaner Air hose Engine hood, cpl. Bracket Coupling Expansion tank Coolant hose module Fuel hoses Cooler Fuel tank Battery holder Fan Hydraulic oil tank Belt guard Bracket module Hydraulic, Oil tank & Cooler Vibration system, external vibration valve - common Vibration system, external vibration valve - without acc valves 4812160957 Seal kit Vibration, leak rear Vibration, leak rear with acc valves Hydraulic motor Hydraulic pump module 4812127310 Hydraulic pump Hydraulic pump module 4812127309 Hydraulic pump Propulsion system 4812126969 Hydraulic pump 4700375632 Hydraulic motor, propulsion 4812120558 Hydraulic motor Steering system 4812125395 Hydraulic cylinder Brake system Edge cutter Hydraulic cylinder module 4812125907 Hydraulic cylinder Flow divider - CC1200 Chip spreader (option) Circuit board and fuses Backup alarm Cable harness Cable harness - Quick release disconnector Cable harness - Battery disconnector Cable harness - Working lights / ROPS Cable harness - Driving lights Cable harness - Flow divider Cable harness, Sprinkler Cable harness - Edge cutter, Chip spreader Cable harness - Seat heater Cable harness - Rotating beacon Cable harness - Working lights incl. Rotating beacon Cable harness - Working lights, tank x2 Driving lights (option) Working lights (option) Registration plate light Platform Single lifting point Hand rail Control panel Water tank Emulsion tank Canopy ROPS Slideable seat Fixed seat Rear view mirror Throttle control Control module (Single 1-button) Control module (Dual, 2 buttons) - Left side Control module (Single 2-buttons) Controle module (Single 3-buttons) - Right side Driver's seat, without armrests Comfort seat with heat module Comfort seat without heat module ECU module Cup and can holder Decals Edge cutter Cutting disc Pressing roller Hydraulic cylinder Chip spreader Fire extinguisher SMV-sign Fleetlinkg GPS module GPS module 4812013038 GPS module Bracket (GPS)

1

2

3

4

5

6

6

6

Позиция на иллюстрации	Заводской номер детали		Название детали
1	4812125796		Expansion tank
2	4700904229		Washer
3	4700500021		Hex. screw
4	4812122244		Coolant hose
5	4812122244		Coolant hose
6	4700313003		Hose clamp

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
