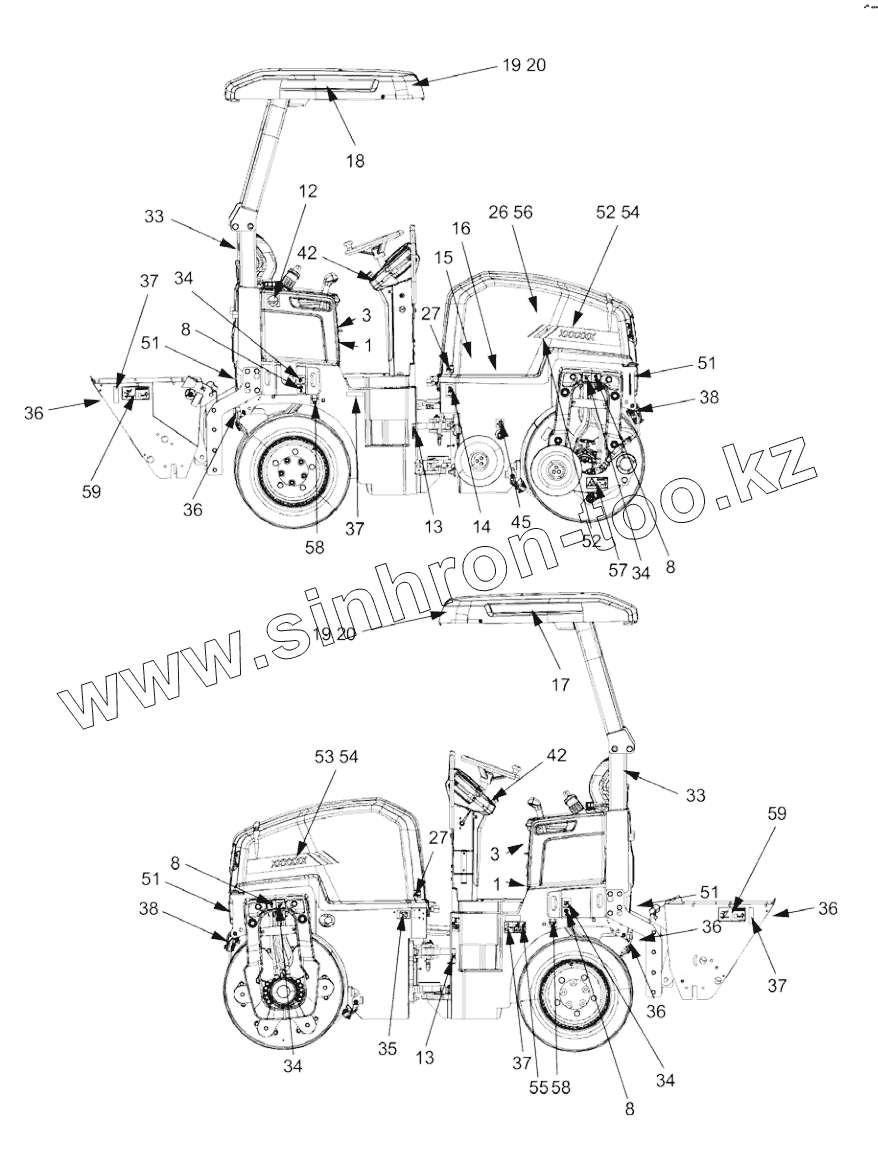

Каталог запасных частей к технике: DYNAPAC CC1200C VI. Decals

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
3
3
8
8
8
8
12
13
13
14
15
16
17
18
19
19
20
20
26
27
27
33
33
34
34
34
34
35
36
36
36
36
36
37
37
37
37
38
38
42
42
45
51
51
51
51
52
52
53
54
54
55
56
56
57
58
58
59
59
Позиция на иллюстрации Заводской номер детали Название детали
1 4700903459 Decal SAFETY
3 4700903425 Safety decal READ SAFETY INSTRUCTIONS
7 4700904083 Safety decal
8 4700357587 Label, lift point
12 4700991657 Decal WATER
13 4700903422 Safety decal CRUSH AREA
14 4700991658 Decal FUEL
14-2 4811000345 Decal ULTRA LOW SULFUR FUEL ONLY
15 4811000344 Decal, low sulfur
16 4700792772 Decal BIO HYDRAULIC OIL PANOLIN
17 4812128236 Decal, cosmetic
18 4812128221 Decal, cosmetic
19 4812127713 Decal "FAYAT DYNAPAC", 280-WH
20 4812128167 Decal, cosmetic
26 4700903423 Safety label, Rotating engine components
27 4700903424 Safety decal HOT SURFACE
28 4700272372 Decal HYDRAULIC OIL
33 4700908229 Safety decal
34 4700382751 Decal SECURING POINT/TIE DOWN
35 4700904835 Decal BATTERY POWER
36 4700377742 Reflector, red
37 4700377744 Reflector, yellow
38 4700377743 Reflector, white
40 4700791274 Decal Sound power level 104 dB
42 4811000128 Decal
45 4700272373 Decal HYDRAULIC LEVEL
51 4812127714 Decal FAYAT DYNAPAC 350 WH
52 4812127729 Decal GRAPHIC ELEMENTRight
53 4812127728 Decal GRAPHIC ELEMENT Left
54 4812127830 Decal "MODEL CODE" CC1200
55 4812125363 Safety decal RISK OF CRUSHING
56 4812161669 Service kit decal
56 4812161670 Service kit decal
57 4700904083 Safety decal
58 4812116992 Decal TYRE PRESSURE
59 4811000080 Safety decal
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
