Каталог запасных частей к технике: DYNAPAC CC1200C VI. Coolant hose module
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
CA1400 (2016)
CA2500D (2016)
CA2500D (2018)
CA2500D-PD (2018)
CA250D (2011)
CA252D (2008)
CA2800D (2017)
CA3500D (2016)
CA4000D (2017)
CA4000D (2020)
CA4600D (2019)
CA5500D (2015)
CA610PD (2014)
CA6500 (2018)
CC1000 (2019)
CC1100CC (2015)
CC1200C Plus (2015)
CC1200C VI (2018)
CC1200CC (2018)
CC125 (2015)
CC1250 (2015)
CC1300 (2018)
CC1300C (2015)
CC1300C (2016)
CC2200 (2018)
CC2200 (2020)
CC2300C (2018)
CC3300 (2018)
CC4000 VI (2018)
CC4200C VI (2020)
CC5200C (2018)
CC6200 VI (2020)
CC800 (2019)
CC900 (2018)
CC900S (2018)
CG2300 (2018)
CP142 (2015)
CP275 (2014)
Dynapac CA1500 (2017)
Dynapac CA2500 (2012)
Dynapac CA302D (2008)
Dynapac CA302D (2010)
Dynapac CA5000D (2017)
Dynapac CC142 (2009)
Dynapac CC2200C (2015)
Dynapac CC224HF (2012)
Dynapac CC322 (2008)
Dynapac CC422 (2010)
Dynapac CC5200 (2014)
Dynapac CC5200 (2017)
Dynapac CC5200 (2017)
Dynapac CC5200 VI (2017)
Dynapac CC800 (2013)
Dynapac CC800 (2014)
Dynapac F1200C/CS (2018)
Dynapac F1200CS/CS (2018)
Dynapac F1800C (2018)
Dynapac F181C (2010)
Dynapac PL2000LS (2010)
Dynapac PL2000LS (2010)
Dynapac PL2000S (2010)
Dynapac PL2000S (2010)
Dynapac SCC1300 (2014)
Dynapac SD2500C (ч. 1) (2018)
Dynapac SD2500C (ч. 2) (2018)
Dynapac SD2550C (ч. 1) (2018)
Dynapac SD2550C (ч. 2) (2018)
F2500C (2018)
SD2550CS (2015)
Схема
>
Не выбрано
4812161674 Service kit, 50h
4812161675 Service kit, 50h Plus
4812160462 Service kit, 250 / 750h
4812161677 Service kit, 250 / 750h Plus
4812161678 Service kit, 500h
4812161679 Service kit, 500h Plus
4812161680 Service kit, 1000h
4812161681 Service kit, 1000h Plus
4700938908 Eccentric shaft kit
4700938892 Drum rotation kit
4812162273 Shock absorber kit, drum
4812162274 Scraper kit CC1200 VI
Keys
Fuses
Forks, front
Scraper, fixed
Scraper module, wheels
Spring loaded scraper (Front)
Spring loaded scraper (Rear)
Steering hitch
Front frame
Rear frame
Sprinkler pump
Emulsion tank module
Water tank module
Drum
Wheel module
Engine module
4812125634 Diesel engine (D1703-IDI-M-E3B) (26 kW)
Exhaust system
Air cleaner
Air hose
Engine hood, cpl.
Bracket
Coupling
Expansion tank
Coolant hose module
Fuel hoses
Cooler
Fuel tank
Battery holder
Fan
Hydraulic oil tank
Belt guard
Bracket module
Hydraulic, Oil tank & Cooler
Vibration system, external vibration valve - common
Vibration system, external vibration valve - without acc valves
4812160957 Seal kit
Vibration, leak rear
Vibration, leak rear with acc valves
Hydraulic motor
Hydraulic pump module
4812127310 Hydraulic pump
Hydraulic pump module
4812127309 Hydraulic pump
Propulsion system
4812126969 Hydraulic pump
4700375632 Hydraulic motor, propulsion
4812120558 Hydraulic motor
Steering system
4812125395 Hydraulic cylinder
Brake system
Edge cutter
Hydraulic cylinder module
4812125907 Hydraulic cylinder
Flow divider - CC1200
Chip spreader (option)
Circuit board and fuses
Backup alarm
Cable harness
Cable harness - Quick release disconnector
Cable harness - Battery disconnector
Cable harness - Working lights / ROPS
Cable harness - Driving lights
Cable harness - Flow divider
Cable harness, Sprinkler
Cable harness - Edge cutter, Chip spreader
Cable harness - Seat heater
Cable harness - Rotating beacon
Cable harness - Working lights incl. Rotating beacon
Cable harness - Working lights, tank x2
Driving lights (option)
Working lights (option)
Registration plate light
Platform
Single lifting point
Hand rail
Control panel
Water tank
Emulsion tank
Canopy
ROPS
Slideable seat
Fixed seat
Rear view mirror
Throttle control
Control module (Single 1-button)
Control module (Dual, 2 buttons) - Left side
Control module (Single 2-buttons)
Controle module (Single 3-buttons) - Right side
Driver's seat, without armrests
Comfort seat with heat module
Comfort seat without heat module
ECU module
Cup and can holder
Decals
Edge cutter
Cutting disc
Pressing roller
Hydraulic cylinder
Chip spreader
Fire extinguisher
SMV-sign
Fleetlinkg GPS module
GPS module
4812013038 GPS module
Bracket (GPS)
1
2
3
4
5
5
5
5
5
5
6
7
8

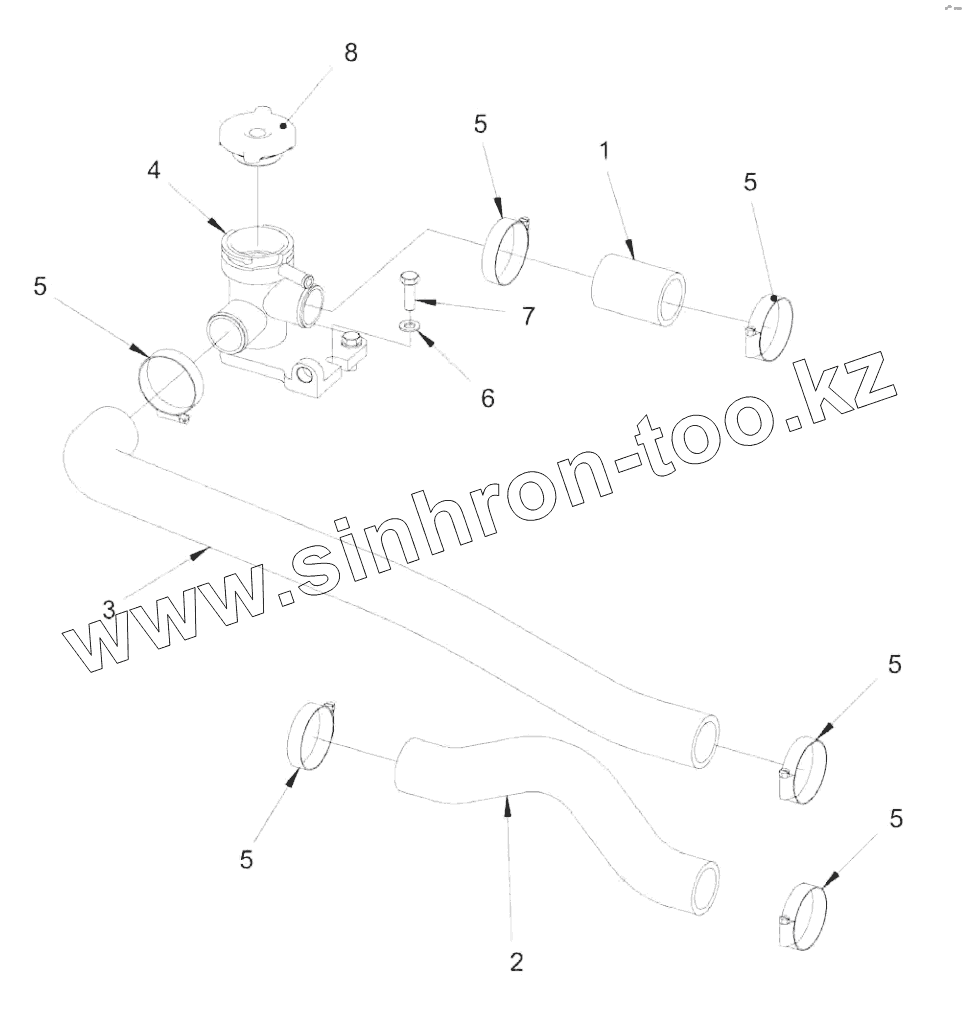

Позиция на иллюстрации
Заводской номер детали
Название детали
1
4812125526
Cooler hose
2
4812125516
Cooler hose
3
4812125517
Cooler hose
4
4812125661
Filling pipe
5
4700313007
Hose clamp
6
4700904229
Washer
7
4700500021
Hex. screw
8
4812125508
Cap
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
