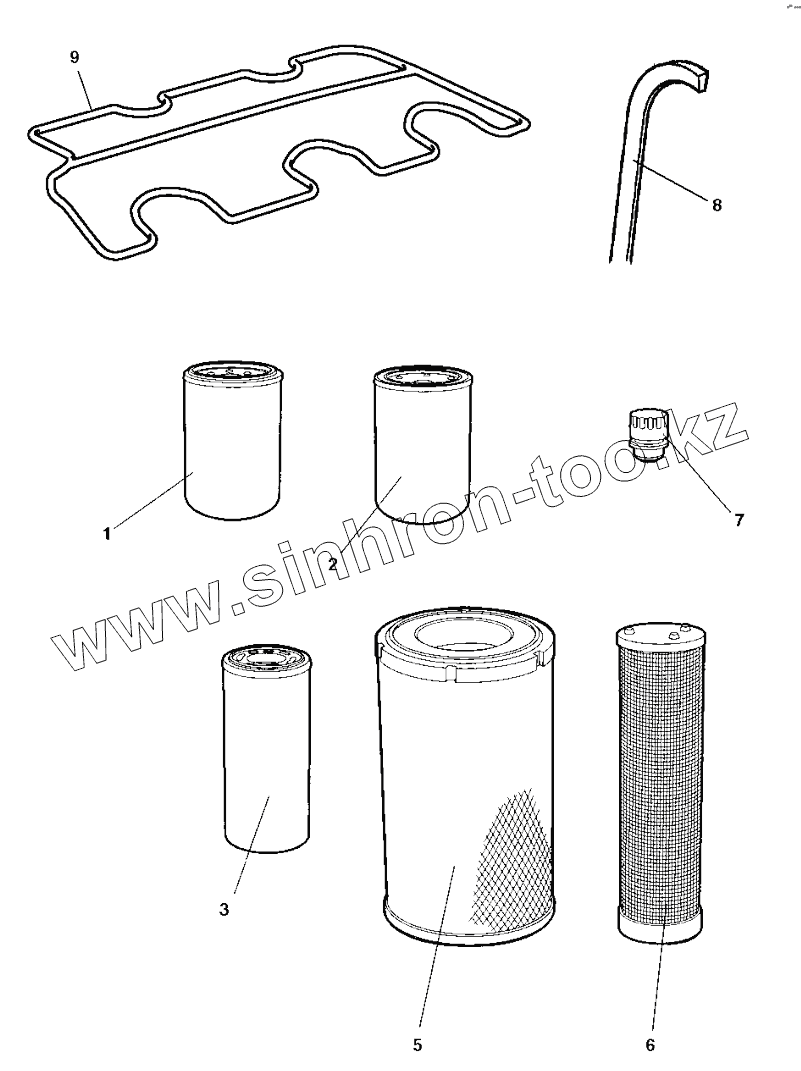

Позиция на иллюстрации	Заводской номер детали		Название детали
4812161681	4812161681		Service kit
1	4812160480		Engine oil filter element
2	4812156263		Fuel filter element
3	4812156264		Pre-fuel filter element
4	4812156260		V-belt
5	4812113328		Hydraulic oil filter element
6	4812161586		Air filter, main
7	4812161587		Air filter element, Safety
8	4812156261		Valve cover gasket
9	4700357138		Ventilating filter
10	4812161855		Dynapac Engine oil 200, 5 Liter/1.32 Gallon
11	4812030096		Dynapac Roller Grease
