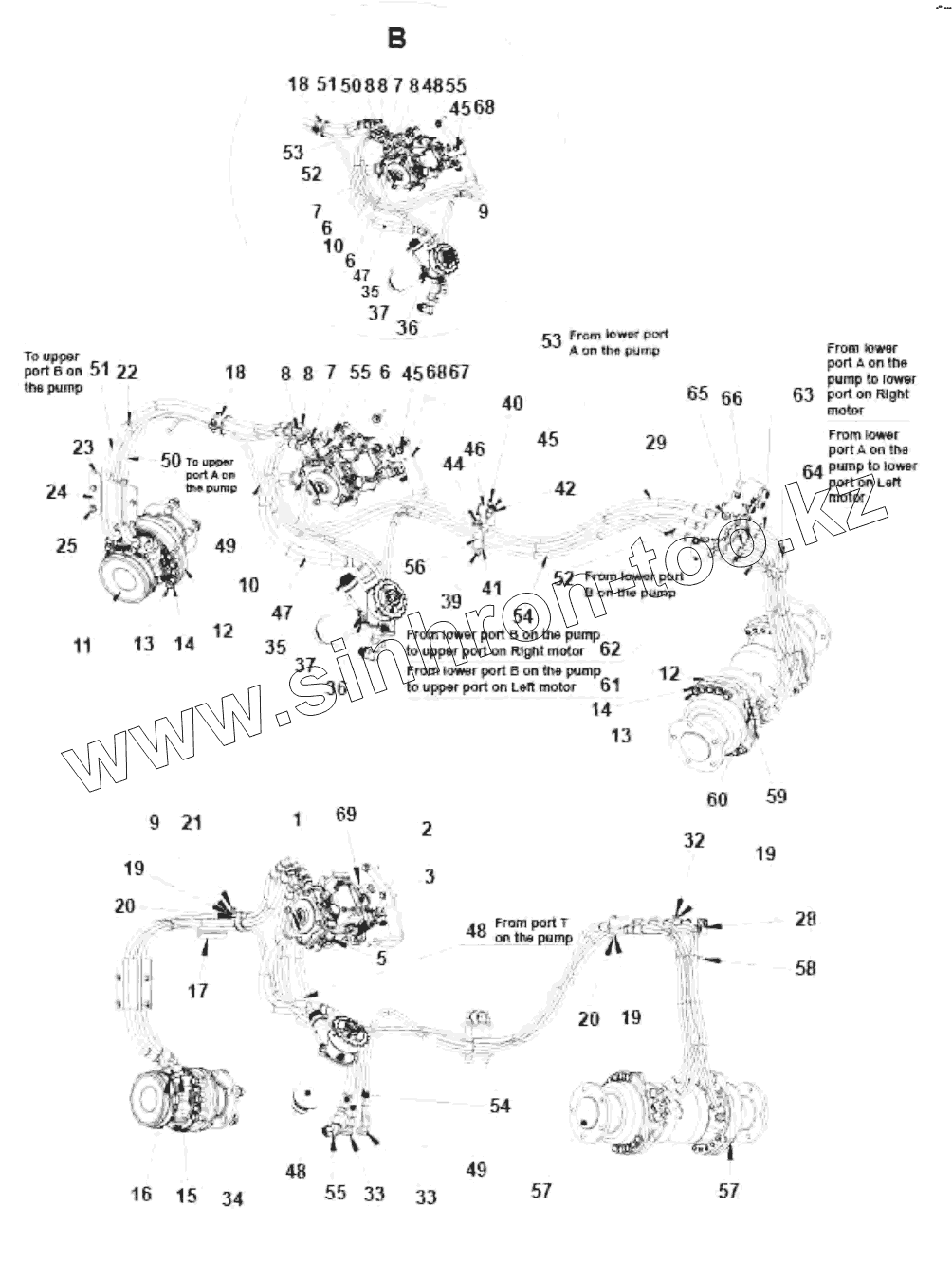

Каталог запасных частей к технике: DYNAPAC CC1200C Plus. Propulsion system From 0A015214

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
5
6
6
6
6
6
6
6
6
7
7
7
7
7
7
7
7
8
8
8
8
8
8
8
8
8
8
8
8
9
9
9
9
9
9
10
10
11
12
12
13
13
14
14
15
16
17
18
18
19
19
19
19
19
19
19
19
20
20
20
20
20
20
21
21
21
21
22
23
24
25
28
29
32
33
33
34
35
35
36
36
37
37
39
40
41
42
44
45
45
45
46
47
47
48
48
48
49
49
50
50
51
51
52
52
53
53
54
54
55
55
55
56
57
57
58
59
60
61
62
63
64
65
66
67
68
68
69
Позиция на иллюстрации Заводской номер детали Название детали
1 4812120091 Hydraulic pump
2 4700904703 Plain washer
3 4700500037 Hex. screw
5 4700923405 Measuring nipple
6 4700791699 Elbow 90°
6 4700791408 Straight o-ring connector
7 4700791798 Adapter
7 4700791798 Adapter
8 4700791745 Elbow 90, O-ring with swivel
8 4700791745 Elbow 90, O-ring with swivel
9 4700791792 Tee-connector
9 4700902286 Lock nut
10 4700904728 Adapter
11 4812120558 Hydraulic motor
12 4812110490 Holder
13 4700500269 Screw
14 4700904231 Washer
15 4700791410 Straight o-ring connector
16 4700791828 Adapter
17 4700902379 Edge trim
18 4700921022 Hose clamp
19 4700904229 Washer
19 4700904229 Washer
20 4700586003 Hexagon lock nut
20 4700586003 Hexagon lock nut
21 4700500022 Hex. screw
21 4700500506 Screw
22 4700313102 Cable ties
23 4700371313 Hose clamp
24 4700371314 Hose clamp
25 4700901832 Screw
28 4812120928 CONNECTION BLOCK
29 4700792512 Steel plug threaded
32 4700500068 Screw
33 4700791398 Elbow 90, O-ring
34 4812113327 Hydraulic oil filter
35 4700792338 Adapter
36 4700904637 Washer
37 4700508096 Hexagon socket head cap screw
39 4700355869 Spacer sleeve
40 4700902233 Threaded stud
41 4700357112 Cover plate
42 4700357111 Rubber cloth
44 4700586018 Lock nut
45 4700904230 Washer
46 4700921099 Clamp
47 4812120885 Hydraulic hose
48 4812121228 Hydraulic hose
49 4700484092 Hydraulic hose
50 4700484316 Hydraulic hose
51 4700484316 Hydraulic hose
52 4812121226 Hydraulic hose
53 4812121226 Hydraulic hose
54 4812121769 Hydraulic hose
55 4700792332 Elbow 90 orfs
56 4700375616 Spacer sleeve
57 4700375632 Hydraulic motor, propulsion
58 4700902379 Edge trim
59 4700791547 Straight connector orfs
60 4700791409 Straight connector orfs
61 4812121230 Hydraulic hose
62 4812121230 Hydraulic hose
63 4812121231 Hydraulic hose
64 4812121231 Hydraulic hose
65 4811000401 Hydraulic hose
66 4811000401 Hydraulic hose
67 4812121463 Bracket
68 4811000456 Screw
69 4700416034 Ball joint
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
