Flow divider (option) To A015807

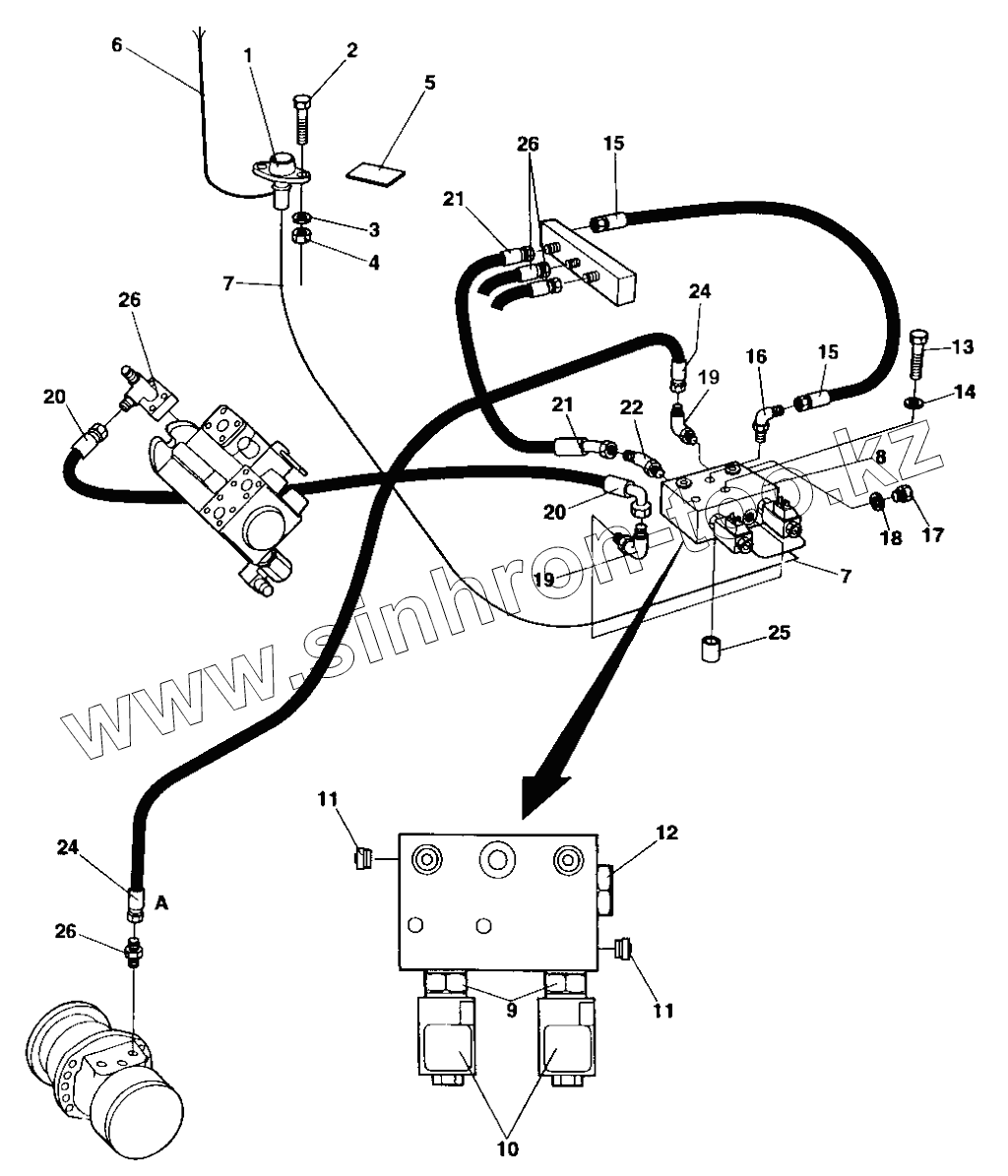

Каталог запасных частей к технике: DYNAPAC CC1200C Plus. Flow divider (option) To A015807
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
CA1400 (2016)
CA2500D (2016)
CA2500D (2018)
CA2500D-PD (2018)
CA250D (2011)
CA252D (2008)
CA2800D (2017)
CA3500D (2016)
CA4000D (2017)
CA4000D (2020)
CA4600D (2019)
CA5500D (2015)
CA610PD (2014)
CA6500 (2018)
CC1000 (2019)
CC1100CC (2015)
CC1200C Plus (2015)
CC1200C VI (2018)
CC1200CC (2018)
CC125 (2015)
CC1250 (2015)
CC1300 (2018)
CC1300C (2015)
CC1300C (2016)
CC2200 (2018)
CC2200 (2020)
CC2300C (2018)
CC3300 (2018)
CC4000 VI (2018)
CC4200C VI (2020)
CC5200C (2018)
CC6200 VI (2020)
CC800 (2019)
CC900 (2018)
CC900S (2018)
CG2300 (2018)
CP142 (2015)
CP275 (2014)
Dynapac CA1500 (2017)
Dynapac CA2500 (2012)
Dynapac CA302D (2008)
Dynapac CA302D (2010)
Dynapac CA5000D (2017)
Dynapac CC142 (2009)
Dynapac CC2200C (2015)
Dynapac CC224HF (2012)
Dynapac CC322 (2008)
Dynapac CC422 (2010)
Dynapac CC5200 (2014)
Dynapac CC5200 (2017)
Dynapac CC5200 (2017)
Dynapac CC5200 VI (2017)
Dynapac CC800 (2013)
Dynapac CC800 (2014)
Dynapac F1200C/CS (2018)
Dynapac F1200CS/CS (2018)
Dynapac F1800C (2018)
Dynapac F181C (2010)
Dynapac PL2000LS (2010)
Dynapac PL2000LS (2010)
Dynapac PL2000S (2010)
Dynapac PL2000S (2010)
Dynapac SCC1300 (2014)
Dynapac SD2500C (ч. 1) (2018)
Dynapac SD2500C (ч. 2) (2018)
Dynapac SD2550C (ч. 1) (2018)
Dynapac SD2550C (ч. 2) (2018)
F2500C (2018)
SD2550CS (2015)
Схема
>
Не выбрано
DYNAPAC CC1200C Plus S/N 10000333x0A012669-
4812156265 Service kit 50h
4812159563 Service kit 50h Plus
4812156288 Service kit 250 / 750 h
4812159564 Service kit 250/750h Plus
4812156266 Service kit 500h
4812159565 Service kit 500h Plus
4812156267 Service kit 1000 h
4812159568 Service kit 1000h Plus
4812159571 Start-up kit
4700938908 Eccentric shaft kit
4700938892 Drum rotation kit
4700938885 Shock absorber kit, drum
4700938575 Steering hitch kit
4812159961 Scraper kit
Scraper kit, Wheels
Keys
Fuses
Frame, front To: 0A014775
Frame, rear To: 0A014775
Frame, front From 0A014776
Frame, rear 0A014776
Sprinkler system
Scrapers
Scrapers, wheels
Scrapers, spring loaded (option)
4700358975 Steering hitch To 0A014837 incl. 0A014840 - 0A014888
Steering hitch From 0A014838 excl. 0A014840 - 0A014888 4812120871
Protective plate, front lights (Option)
Drum
Wheels
Engine room
Engine module
4812110881 Diesel engine Kubota D1703
Exhaust system
Fan
Air filter
Water cooler To 0A015094
Water cooler To 0A015095
4812118163 Engine hood, cpl To 0A015756
Engine hood cpl, From 0A015757
Casing
Cooler hoses
Air hoses
Fuel hoses
Fuel system To 0A013025
Fuel system From 0A013026
Propulsion system To 0A015213
4700372352 Hydraulic pump, propulsion
Control unit, cpl To 0A015213
4812110281 Junction block To 0A015213
Hydraulic motor, propulsion, drum To 0A012964 incl. 0A012966 4700390742
4700375632 Hydraulic motor, propulsion
Propulsion system From 0A015214
Vibration system To 0A015213
Vibration system From 0A015214
Steering system
4700374603 Steering cylinder To 0A012768 incl. 0A012770 - 0A012993, 0A012995 - 0A012996, 0A012998 - 0A013002
4812120737 Hydraulic cylinder From 0A012769 excl. 0A012770 - 0A012993, 0A012995 - 0A012996, 0A012998 - 0A013002
Flow divider (option) To A015807
Flow divider (option) From A015808
Brake system To 0A015213
Hydraulic brake From 0A015214 To 0A016077
Hydraulic brake From 0A016078
Rotating group, valves, charge pump
Vibration shut-off Front drum (option)
Horn module
Battery module
Battery disconnector
Cable harness To 0A015109 incl. 0A015111, 0A015114 - 0A015118, 0A015120 - 0A015121, 0A015123 - 0A015124, 0A015126 - 0A015127
Cable harness From 0A015110 excl. 0A015111, 0A015114 - 0A015118, 0A015120 - 0A015121, 0A015123 - 0A015124, 0A015126 - 0A015127
Working lights
Working lights front
Working light rear
Working light (option) rear
Casing rear
Cover plate rear
Driving lights Front RH (option)
Driving lights Front
Driving lights Rear (option)
Driving lights Front LH (option)
Driving lights Front
Rotating beacon for ROPS (option)
Rotating beacon for ROPS ignition controlled (option)
Rotating beacon, without rops (option)
Direction indicator (option)
Back-up alarm
Sprinkler Wheels (option)
Drivers platform
Platform module To 0A014353
Platform module To 0A014353
Platform From 0A014354
Platform module From 0A014354
Instrument panel module
Steering wheel
Control module
Standard ECU module
Forward-Reverse control module To 0A014530
4812113676 Forward and reverse control handle To 0A014530
Forward-reverse control left (option) To 0A014530
Cover plate, Dual F&R-control left side To 0A014530
Forward-reverse control, Right side, single From 0A014531 To 0A015764
4812121384 Forward & Reverse control From 0A014531 To 0A015764
Cover plate, Dual F&R-control, left side From 0A014531 To 0A015764
Forward-Reverse Control module, Dual lever (option) From 0A014531 To 0A015764
Forward-Reverse control module From 0A015765
Forward-Reverse Control module, Dual lever (option) From 0A015765
Throttle control, cpl
Throttle control cpl, Dual frequency To 0A015633
Throttle control cpl, Dual frequency (option) From 0A015634
Arm rests, seat belt, laterally adjusting
Step (option)
Driver seat, Std
Driver seat, Luxury (option)
Driver's seat, without armrests
Seat belt module 3"
Seat belt module 2"
Rear view mirror (option)
ROPS, foldable (option)
Rops (option)
Canopy (option)
Decals
Fire extinguisher
Tool equipment
SMV-sign and Licence plate
Brake release, propulsion motor
Brake release, propulsion motor Poclain
1
2
3
4
5
6
7
7
8
9
10
11
11
12
13
14
15
15
16
17
18
19
19
20
20
21
21
22
24
24
25
26
26
26
Позиция на иллюстрации
Заводской номер детали
Название детали
1
4812113326
Contact
2
4700533016
Screw
3
4700600002
Washer
4
4700923976
Lock nut
5
4700355981
Decal
6
4812112470
Cable harness
7
4812112566
Cable harness
8
4700358546
Flow divider
9
4700903141
Valve
10
4700903142
Coil
11
4700903144
Check valve
12
4700903145
Valve
13
4700500034
Screw
14
4700904230
Washer
15
4700482773
Hydraulic hose
16
4700334235
Elbow 90
17
4700332038
Plug
18
4700162004
Sealing
19
4700923407
Adapter
20
4700483283
Hydraulic hose
21
4700482883
Hydraulic hose
22
4700904175
Connector
24
4700482214
Hydraulic hose
25
4700355869
Spacer sleeve
26
Hydraulicdetails
Hydraulic details
