Каталог запасных частей к технике: DYNAPAC CC1200C Plus. 4812156265 Service kit 50h

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CA1400 (2016) CA2500D (2016) CA2500D (2018) CA2500D-PD (2018) CA250D (2011) CA252D (2008) CA2800D (2017) CA3500D (2016) CA4000D (2017) CA4000D (2020) CA4600D (2019) CA5500D (2015) CA610PD (2014) CA6500 (2018) CC1000 (2019) CC1100CC (2015) CC1200C Plus (2015) CC1200C VI (2018) CC1200CC (2018) CC125 (2015) CC1250 (2015) CC1300 (2018) CC1300C (2015) CC1300C (2016) CC2200 (2018) CC2200 (2020) CC2300C (2018) CC3300 (2018) CC4000 VI (2018) CC4200C VI (2020) CC5200C (2018) CC6200 VI (2020) CC800 (2019) CC900 (2018) CC900S (2018) CG2300 (2018) CP142 (2015) CP275 (2014) Dynapac CA1500 (2017) Dynapac CA2500 (2012) Dynapac CA302D (2008) Dynapac CA302D (2010) Dynapac CA5000D (2017) Dynapac CC142 (2009) Dynapac CC2200C (2015) Dynapac CC224HF (2012) Dynapac CC322 (2008) Dynapac CC422 (2010) Dynapac CC5200 (2014) Dynapac CC5200 (2017) Dynapac CC5200 (2017) Dynapac CC5200 VI (2017) Dynapac CC800 (2013) Dynapac CC800 (2014) Dynapac F1200C/CS (2018) Dynapac F1200CS/CS (2018) Dynapac F1800C (2018) Dynapac F181C (2010) Dynapac PL2000LS (2010) Dynapac PL2000LS (2010) Dynapac PL2000S (2010) Dynapac PL2000S (2010) Dynapac SCC1300 (2014) Dynapac SD2500C (ч. 1) (2018) Dynapac SD2500C (ч. 2) (2018) Dynapac SD2550C (ч. 1) (2018) Dynapac SD2550C (ч. 2) (2018) F2500C (2018) SD2550CS (2015)

Схема > Не выбрано DYNAPAC CC1200C Plus S/N 10000333x0A012669- 4812156265 Service kit 50h 4812159563 Service kit 50h Plus 4812156288 Service kit 250 / 750 h 4812159564 Service kit 250/750h Plus 4812156266 Service kit 500h 4812159565 Service kit 500h Plus 4812156267 Service kit 1000 h 4812159568 Service kit 1000h Plus 4812159571 Start-up kit 4700938908 Eccentric shaft kit 4700938892 Drum rotation kit 4700938885 Shock absorber kit, drum 4700938575 Steering hitch kit 4812159961 Scraper kit Scraper kit, Wheels Keys Fuses Frame, front To: 0A014775 Frame, rear To: 0A014775 Frame, front From 0A014776 Frame, rear 0A014776 Sprinkler system Scrapers Scrapers, wheels Scrapers, spring loaded (option) 4700358975 Steering hitch To 0A014837 incl. 0A014840 - 0A014888 Steering hitch From 0A014838 excl. 0A014840 - 0A014888 4812120871 Protective plate, front lights (Option) Drum Wheels Engine room Engine module 4812110881 Diesel engine Kubota D1703 Exhaust system Fan Air filter Water cooler To 0A015094 Water cooler To 0A015095 4812118163 Engine hood, cpl To 0A015756 Engine hood cpl, From 0A015757 Casing Cooler hoses Air hoses Fuel hoses Fuel system To 0A013025 Fuel system From 0A013026 Propulsion system To 0A015213 4700372352 Hydraulic pump, propulsion Control unit, cpl To 0A015213 4812110281 Junction block To 0A015213 Hydraulic motor, propulsion, drum To 0A012964 incl. 0A012966 4700390742 4700375632 Hydraulic motor, propulsion Propulsion system From 0A015214 Vibration system To 0A015213 Vibration system From 0A015214 Steering system 4700374603 Steering cylinder To 0A012768 incl. 0A012770 - 0A012993, 0A012995 - 0A012996, 0A012998 - 0A013002 4812120737 Hydraulic cylinder From 0A012769 excl. 0A012770 - 0A012993, 0A012995 - 0A012996, 0A012998 - 0A013002 Flow divider (option) To A015807 Flow divider (option) From A015808 Brake system To 0A015213 Hydraulic brake From 0A015214 To 0A016077 Hydraulic brake From 0A016078 Rotating group, valves, charge pump Vibration shut-off Front drum (option) Horn module Battery module Battery disconnector Cable harness To 0A015109 incl. 0A015111, 0A015114 - 0A015118, 0A015120 - 0A015121, 0A015123 - 0A015124, 0A015126 - 0A015127 Cable harness From 0A015110 excl. 0A015111, 0A015114 - 0A015118, 0A015120 - 0A015121, 0A015123 - 0A015124, 0A015126 - 0A015127 Working lights Working lights front Working light rear Working light (option) rear Casing rear Cover plate rear Driving lights Front RH (option) Driving lights Front Driving lights Rear (option) Driving lights Front LH (option) Driving lights Front Rotating beacon for ROPS (option) Rotating beacon for ROPS ignition controlled (option) Rotating beacon, without rops (option) Direction indicator (option) Back-up alarm Sprinkler Wheels (option) Drivers platform Platform module To 0A014353 Platform module To 0A014353 Platform From 0A014354 Platform module From 0A014354 Instrument panel module Steering wheel Control module Standard ECU module Forward-Reverse control module To 0A014530 4812113676 Forward and reverse control handle To 0A014530 Forward-reverse control left (option) To 0A014530 Cover plate, Dual F&R-control left side To 0A014530 Forward-reverse control, Right side, single From 0A014531 To 0A015764 4812121384 Forward & Reverse control From 0A014531 To 0A015764 Cover plate, Dual F&R-control, left side From 0A014531 To 0A015764 Forward-Reverse Control module, Dual lever (option) From 0A014531 To 0A015764 Forward-Reverse control module From 0A015765 Forward-Reverse Control module, Dual lever (option) From 0A015765 Throttle control, cpl Throttle control cpl, Dual frequency To 0A015633 Throttle control cpl, Dual frequency (option) From 0A015634 Arm rests, seat belt, laterally adjusting Step (option) Driver seat, Std Driver seat, Luxury (option) Driver's seat, without armrests Seat belt module 3" Seat belt module 2" Rear view mirror (option) ROPS, foldable (option) Rops (option) Canopy (option) Decals Fire extinguisher Tool equipment SMV-sign and Licence plate Brake release, propulsion motor Brake release, propulsion motor Poclain

2

3

4

6

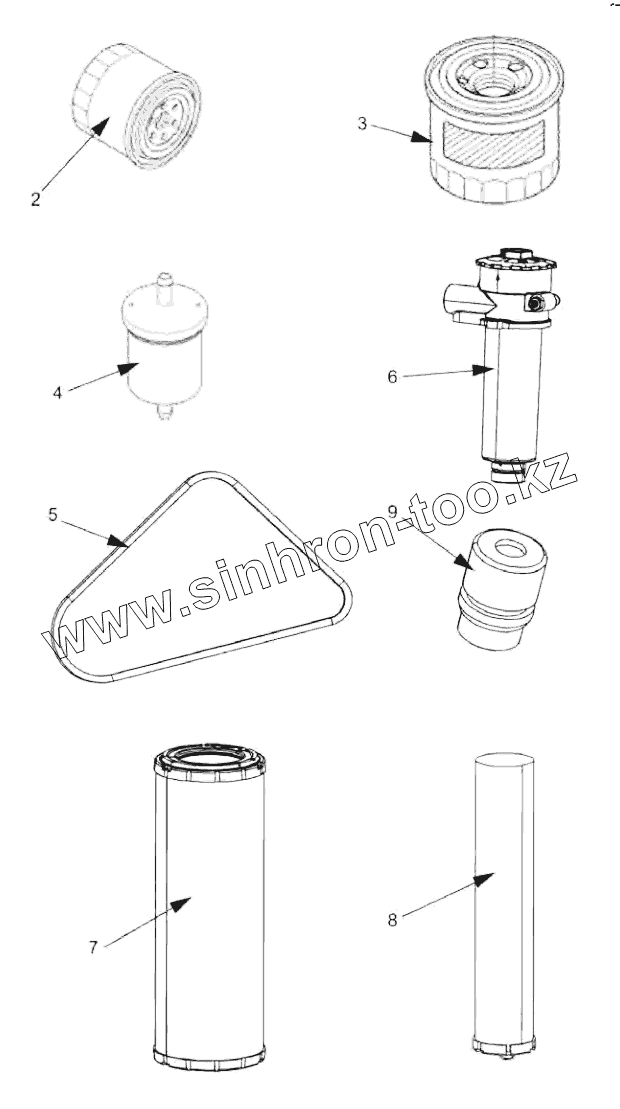

Позиция на иллюстрации	Заводской номер детали		Название детали
4812156265	4812156265		Service kit
2	4812156259		Engine oil filter element
3	4812156263		Fuel filter element
4	4812156264		Pre-fuel filter element
6	4812113328		Hydraulic oil filter element

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
