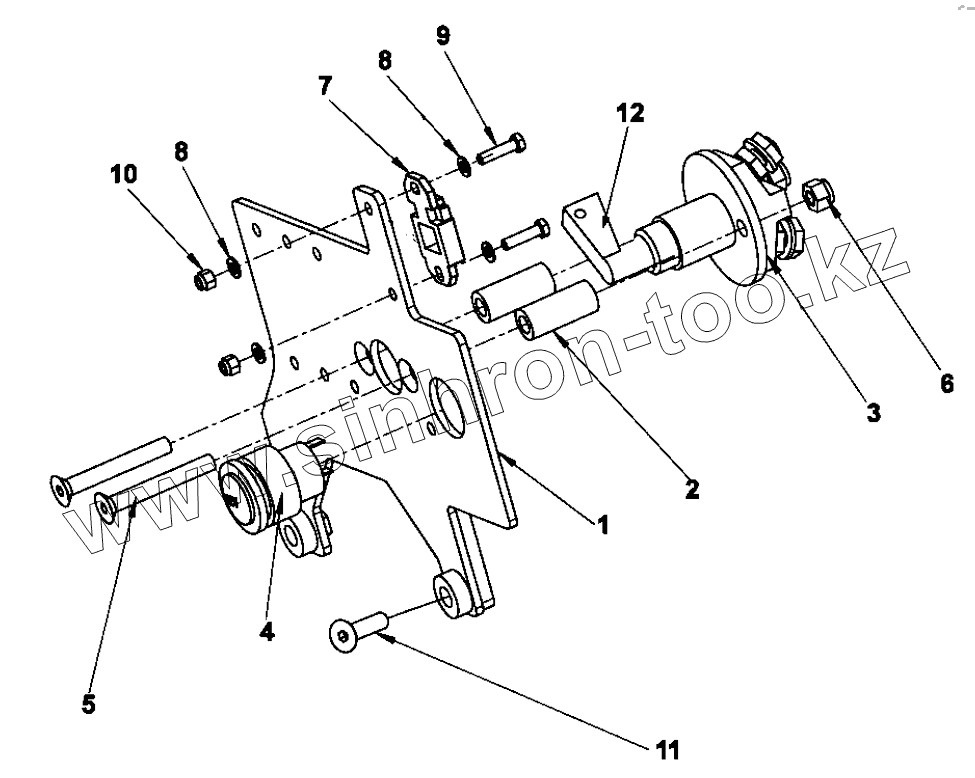

Каталог запасных частей к технике: DYNAPAC CC1100CC. Battery disconnector
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
CA1400 (2016)
CA2500D (2016)
CA2500D (2018)
CA2500D-PD (2018)
CA250D (2011)
CA252D (2008)
CA2800D (2017)
CA3500D (2016)
CA4000D (2017)
CA4000D (2020)
CA4600D (2019)
CA5500D (2015)
CA610PD (2014)
CA6500 (2018)
CC1000 (2019)
CC1100CC (2015)
CC1200C Plus (2015)
CC1200C VI (2018)
CC1200CC (2018)
CC125 (2015)
CC1250 (2015)
CC1300 (2018)
CC1300C (2015)
CC1300C (2016)
CC2200 (2018)
CC2200 (2020)
CC2300C (2018)
CC3300 (2018)
CC4000 VI (2018)
CC4200C VI (2020)
CC5200C (2018)
CC6200 VI (2020)
CC800 (2019)
CC900 (2018)
CC900S (2018)
CG2300 (2018)
CP142 (2015)
CP275 (2014)
Dynapac CA1500 (2017)
Dynapac CA2500 (2012)
Dynapac CA302D (2008)
Dynapac CA302D (2010)
Dynapac CA5000D (2017)
Dynapac CC142 (2009)
Dynapac CC2200C (2015)
Dynapac CC224HF (2012)
Dynapac CC322 (2008)
Dynapac CC422 (2010)
Dynapac CC5200 (2014)
Dynapac CC5200 (2017)
Dynapac CC5200 (2017)
Dynapac CC5200 VI (2017)
Dynapac CC800 (2013)
Dynapac CC800 (2014)
Dynapac F1200C/CS (2018)
Dynapac F1200CS/CS (2018)
Dynapac F1800C (2018)
Dynapac F181C (2010)
Dynapac PL2000LS (2010)
Dynapac PL2000LS (2010)
Dynapac PL2000S (2010)
Dynapac PL2000S (2010)
Dynapac SCC1300 (2014)
Dynapac SD2500C (ч. 1) (2018)
Dynapac SD2500C (ч. 2) (2018)
Dynapac SD2550C (ч. 1) (2018)
Dynapac SD2550C (ч. 2) (2018)
F2500C (2018)
SD2550CS (2015)
Схема
>
Не выбрано
DYNAPAC CC1100 CC S/N 10000363x0A013590-
4812156265 Service kit 50h
4812159563 Service kit 50h Plus
4812156288 Service kit 250 / 750 h
4812159564 Service kit 250/750h Plus
4812156266 Service kit 500h
4812159565 Service kit 500h Plus
4812156267 Service kit 1000 h
4812159566 Service kit 1000h Plus
4812159570 Start-up kit
4700938908 Eccentric shaft kit
4700938892 Drum rotation kit
4812159962 Scraper kit CC1100
4700938885 Shock absorber kit, drum
4700938575 Steering hitch kit
Keys
Fuses
Frame, front To 0A015210
Frame, rear To 0A015210
Frame, front To From 0A015211
Frame, rear To From 0A015211
Scraper
Scrapers, spring loaded (option)
Sprinkler system
Towing device (option)
4700358975 Steering hitch To 0A014837 incl. 0A014840 - 0A014888
Steering hitch From 0A014838 excl. 0A014840 - 0A014888 4812120871
Protective plate, front lights (Option)
Drum
Engine room
Engine module
4812110881 Diesel engine Kubota D1703
Exhaust system
Fan
Air filter
Water cooler To 0A015092
Water cooler From 0A015093
4812118163 Engine hood, cpl To 0A015756
Engine hood cpl, From 0A015757
Casing
Cooler hoses
Air hoses
Fuel hoses
Fuel system
Propulsion system From 0A013590 To 0A015210
Propulsion system From 0A015211
Vibration system From 0A013590 To 0A014949
Vibration system From 0A014950
Steering system
4812120737 Hydraulic cylinder
Brake system
Flow divider (option)
Vibration shut-off Front drum (option)
Electrical equipment
Horn module
Battery module
Battery disconnector
Cable harness
Working lights
Casing rear
Cover plate rear
Working lights front
Working light rear
Working light (option) rear
Driving lights Front RH (option)
Driving lights Front
Driving lights Rear (option)
Driving lights Front
Driving lights Front LH (option)
Rotating beacon for ROPS (option)
Rotating beacon for ROPS ignition controlled (option)
Rotating beacon, without rops (option)
Direction indicator (option)
Back-up alarm
Drivers platform
Platform module
Platform
Instrument panel module
Steering wheel
Control module
Standard ECU module
Forward-reverse control, Right side, single To 0A015617
4812121384 Forward & Reverse control To 0A015617
Cover plate, Dual F&R-control, left side To 0A015617
Forward-Reverse control module From 0A015618
Throttle control, cpl
Throttle control cpl, Dual frequency To 0A015062
Throttle control cpl, Dual frequency (option) From 0A015063
Arm rests, seat belt, laterally adjusting
Driver's seat, without armrests
Seat belt module 3"
Seat belt module 2"
ROPS, foldable (option)
Rops (option)
Decals
1
2
3
4
5
6
7
8
8
9
10
11
12
Позиция на иллюстрации
Заводской номер детали
Название детали
1
4812115926
Bracket
2
4700391115
Spacer sleeve
3
4700357567
Battery switch, cpl
4
4812110560
Power socket
5
4700903732
Screw
6
4700586003
Hexagon lock nut
7
4700904036
Fuse holder
8
4700904281
Washer
9
4700500060
Screw
10
4700586001
Lock nut
11
4700902520
Screw
12
4700902560
Handle
