Arm rests, seat belt, laterally adjusting
Driver's seat, without armrests
Seat belt module 3"
Seat belt module 2"
ROPS, foldable (option)
Rops (option)
Decals

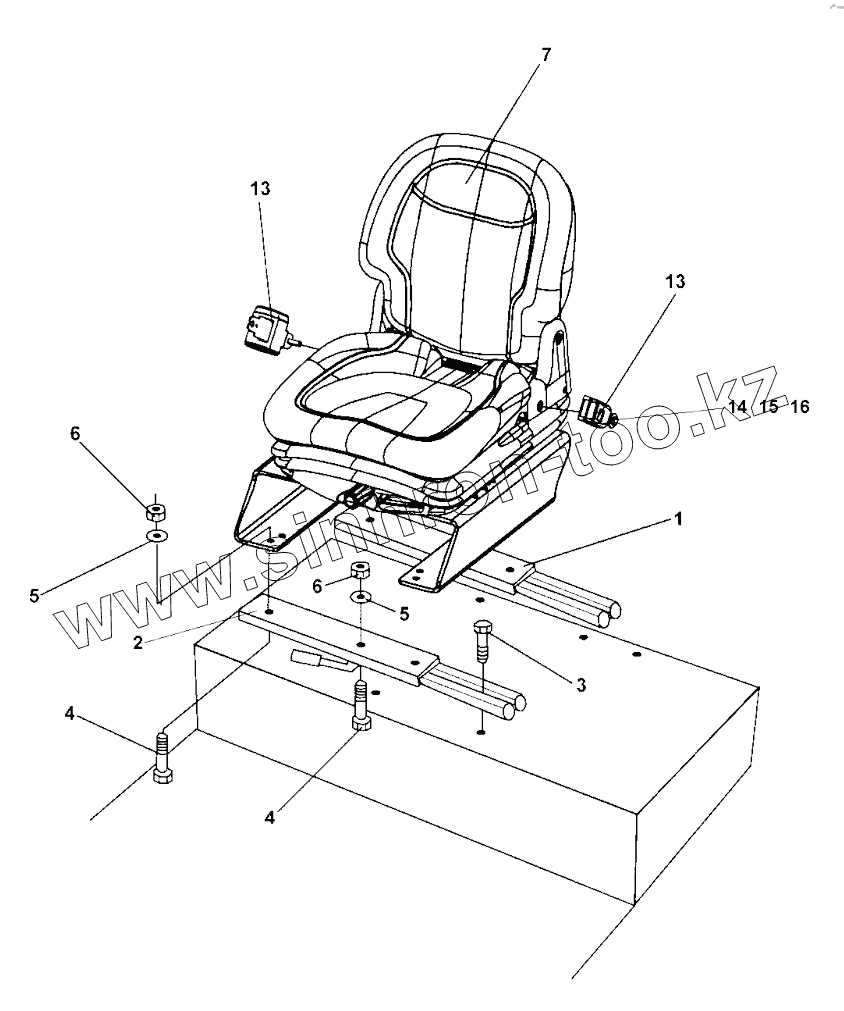

1
2
3
4
4
5
5
6
6
7
7
13
13
13
14
15
16
Позиция на иллюстрации
Заводской номер детали
Название детали
1
4700909536
Sliding rail
2
4700909535
Sliding rail with handle
3
4700508092
Screw
4
4700500020
Hex. screw
5
4700904229
Washer
6
4700586003
Hexagon lock nut
7
4700377518
Drivers seat, cpl
7
4700945622
Seat switch
13
4700377677
Seat belt
13
4700379637
Seat belt
14
Screw
Screw
15
Nut
Nut
16
Protectioncap
Protection cap
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
