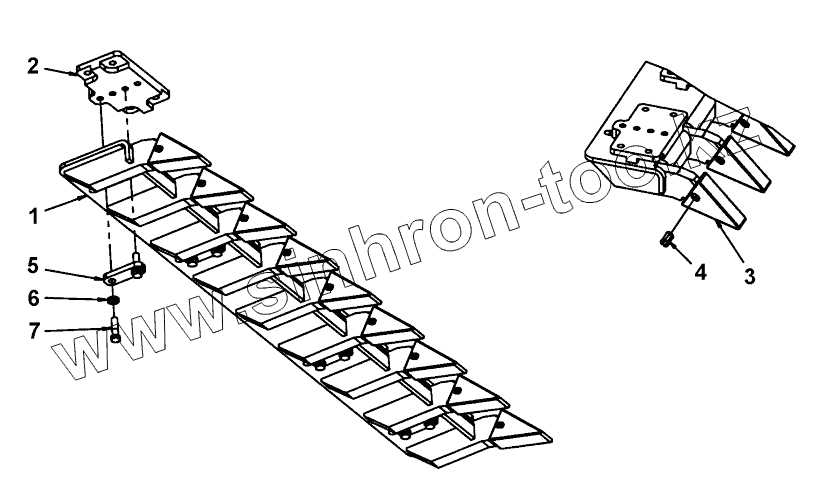

Каталог запасных частей к технике: DYNAPAC CA6500. Scraper mount

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CA1400 (2016) CA2500D (2016) CA2500D (2018) CA2500D-PD (2018) CA250D (2011) CA252D (2008) CA2800D (2017) CA3500D (2016) CA4000D (2017) CA4000D (2020) CA4600D (2019) CA5500D (2015) CA610PD (2014) CA6500 (2018) CC1000 (2019) CC1100CC (2015) CC1200C Plus (2015) CC1200C VI (2018) CC1200CC (2018) CC125 (2015) CC1250 (2015) CC1300 (2018) CC1300C (2015) CC1300C (2016) CC2200 (2018) CC2200 (2020) CC2300C (2018) CC3300 (2018) CC4000 VI (2018) CC4200C VI (2020) CC5200C (2018) CC6200 VI (2020) CC800 (2019) CC900 (2018) CC900S (2018) CG2300 (2018) CP142 (2015) CP275 (2014) Dynapac CA1500 (2017) Dynapac CA2500 (2012) Dynapac CA302D (2008) Dynapac CA302D (2010) Dynapac CA5000D (2017) Dynapac CC142 (2009) Dynapac CC2200C (2015) Dynapac CC224HF (2012) Dynapac CC322 (2008) Dynapac CC422 (2010) Dynapac CC5200 (2014) Dynapac CC5200 (2017) Dynapac CC5200 (2017) Dynapac CC5200 VI (2017) Dynapac CC800 (2013) Dynapac CC800 (2014) Dynapac F1200C/CS (2018) Dynapac F1200CS/CS (2018) Dynapac F1800C (2018) Dynapac F181C (2010) Dynapac PL2000LS (2010) Dynapac PL2000LS (2010) Dynapac PL2000S (2010) Dynapac PL2000S (2010) Dynapac SCC1300 (2014) Dynapac SD2500C (ч. 1) (2018) Dynapac SD2500C (ч. 2) (2018) Dynapac SD2550C (ч. 1) (2018) Dynapac SD2550C (ч. 2) (2018) F2500C (2018) SD2550CS (2015)

Схема > Не выбрано 4812156993 Service kit, 50h Plus 4812156994 Service kit, 500h 4812157363 Service kit, 500h Plus 4812156995 Service kit, 1000h 4812157277 Service kit, 1000h Plus 4812157254 Start up kit 4812158053 Service kit, 2000h 4812157255 Service kit, 2000h Plus Eccentric shaft kit 4812157275 Drum rotation kit 4812157276 Shock absorber kit, drum Fuses Keys Frame, front 4812117507 Steering hitch, cpl Scraper module Hardox Scraper module Rubber Scraper assy Scraper module PD Hardox Scraper module PD Heavy duty Scraper mount Frame, rear Frame rear module Cover assembly Step module Step assy Tool box module, Option Engine structure Engine hood module Engine hood mount 4812118994 Lock handle, cpl Fender module Hinge module Gas spring module Safety link module Drum, cpl 4812111831 Drum gear, cpl 4812157393 Drum cartridge, vibration side (D/PD version) 4812157394 Drum cartridge, vibration side (VM/VP 3-class) 4812157784 Drum cartridge with shaft nut, vibration side (D/PD version) 4812157785 Drum cartridge with shaft nut, vibration side (VM/VP 3-class) 4812157390 Drum cartridge, drive side (D/PD version) 4812157391 Drum cartridge, drive side (VM/VP 3-class) Tooth wheel module Vibration motor adapter Engine Engine Diesel engine Belt guard module Bracket module Air cleaner Air cleaner module Cooling system Cooler stand module Hose kit Hoses Fuel system Fuel tank module Fuel tank Brackets assy Hoses Draining module Exhaust system Expansion tank module Rear axle and wheels 4812111832 Rear axle Limited-Slip Differential Central housing and brakes Hub reduction 4812111833 Rear axle No-Spin Differential with no-spin Differential housing and brakes Planet gear Hydraulic system, drum Hydraulic motor 4812116969 Hydraulic motor Rotary group 4812157180 Flush & boost pressure valve Lock ring Hydraulic motor 4812112200 Hydraulic motor Loop flushing Hydraulic system, drum Anti-spin option Hydraulic motor 4812112202 Drum motor Drum motor. Front section Loop flushing Drum motor. Rear section Hydraulic system, rear axle Hydraulic motor 4812112211 Rear axle motor Loop flusing 4812122932 Hydraulic motor Hose holder Hydraulic system, rear axle Anti-spin option Hydraulic motor 4812112213 Rear axle motor Front section Loop flushing Rear section Hydraulic system, oil tank Hydraulic oil tank assembly Hydraulic valve module 4812120840 Hydraulic valve 4812112238 Hydraulic valve Hose holder assy kit Fan module, front 4812117797 Hydraulic motor Fan module, rear 4812117796 Hydraulic motor Hydraulic system, engine room Hydraulic pump module 4812112171 Hydraulic pump End cap, cpl Hydraulic pump module 4812112175 Hydraulic pump Rotary group Hydraulic adjustment 4/3 Pilot valve Hydraulic oil filter assy Hydraulic pump module 4812118150 Hydraulic pump, steering Hydraulic system, engine room Adjustable frequency, Eco opti Hydraulic pump 4812112181 Hydraulic pump Rotary group Control hydraulic Sub plate Cover with accessories Control module Hydraulic pump module, Eco 4812118151 Hydraulic pump Hydraulic system, frame rear Connector kit Connector kit Hydraulic system, steering Hydraulic cylinder 4812121947 Hydraulic cylinder 4812120830 Hydraulic cylinder Steering valve module Hydraulic hoses, steering Emergency steering option 4812112188 Hydraulic pump Emergency steering unit 4812112236 Hydraulic valve Electric cables, power supply, 1-pole Battery module Battery disconnector module Electric cables, power supply, 2-pole, option Battery disconnector, 2-pole Electric cables, engine ECU, horn, back-up alarm ECU, inclination sensor, power converter Standard ECU assembly Power converter module Inclination sensor module Inclination sensor module Horn module Back-up alarm module Back-up alarm module, Quacker Bracket module Cable harness kit Power supply cab Driving & side direction lights, number plate light, option Steering column switch module Cable harness kit Registration plate light module Registration plate light Holder, Registration plate light Reversing light module DCA/GPS equipment module, option Holder GPS equipment module GPS equipment assy Computer Tachograph, option Holder assy Power supply module Speed sensor, frequency sensor, option Pulse sensor module (6-pol) Pre-heater installation, option Rotating beacon, working light, option Rotating beacon module Bracket, Rotating beacon Working light module H3 Cable harness, emergency steering, option Displacement shift Compaction meter, option Power supply External emergency stop, option Platform, rops 4812120544 Platform with 4-post ROPS Basic kit Rops, roof, front handrail Rear cover Handrail Cab, basic kit Manual box Decals basic kit Cab symmetric module 4812119364 Cab, cpl Comfort Screens 4812115202 Cab door, cpl 4812115200 Sliding screen, left hand Windshield wiper Roof Heater assy Hose kit heater Cab cable harness Cab Interior Heater controls Cab, electrical equipment Emergency hammer, hook Cab, rear cover Cab, front cover Floor mat Step light, front wiper switches Air channel Sun-blind, inner light 4812119365 Cab, cpl Basic Cab, rear cover Cab, front cover Wiper switch, front Car stereo module, option Rear view mirror Rear view mirror module Hose assy kit, heater Drivers seat Seat frame structure 4700391163 Steering column Seat frame adapter module, rotating Seat frame adapter module, fixed Floor cassette module Seat comfort, fabric suspensioned Seat, galon suspensioned Seat belt 2" Seat belt 3" Seat belt 2" with reminder Seat belt 3" with reminder Control module Forward reverse control module Display unit Reading light Control panel cover Decals Decals Plain Dynapac decals, kit Air conditioning Drying filter module 4812114257 Drying filter assy Condensor assembly ACC module 4812113624 ACC kit AC module 4812113623 Evaporator, cpl Hose assy kit for AC 4812114973 Compressor kit Compressor module AC Hose assy kit for AC Level sensor module, option Fire extinguisher/First Aid Cushion Fire extinguisher SMV-sign Cooling box module Lunch box Dyn@Link module 4812013038 GPS module Compaction meter (DCM) Dyn@lyzer

1

2

3

4

5

6

7

Позиция на иллюстрации	Заводской номер детали		Название детали
1	4812116617		Scraper
2	4812115508		Adapter
3	4700383844		Scraper
4	4700801631		Pin
5	4812118062		Holder
6	4700904558		Washer
7	4700500270		Screw

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
