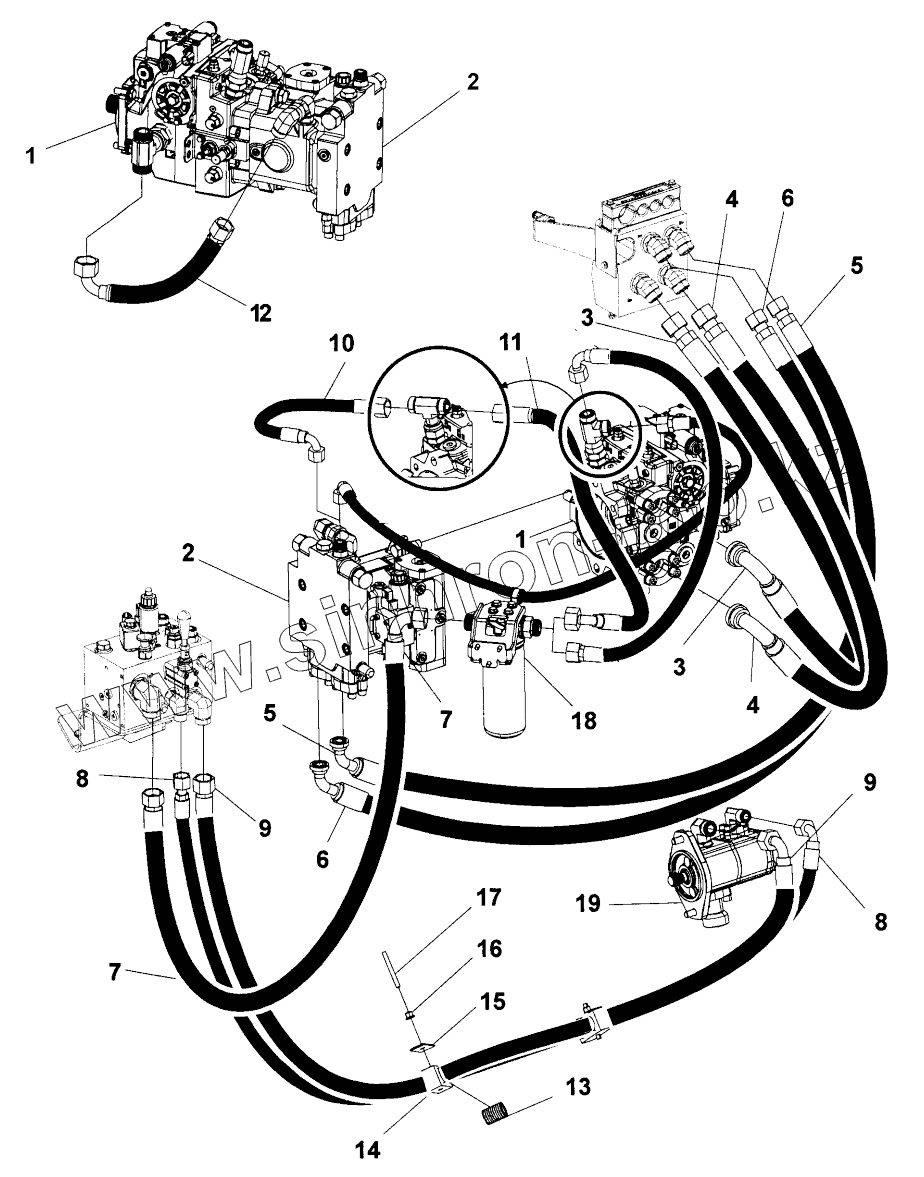

Позиция на иллюстрации
Заводской номер детали
Название детали
1
Hydraulic pump module
Hydraulic pump module
2
Hydraulic pump module
Hydraulic pump module
3
4812127110
Hydraulic hose
4
4812127109
Hydraulic hose
5
4812127084
Hydraulic hose
6
4812127083
Hydraulic hose
7
4811000212
Hydraulic hose
8
4811000218
Hydraulic hose
9
4811000216
Hydraulic hose
10
4812117324
Hydraulic hose
11
4812117322
Hydraulic hose
12
4812114519
Hydraulic hose
13
4812113941
Hose holder clip
14
4700791711
Pipe clamp
15
4700791712
Cover plate
16
4700902286
Lock nut
17
4700791805
Stud
18
Hydraulic oil filter assy
Hydraulic oil filter assy
19
Hydraulic pump module
Hydraulic pump module
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
