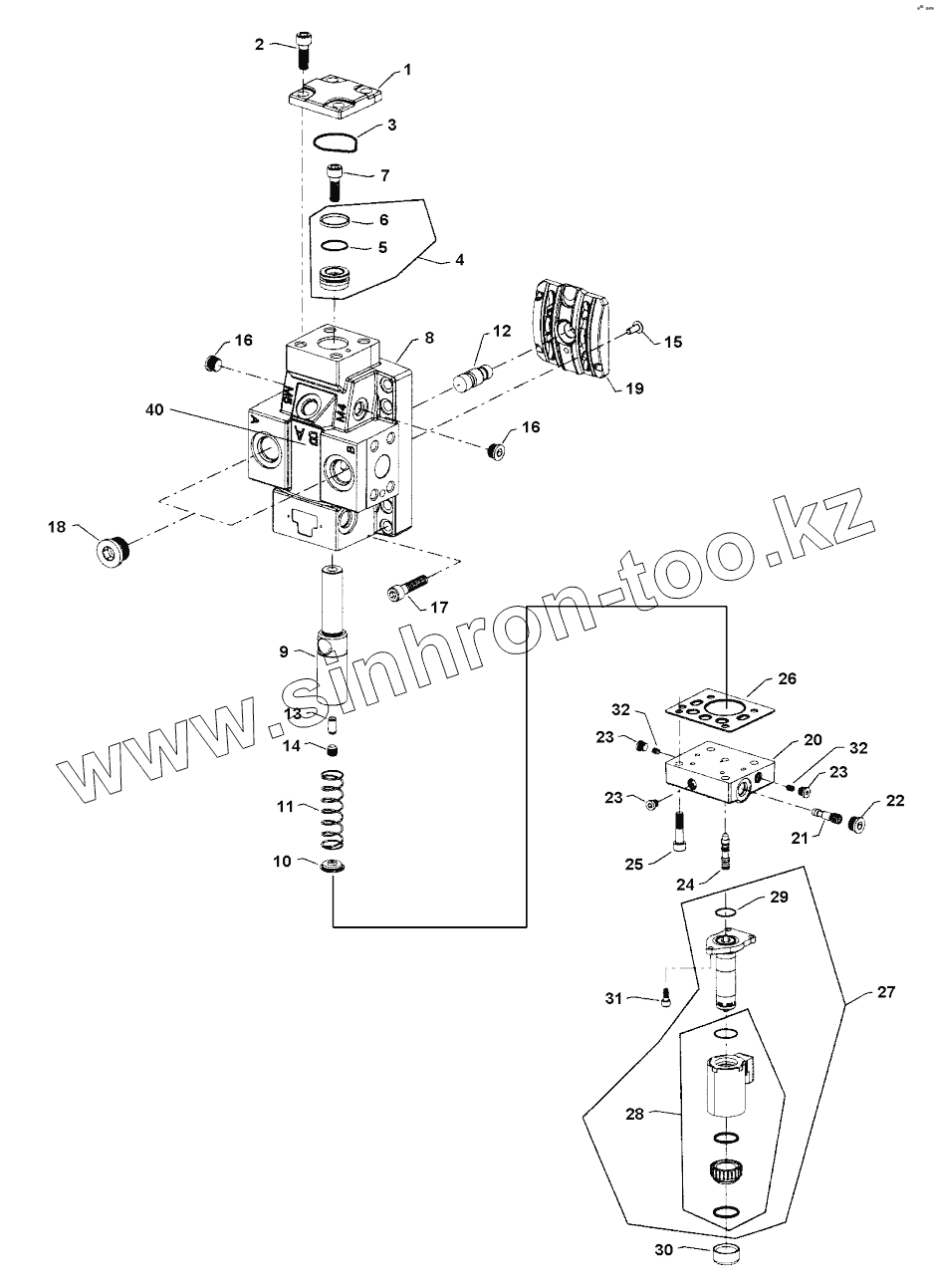

Каталог запасных частей к технике: DYNAPAC CA6500. Front section

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
23
23
24
25
26
27
28
29
30
31
32
32
40
Позиция на иллюстрации Заводской номер детали Название детали
1 Servo piston cover Servo piston cover
2 Screw Screw
3 4812157065 O-ring
4 Servo piston assembly Servo piston assembly
5 4812157083 O-ring
6 4812157084 Piston ring
7 Screw Screw
8 End cap End cap
9 Servo piston Servo piston
10 Spring guide Spring guide
11 Lock nut Lock nut
12 Setting lug Setting lug
13 4812157068 Setting lug pin
14 Set screw Set screw
15 Button head screw Button head screw
16 Plug assembly Plug assembly
17 Screw Screw
18 Plug assembly Plug assembly
19 4812157081 Valve segment assembly
20 Control housing, proportional Control housing, proportional
21 4812156999 Shuttle valve assembly
22 Plug assembly Plug assembly
23 Plug assembly Plug assembly
24 4812157070 Spool
25 Screw Screw
26 4812157080 Control seal
27 4812157071 Solenoid proportional valve
28 4812157072 Coil kit
29 4812157371 O-ring
30 Plastic cap Plastic cap
31 Screw Screw
32 Orifice plug Orifice plug
40 Loop flushing Loop flushing
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
