  5. Drum motor. Front section

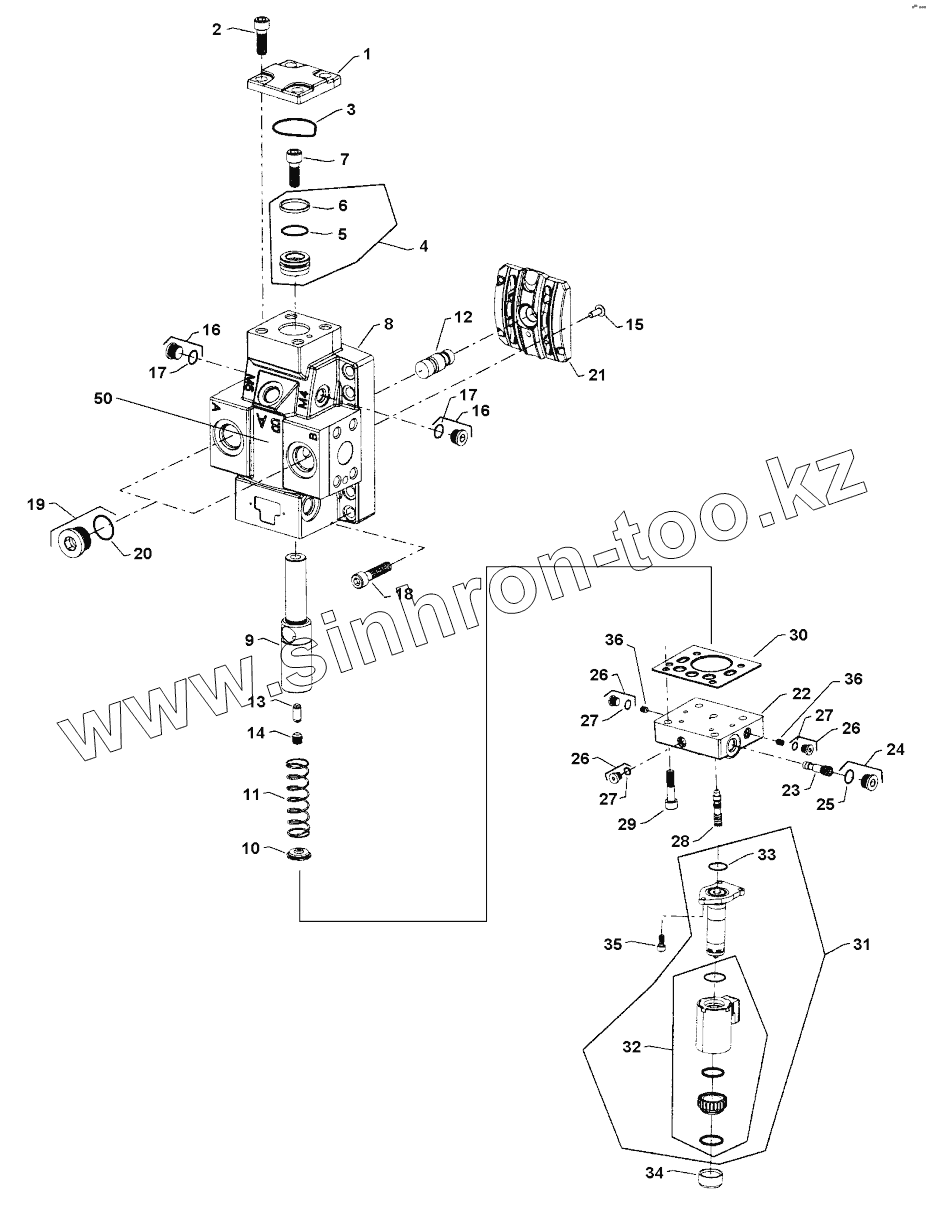

Каталог запасных частей к технике: DYNAPAC CA6500. Drum motor. Front section

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
17
18
19
20
21
22
23
24
25
26
26
26
27
27
27
28
29
30
31
32
33
34
35
36
36
50
Позиция на иллюстрации Заводской номер детали Название детали
1 Servo piston cover Servo piston cover
2 Screw Screw
3 4812157065 O-ring
4 Servo piston assembly Servo piston assembly
5 4812157066 O-ring
6 4812157067 Piston ring
7 Screw Screw
8 End cap End cap
9 Servo piston Servo piston
10 Spring guide Spring guide
11 Lock nut Lock nut
12 Setting lug Setting lug
13 4812157068 Setting lug pin
14 Set screw Set screw
15 Button head screw Button head screw
16 Plug assembly Plug assembly
17 O-ring O-ring
18 Screw Screw
19 Plug assembly Plug assembly
20 O-ring O-ring
21 4812157069 Valve segment assembly
22 Control housing, proportional Control housing, proportional
23 4812156999 Shuttle valve assembly
24 Plug assembly Plug assembly
25 O-ring O-ring
26 Plug assembly Plug assembly
27 O-ring O-ring
28 4812157070 Spool
29 Screw Screw
30 Control seal Control seal
31 4812157071 Solenoid proportional valve
32 4812157072 Coil kit
33 4812157371 O-ring
34 Plastic cap Plastic cap
35 Screw Screw
36 Spring retainer Spring retainer
50 Loop flushing Loop flushing
