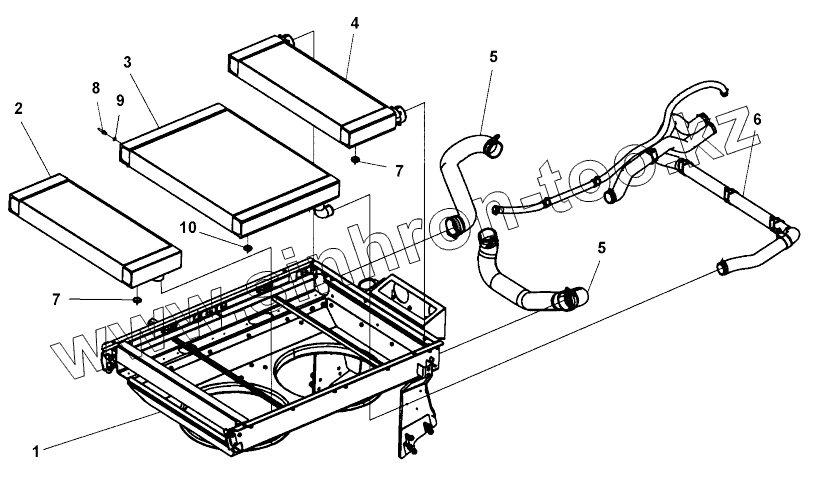

Позиция на иллюстрации
Заводской номер детали
Название детали
1
Cooler stand module
Cooler stand module
2
4812121866
Hydraulic oil cooler
3
4812122685
Water cooler
4
4812121815
Charge air cooler
5
Hose Kit
Hose Kit
6
Hoses
Hoses
7
4812112097
Shock absorber
8
4700792322
Hose connection
9
4700162004
Sealing
10
4812114280
Shock absorber
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
