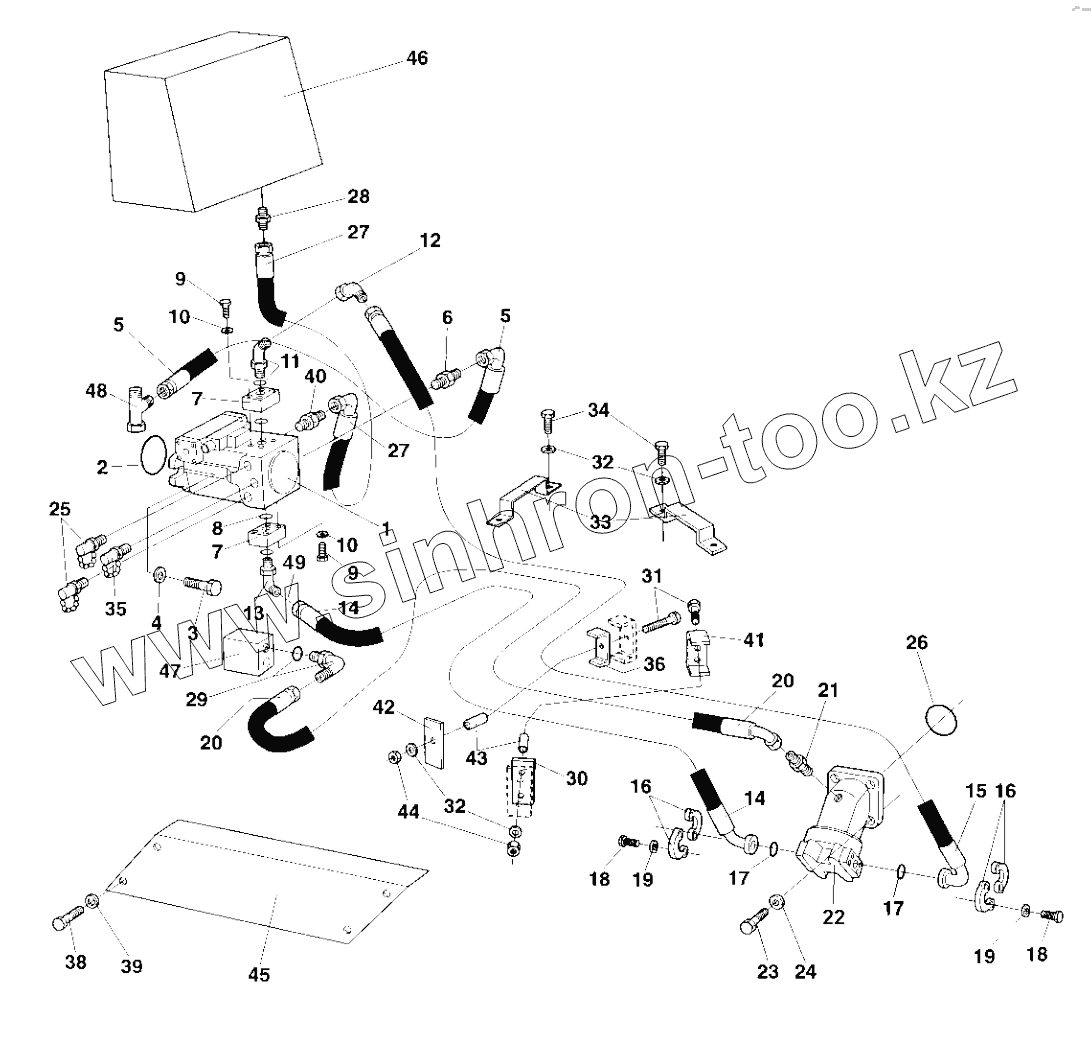

Каталог запасных частей к технике: DYNAPAC CA610PD. Vibration system

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
1
1
2
3
4
5
5
6
7
7
8
9
9
10
10
11
12
13
14
14
15
16
16
17
17
18
18
19
19
20
20
21
22
23
24
25
26
27
27
28
29
30
31
32
32
33
34
35
36
38
39
40
41
42
43
44
45
46
47
48
49
Позиция на иллюстрации Заводской номер детали Название детали
1 4812115828 Vibration pump
1 4700393695 Vibration pump
2 4700160231 O-ring
3 4700502078 Screw
4 4700904232 Steel plain washer
5 4700483023 Hydraulic hose
6 4700234382 Adapter
7 4700345234 Flange coupling
8 4700904773 O-ring
9 4700508080 Screw
10 4700604007 Spring washer
11 4700791212 Adapter
12 4700904495 Elbow
13 4700792299 Adapter
14 4700484044 Hydraulic hose
15 4700484060 Hydraulic hose
16 4700923384 Split flange
17 4700904005 O-ring
18 4700502132 Screw
19 4700904638 Washer
20 4700483031 Hydraulic hose
21 4700334121 Straight connector
22 4700380146 Hydraulic motor, vibration
23 4700500194 Hex. screw
24 4700904231 Washer
25 4700901157 Measuring nipple
26 4700160132 O-ring 70
27 4700483024 Hydraulic hose
28 4700334205 Straight connector
29 4700334419 Elbow
30 4700372580 Rubber part
31 4700500192 Hexagon head screw
32 4700904230 Washer
33 4700372018 Hose clamp
34 4700500028 Screw
35 4700902115 Measuring nipple
36 4700372581 Rubber part
38 Not used on this model Not used on this model
39 Not used on this model Not used on this model
40 4700901155 Connector
41 4700374217 Hose clamp
42 4700372578 Hose clamp
43 4700373112 Spacer
44 4700506018 Nut
45 Not used on this model Not used on this model
46 Hydraulic oil tank Hydraulic oil tank
47 Connection block Connection block
48 Adapter Adapter
49 4700792654 Elbow
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
