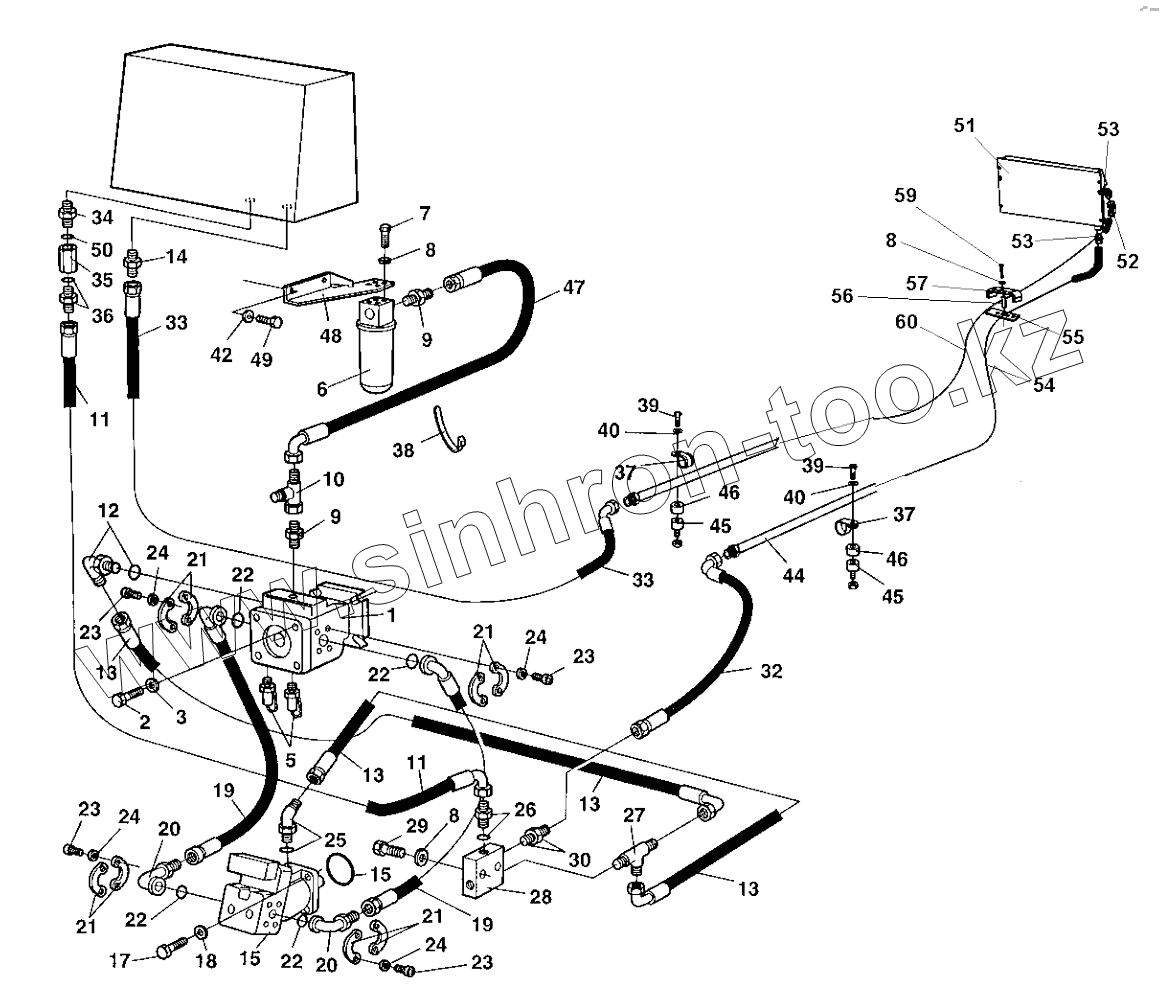

Каталог запасных частей к технике: DYNAPAC CA610PD. Propulsion system, Rear
4700902581
4700902581
4700372229
4700359552
4700359551
4700936898
1
2
3
5
6
7
8
8
8
9
9
10
11
11
12
13
13
13
13
14
15
15
17
18
19
19
20
20
21
21
21
21
22
22
22
22
23
23
23
23
24
24
24
24
25
26
27
28
29
30
32
33
33
34
35
36
37
37
38
39
39
40
40
42
44
45
45
46
46
47
48
49
50
51
52
53
53
54
55
56
57
59
60
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4700902581 | 4700902581 | O-ring | |
| 4700372229 | 4700372229 | Hydraulic oil filter element | |
| 4700359552 | 4700359552 | Cleaning filter element Maximum 50 hours use | |
| 4700359551 | 4700359551 | Filter head | |
| 4700936898 | 4700936898 | Sensor Red | |
| 1 | 4700380830 | Propulsion pump | |
| 2 | 4700500046 | Hex. head screw | |
| 3 | 4700904213 | Washer | |
| 5 | 4700900229 | Measuring fitting | |
| 6 | 4700359550 | Hydraulic oil filter, cpl | |
| 7 | 4700500028 | Screw | |
| 8 | 4700904230 | Washer | |
| 9 | 4700334468 | Adapter | |
| 10 | 4700234243 | T-connector | |
| 11 | 4700482182 | Hydraulic hose | |
| 12 | 4700813499 | Elbow | |
| 13 | 4700482391 | Hydraulic hose | |
| 14 | 4700234909 | Straight connector | |
| 15 | 4700373361 | Propulsion motor | |
| 17 | 4700500263 | Screw | |
| 18 | 4700904793 | Steel plain washer | |
| 19 | 4700483033 | Hydraulic hose | |
| 20 | 4700900604 | Adapter | |
| 21 | 4700923384 | Split flange | |
| 22 | 4700904005 | O-ring | |
| 23 | 4700502132 | Screw | |
| 24 | 4700904638 | Washer | |
| 25 | 4700334132 | Elbow | |
| 26 | 4700334138 | Adapter | |
| 27 | 4700234875 | Tee-connector o-ring | |
| 28 | 4700345243 | Connection block | |
| 29 | 4700500033 | Screw | |
| 30 | 4700334140 | Straight conector | |
| 32 | 4700483128 | Hydraulic hose | |
| 33 | 4700482741 | Hydraulic hose | |
| 34 | 4700904282 | Adapter | |
| 35 | 4700374059 | Check valve | |
| 36 | 4700923371 | Adapter | |
| 37 | 4700921084 | Pipe clamp | |
| 38 | 4700313102 | Cable ties | |
| 39 | 4700500061 | Screw | |
| 40 | 4700904735 | Steel plain washer | |
| 41 | 4700500019 | Hex. screw | |
| 42 | 4700904229 | Washer | |
| 44 | 4700385871 | Connector | |
| 45 | 4700281783 | Shock absorber | |
| 46 | 4700357278 | Spacer sleeve | |
| 47 | 4700482010 | Hydraulic hose | |
| 48 | 4700380490 | Filter bracket | |
| 49 | 4700500021 | Hex. screw | |
| 50 | 4700162008 | Seal washer | |
| 51 | 4700387562 | Hydraulic oil cooler | |
| 52 | 4700234624 | Elbow | |
| 53 | 4700234958 | Connector | |
| 54 | 4700483605 | Hydraulic hose | |
| 55 | 4700372580 | Rubber part | |
| 56 | 4700373112 | Spacer | |
| 57 | 4700372586 | Hose clamp | |
| 59 | 4700500109 | Screw | |
| 60 | 4700483622 | Hydraulic hose |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
