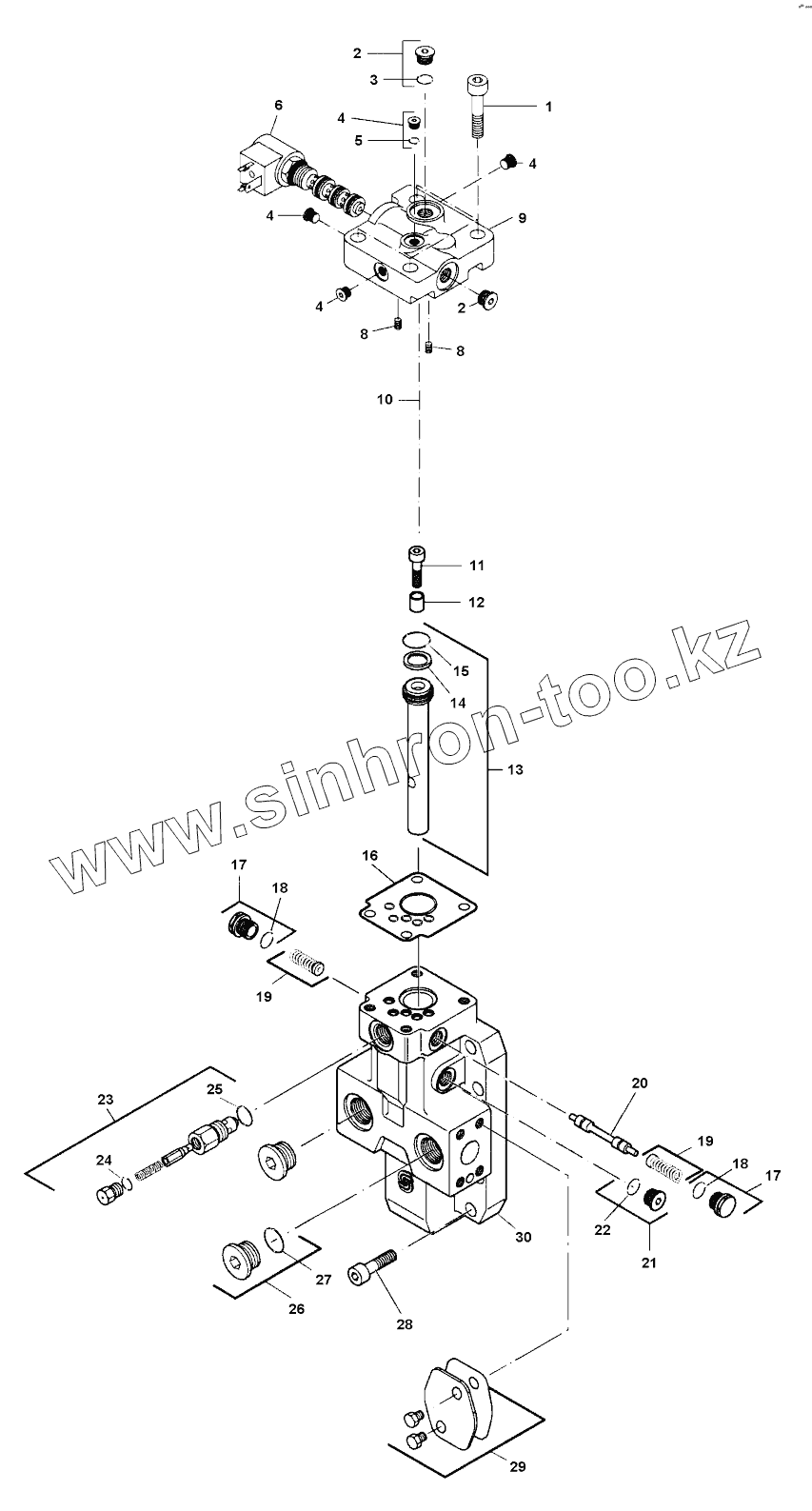

Каталог запасных частей к технике: DYNAPAC CA610PD. End cap
4700909259
End cap, cpl
1
2
2
3
4
4
4
4
5
6
8
8
9
10
11
12
13
14
15
16
17
17
18
18
19
19
20
21
22
23
24
25
26
27
28
29
30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4700909259 | 4700909259 | Coil | |
| End cap, cpl | End cap, cpl | End cap, cpl | |
| 1 | Screw | Screw | |
| 2 | Plug | Plug connector see engine Gr. 9 | |
| 3 | 4700923087 | O-ring | |
| 4 | Plug | Plug connector see engine Gr. 9 | |
| 5 | 4700908440 | O-ring | |
| 6 | 4700908435 | Solenoid valve assy | |
| 8 | Orifice plug | Orifice plug | |
| 9 | Housing | Housing | |
| 10 | 4700935543 | Electric hydraulic control | |
| 11 | Screw | Screw | |
| 12 | Spacer sleeve | Spacer sleeve | |
| 13 | 4700935527 | Piston assembly | |
| 14 | 4700935524 | Seal plug | |
| 15 | 4700935525 | O-ring | |
| 16 | 4812155780 | Seal carrier | |
| 17 | Plug | Plug connector see engine Gr. 9 | |
| 18 | 4700923087 | O-ring | |
| 19 | Guide spring | Guide spring | |
| 20 | Shuttle spool | Shuttle spool | |
| 21 | Plug | Plug connector see engine Gr. 9 | |
| 22 | 4700923087 | O-ring | |
| 23 | Valve assembly | Valve assembly | |
| 24 | 4700923087 | O-ring | |
| 25 | 4812157578 | O-ring | |
| 26 | Plug | Plug connector see engine Gr. 9 | |
| 27 | 4700901453 | O-ring | |
| 28 | Screw | Screw | |
| 29 | Cover | Cover | |
| 30 | End cap | End cap |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
