Каталог запасных частей к технике: DYNAPAC CA610PD. Drum
1
2
3
4
5
6
6
7
7
7
8
8
8
8
8
8
8
10
12
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
28
29
30
31
37
38
38
50
50
51
51
52
52
53
53
54
55
56
57

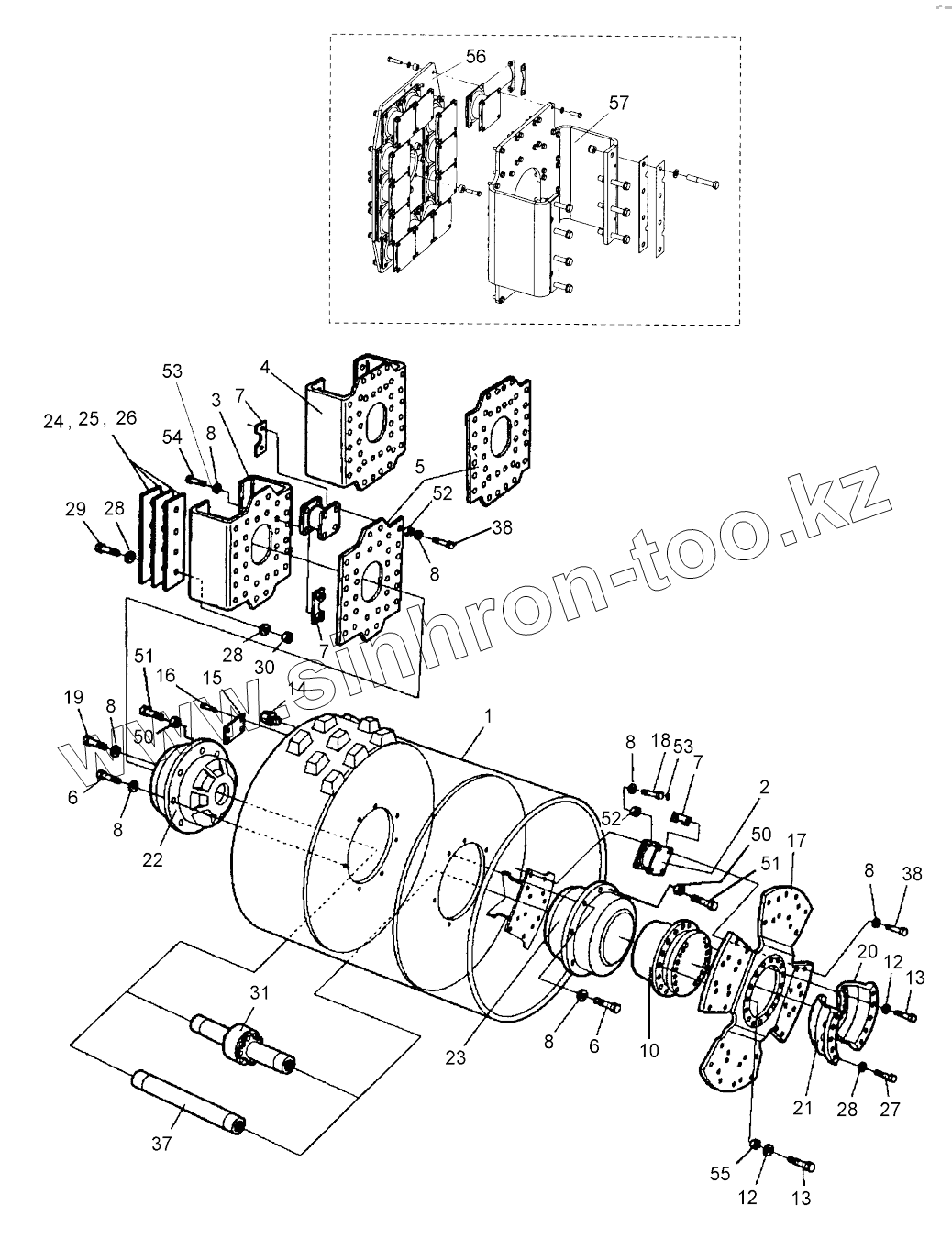

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4700373769 | Drum | |
| 2 | 4700358172 | Shock absorber B | |
| 3 | Not used on this model | Not used on this model | |
| 4 | 4700371955 | Holder plate | |
| 5 | 4700371956 | Holder plate | |
| 6 | 4700500082 | Screw | |
| 7 | 4700374728 | Holder | |
| 8 | 4700904232 | Steel plain washer | |
| 10 | Drum gear | Drum gear | |
| 12 | 4700904233 | Steel plain washer | |
| 13 | 4700903919 | Screw | |
| 14 | 4700232210 | Plug | |
| 15 | Sign plate | Sign plate | |
| 16 | 4700527002 | Drive screw | |
| 17 | 4700373770 | Drive disc | |
| 18 | 4812110835 | Screw | |
| 19 | 4700384121 | Air breather screw | |
| 20 | 4700373442 | Gear holder | |
| 21 | 4700373443 | Gear holder | |
| 22 | Drum cartridge Vibration side | Drum cartridge Vibration side | |
| 23 | Drum cartridge Drive side | Drum cartridge Drive side | |
| 24 | 4700349971 | Shim | |
| 25 | 4700349972 | Shim | |
| 26 | 4700349973 | Shim | |
| 27 | 4700904479 | Screw | |
| 28 | 4700904234 | Steel plain washer | |
| 29 | 4700904562 | Screw | |
| 30 | 4700792464 | Nut | |
| 31 | Not used on this model | Not used on this model | |
| 37 | 4700349682 | Drive shaft | |
| 38 | 4812110552 | Screw | |
| 50 | 4700384114 | Spacer | |
| 51 | 4700500134 | Hex. screw | |
| 52 | 4812110576 | Spacer | |
| 53 | 4811000152 | Cover cap | |
| 54 | 4812110572 | Screw w Tuflok | |
| 55 | 4812110366 | Spacer | |
| 56 | 4812117791 | Holder plate | |
| 57 | 4812117790 | Holder plate |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
