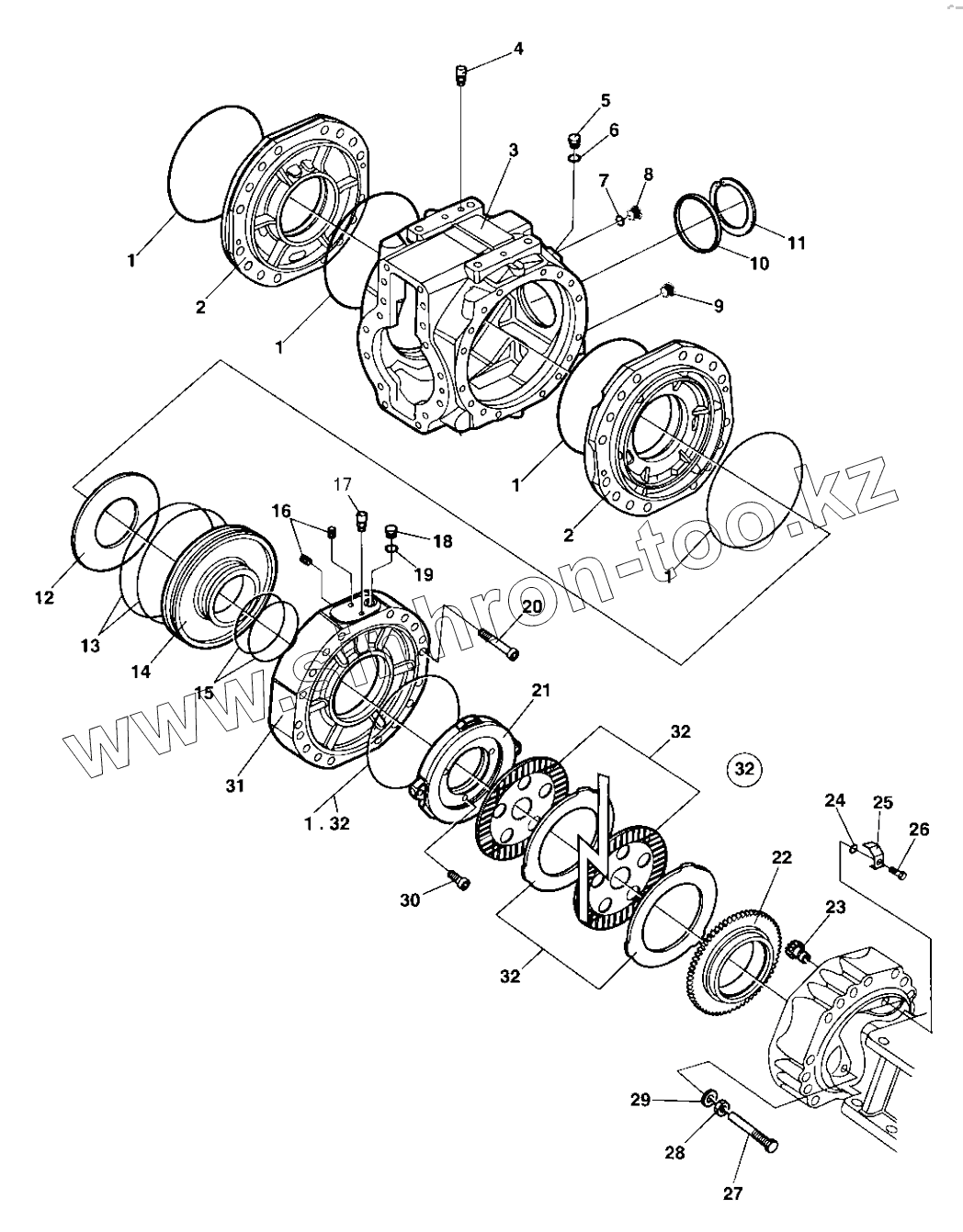

Каталог запасных частей к технике: DYNAPAC CA610PD. Differential housing and brakes
4700909609
4700909609
4700909609
4700909609
Brake disc
Brake disc
Brake disc
Brake disc
Brake disc
Brake disc
Brake disc
Brake disc
1
1
1
1
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
32
32
32
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4700909609 | 4700909609 | O-ring | |
| Brake disc | Brake disc | Brake disc | |
| Brake disc | Brake disc | Brake disc | |
| 1 | 4700909609 | O-ring | |
| 2 | 4700939255 | Cover | |
| 3 | 4700939256 | Housing | |
| 4 | 4700938984 | Vent nipple | |
| 5 | 4700909544 | Screw | |
| 6 | 4700938983 | Seal washer | |
| 7 | Not used on this model | Not used on this model | |
| 8 | 4700939348 | Plug | |
| 9 | 4700926810 | Magnetic plug | |
| 10 | 4700938296 | Plug | |
| 11 | 4700929617 | Snap ring | |
| 12 | 4700909616 | Spring | |
| 13 | 4700909618 | O-ring | |
| 14 | 4700939280 | Piston | |
| 15 | 4700909619 | O-ring | |
| 16 | 4700939281 | Bolt | |
| 17 | 4700938984 | Vent nipple | |
| 18 | 4700939282 | Bolt | |
| 19 | 4700939036 | Sealing washer | |
| 20 | 4700939035 | Screw | |
| 21 | 4700939283 | Disc | |
| 22 | 4700939285 | Ring | |
| 23 | 4700909622 | Pinion | |
| 24 | 4700900966 | O-ring | |
| 25 | 4700939286 | Lock plate | |
| 26 | 4700909624 | Screw | |
| 27 | 4700909626 | Bolt | |
| 28 | 4700900957 | Nut | |
| 29 | 4700926847 | Sealing washer | |
| 30 | 4700939026 | Screw | |
| 31 | 4700939287 | Cover | |
| 32 | 4700939284 | Brake disc kit |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
