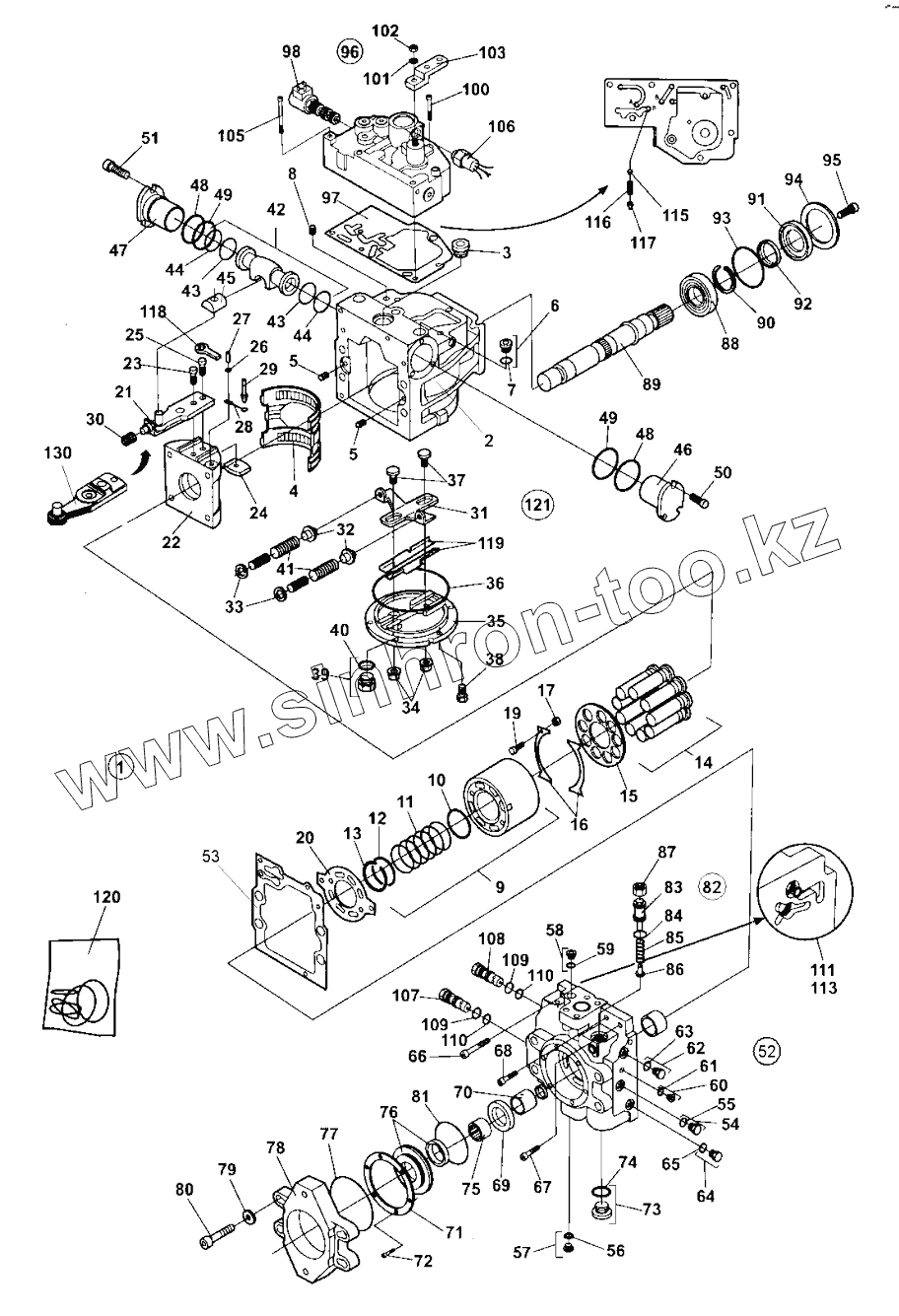

Каталог запасных частей к технике: DYNAPAC CA610PD. 4700380830 Propulsion pump

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
2
2
2
3
4
4
4
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
19
20
21
22
22
22
22
23
23
23
23
24
25
26
27
28
29
30
31
32
33
34
35
35
35
35
36
37
38
39
40
41
42
43
43
44
44
45
46
47
48
48
49
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
81
82
83
84
85
86
87
88
89
90
91
92
92
92
92
93
94
95
96
97
98
100
101
102
103
105
106
107
108
109
109
110
110
111
113
115
116
117
118
119
120
121
130
Позиция на иллюстрации Заводской номер детали Название детали
1 4700380830 Propulsion pump
2 4700936546 Housing
2 4812156652 Housing
3 4700902928 Plug
4 4700901452 Bearing
4 Bearing Bearing
5 4700813822 Pin
6 4700908432 Plug
7 4700923087 O-ring
8 4700901454 Filter element
9 4700901455 Cylinder block, cpl
10 Spacer Spacer
11 Spring Spring
12 Spring retainer Spring retainer
13 Ring retainer Ring retainer
14 4700903570 Piston
15 4700903571 Pressure plate
16 4700901458 Retainer guide
17 4700935856 Spacer
19 4700909382 Screw
20 4700936547 Valve plate
21 4700909727 Servo arm, cpl
22 Swashplate Swashplate
22 Swashplate Swashplate
23 4700909386 Screw
23 Screw Screw
24 4700909387 Guide
25 4700909388 Screw
26 4700909389 Washer
27 4700909390 Pin
28 4700909391 Link
29 4700909392 Pin
30 4700909393 Spring
31 4700936549 Lever
32 Spring support Spring support
33 Washer Washer
34 4700909398 Seal lock nut
35 Cover Cover
35 Cover Cover
36 4700936551 O-ring
37 Guide post Guide post
38 4700936553 Screw
39 4700902928 Plug
40 4700901453 O-ring
41 4700908352 Spring
42 4700936582 Piston, cpl
43 O-ring O-ring
44 Seal ring Seal ring
45 Guide Guide
46 4700903580 Servo
47 4700903580 Servo
48 4700936557 O-ring
49 4700936558 O-ring
50 4700936559 Screw
51 4700936559 Screw
52 4700936560 End cap, cpl
53 4700936561 Gasket
54 4700358388 Plug
55 4700923087 O-ring
56 4700908432 Plug
57 4700923087 O-ring
58 4700908432 Plug
59 4700923087 O-ring
60 4700908432 Plug
61 4700923087 O-ring
62 4700358388 Plug
63 4700923087 O-ring
64 4700358388 Plug
65 4700923087 O-ring
66 4700936562 Screw
67 4700936563 Screw
68 4700936564 Screw
69 4700950283 Spacer
70 4700950284 Spacer
71 4700935857 Retaining plate
72 4700936566 Screw
73 4700936567 Plug, cpl
74 4700936568 O-ring
75 4812156072 Coupling sleeve
76 Not used on this model Not used on this model
77 4700909399 O-ring
78 4700936570 Adapter
79 4700936571 Washer
81 4700937150 O-ring
82 4700936583 Pressure relief valve, cpl
83 Screw Screw
84 O-ring O-ring
85 Spring Spring
86 Valve cone Valve cone
87 Nut Nut
88 4700901465 Roller bearing
89 4700901466 Shaft
90 4700901467 Ring
91 Pressure plate Pressure plate
92 Seal Seal
92 Seal Seal
93 O-ring O-ring
94 Retaining plate Retaining plate
95 Screw Screw
96 4700938170 Control valve, cpl
97 4700939489 Control valve gasket
98 4700938252 Solenoid valve
100 Screw Screw
101 4700909428 Washer
102 4700909429 O-ring
103 4700909432 Control lever
105 4700937857 Screw
106 4700938253 Neutral start switch
107 4700212339 Valve
108 4700212339 Valve
109 O-ring O-ring
110 O-ring O-ring
111 4700901475 Valve
113 4700901476 Plug
115 4700909435 Orifice
116 4700909436 Spring
117 4700908448 Spring retainer
118 Link Link
119 4700936554 Guide assy, 1pair
120 4700901328 Seal kit
121 4700936548 Cover assembly
130 Servo arm Servo arm
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
