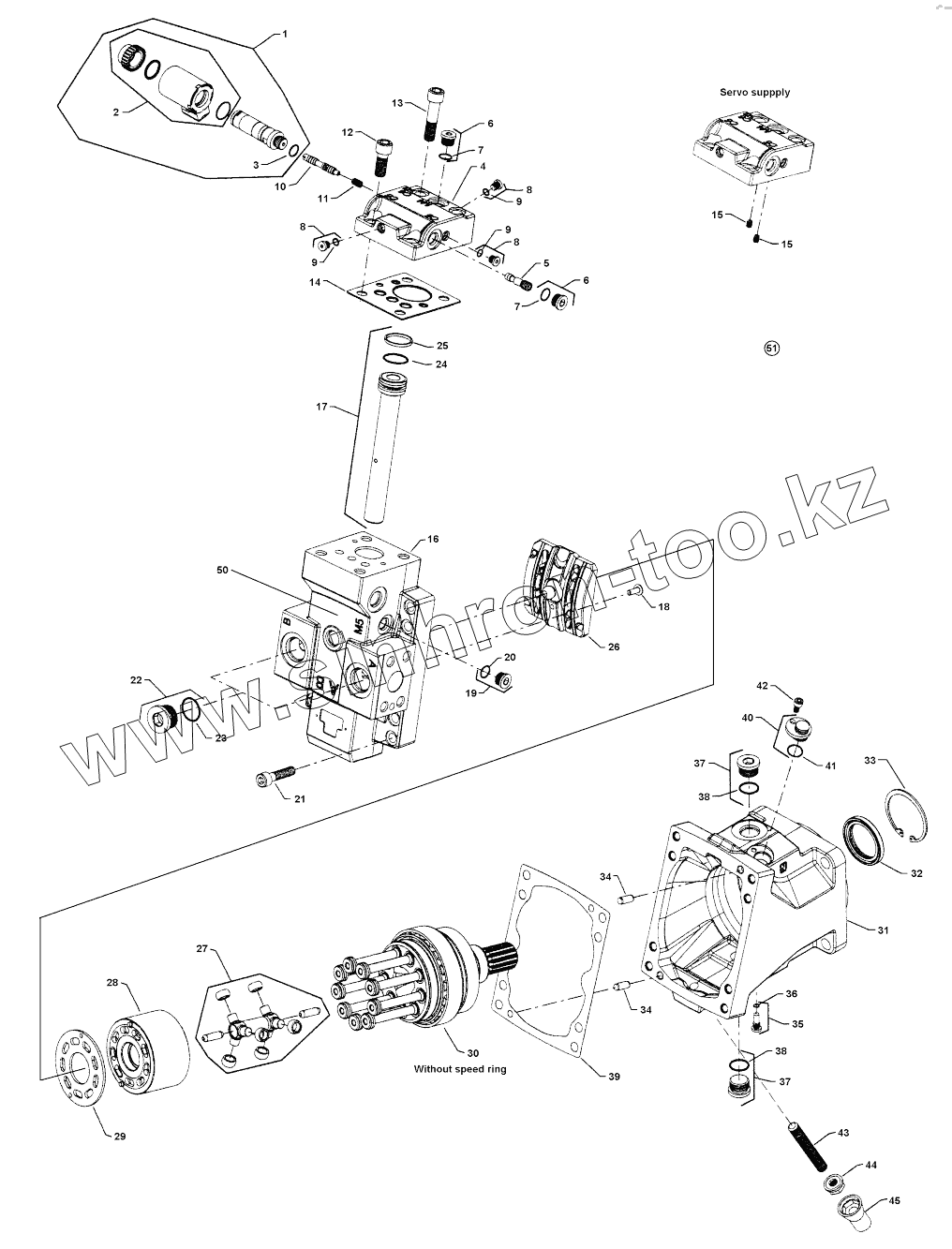

Каталог запасных частей к технике: DYNAPAC CA5500D. 4812112211 Rear axle motor

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
6
7
7
8
8
8
9
9
9
10
11
12
13
14
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
37
38
38
39
40
41
42
43
44
45
50
51
Позиция на иллюстрации Заводской номер детали Название детали
1 4812157074 Solenoid On/off
2 4812157075 Coil kit
3 O-ring O-ring
4 Controlhousing Control housing
5 4812156999 Shuttle valve assembly
6 Plug Plug connector see engine Gr. 9
7 O-ring O-ring
8 Plug Plug connector see engine Gr. 9
9 O-ring O-ring
10 4812157051 Spool
11 4812157052 Spring
12 Screw Screw
13 Screw Screw
14 4812157053 Control seal
15 Orificeplug Orifice plug
16 Endcap End cap
17 4812157076 Servo piston
18 Buttonheadscrew Button head screw
19 Plug Plug connector see engine Gr. 9
20 O-ring O-ring
21 Screw Screw
22 Plug Plug connector see engine Gr. 9
23 O-ring O-ring
24 O-ring O-ring
25 Pistonring Piston ring
26 4812157077 Valve segment assembly
27 Synchshaft Synch shaft assembly
28 Cylinderblock Cylinder block
29 4700902930 Bearing plate
30 Shaft Shaft
31 Housing Housing
32 4700945757 Shaft seal
33 4812157078 Retaining ring
34 Pin Pin
35 Shaftlocatingplug Shaft locating plug assembly
36 O-ring O-ring
37 Plug Plug connector see engine Gr. 9
38 O-ring O-ring
39 4812157079 Gasket
40 PPUPlug PPU Plug assembly
41 4812157057 O-ring
42 Screw Screw
43 Setscrew Set screw
44 4700909525 Seal nut
45 4700902996 Plastic cap, green
50 Loopflusing Loop flusing
51 4812158153 Seal kit,cpl
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
