Каталог запасных частей к технике: DYNAPAC CA4600D. 4812111833 Rear axle No-Spin

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CA1400 (2016) CA2500D (2016) CA2500D (2018) CA2500D-PD (2018) CA250D (2011) CA252D (2008) CA2800D (2017) CA3500D (2016) CA4000D (2017) CA4000D (2020) CA4600D (2019) CA5500D (2015) CA610PD (2014) CA6500 (2018) CC1000 (2019) CC1100CC (2015) CC1200C Plus (2015) CC1200C VI (2018) CC1200CC (2018) CC125 (2015) CC1250 (2015) CC1300 (2018) CC1300C (2015) CC1300C (2016) CC2200 (2018) CC2200 (2020) CC2300C (2018) CC3300 (2018) CC4000 VI (2018) CC4200C VI (2020) CC5200C (2018) CC6200 VI (2020) CC800 (2019) CC900 (2018) CC900S (2018) CG2300 (2018) CP142 (2015) CP275 (2014) Dynapac CA1500 (2017) Dynapac CA2500 (2012) Dynapac CA302D (2008) Dynapac CA302D (2010) Dynapac CA5000D (2017) Dynapac CC142 (2009) Dynapac CC2200C (2015) Dynapac CC224HF (2012) Dynapac CC322 (2008) Dynapac CC422 (2010) Dynapac CC5200 (2014) Dynapac CC5200 (2017) Dynapac CC5200 (2017) Dynapac CC5200 VI (2017) Dynapac CC800 (2013) Dynapac CC800 (2014) Dynapac F1200C/CS (2018) Dynapac F1200CS/CS (2018) Dynapac F1800C (2018) Dynapac F181C (2010) Dynapac PL2000LS (2010) Dynapac PL2000LS (2010) Dynapac PL2000S (2010) Dynapac PL2000S (2010) Dynapac SCC1300 (2014) Dynapac SD2500C (ч. 1) (2018) Dynapac SD2500C (ч. 2) (2018) Dynapac SD2550C (ч. 1) (2018) Dynapac SD2550C (ч. 2) (2018) F2500C (2018) SD2550CS (2015)

Схема > Не выбрано 4812156993 Service kit, 50h Plus 4812163254 Service kit, 500h 4812163255 Service kit, 1000h 4812163256 Service kit, 2000h Eccentric shaft kit 4812157275 Drum rotation kit 4812158578 Shock absorber kit, drum Frame, front 4812117507 Steering hitch, cpl Scrapers, option Scraper module Steel Scraper module Rubber Scraper assy Scraper module PD Scraper module PD Heavy duty Scraper mount Engine structure Engine hood 4812128176 Engine hood, cpl 4812118994 Lock handle, cpl Fender module Hinge module Lock handle assy Gas spring module Safety link module Rear frame module Cover assembly Drum, cpl 4812158092 Drum cartridge, vibration side (D version) 4812158097 Drum cartridge with shaft nut, vibration side (D verison) 4812158087 Drum cartridge, drive side (D version) 4812158093 Drum cartridge, vibration side (PD version) 4812158098 Drum cartridge with shaft nut, vibration side (PD version) 4812158088 Drum cartridge, drive side (PD version) Pad shell, option Engine 4812128972 Diesel engine QSF 4.5 (Stage V) Belt guard module Engine brackets Cooling system Cooler stand module Hose assy kit Fuel system Fuel tank module Fuel tank Brackets, fuel tank Filling module Fuel hoses Fuel draining module Air cleaner system Air cleaner module Exhaust module Expansion tank system Urea/DEF equipment system Urea pump and hoses DEF/Urea equipment module DEF/Urea box Step, DEF box Rear axle and wheels 4812111833 Rear axle No-Spin Differential with no-spin Differential housing and brakes Planet gear 4812111832 Rear axle Limited-Slip Differential Central housing and brakes Hub reduction Hydraulic system, drum Traction control Hydraulic motor module, vibration 4812112216 Hydraulic motor, vibration Rotary group Flush & boost pressure valve with orifice Cover Hydraulic motor 4812112200 Hydraulic motor Loop flushing Hydraulic system, drum Traction control, static linear load high Hydraulic system, drum Anti-spin system Hydraulic motor 4812112202 Drum motor Drum motor. Front section Loop flushing Drum motor. Rear section Hydraulic system, drum Anti spin system, static linear load high Hydraulic system, rear axle - Traction control, no slip Hydraulic motor 4812122932 Hydraulic motor Hydraulic system, rear axle Anti-spin option Hydraulic motor 4812112210 Rear axle motor Front section Rear section Hydraulic system, leak, fan and filter Hydraulic oil tank assembly Hydraulic valve module 4812120840 Hydraulic valve Connector assy Fan module, front Fan module, rear Hydraulic system, pumps Propulsion pump module 4812112171 Hydraulic pump End cap, cpl Vibration pump module Hose brackets Hydraulic system, frame rear Connector kit Connector kit Hydraulic system, steering Hydraulic cylinder 4812121947 Hydraulic cylinder Steering valve module Hydraulic hoses, steering Hydraulic system, emergency steering 4812112188 Hydraulic pump Emergency steering unit 4812112236 Hydraulic valve Electric cables, power supply, 1-pole Battery module Battery disconnector module Electric cables, power supply, 2-pole, option Battery disconnector, 2-pole Electric cables, engine - ECU Horn, back-up alarm, sensor ECU, Inclination sensor, Power converter, fuses Standard ECU assembly Inclination sensor module Horn module Back-up alarm module Back-up alarm module, Quacker Bracket module, Quacker Cable harness kit Power supply cab Driving & side direction lights, number plate light, option Steering column switch module Cable harness kit Registration plate light module Registration plate light Holder, Registration plate light Reversing light module DCA/GPS equipment module, option Holder GPS equipment module GPS equipment assy Computer Tachograph, option Holder assy Power supply module Speed sensor, frequency sensor, option Pulse sensor module (6-pol) Pre-heater installation, option Rotating beacon, working light, option Rotating beacon module Bracket, Rotating beacon Working light module H3 Cable harness, emergency steering, option Regenering delay, displacement shift Compaction meter, option Power supply External emergency stop, option Platform, rops 4812120544 Platform with 4-post ROPS Basic kit Rops, roof, front handrail Rear cover Handrail Cab, basic kit Manual box Decals basic kit Cab symmetric module 4812119364 Cab, cpl Comfort Screens 4812115202 Cab door, cpl 4812115200 Sliding screen, left hand Windshield wiper Roof Heater assy Hose kit heater Cab Interior Cab cable harness Cab, electrical equipment Emergency hammer, hook Cab, front cover Cab, rear cover Floor mat Step light, front wiper switches Air channel Sun-blind, inner light Basic kit AC-ACC 4812113623 Evaporator, cpl Hose assy kit for AC 4812113624 ACC kit 4812119365 Cab, cpl Basic Heater mounts Heater and ac controls Cab Interior Cab, rear cover Cab, front cover Wiper switch, front 4812124074 Cab, cpl Basic manual ac Heater hoses Air conditioning Drying filter module 4812114257 Drying filter assy Condensor assembly Hose kit, refrigerant AC AC Compressor module Car stereo module, option Rear view mirror Rear view mirror module Drivers seat Seat frame structure 4700391163 Steering column Seat frame adapter module, rotating Seat frame adapter module, fixed Seat comfort, fabric suspensioned Seat, galon suspensioned Floor cassette module Seat belt 2" Seat belt 3" Seat belt 2" with reminder Seat belt 3" with reminder Control module Forward reverse control module Display unit Control panel cover Decals Decals Level sensor module, option Fire extinguisher/First Aid Cushion Fire extinguisher SMV-sign Cooling box module Lunch box Dyn@lyzer Dyn@Link module 4812013038 GPS module Compaction meter (DCM)

1

2

3

3

4

4

5

6

7

8

9

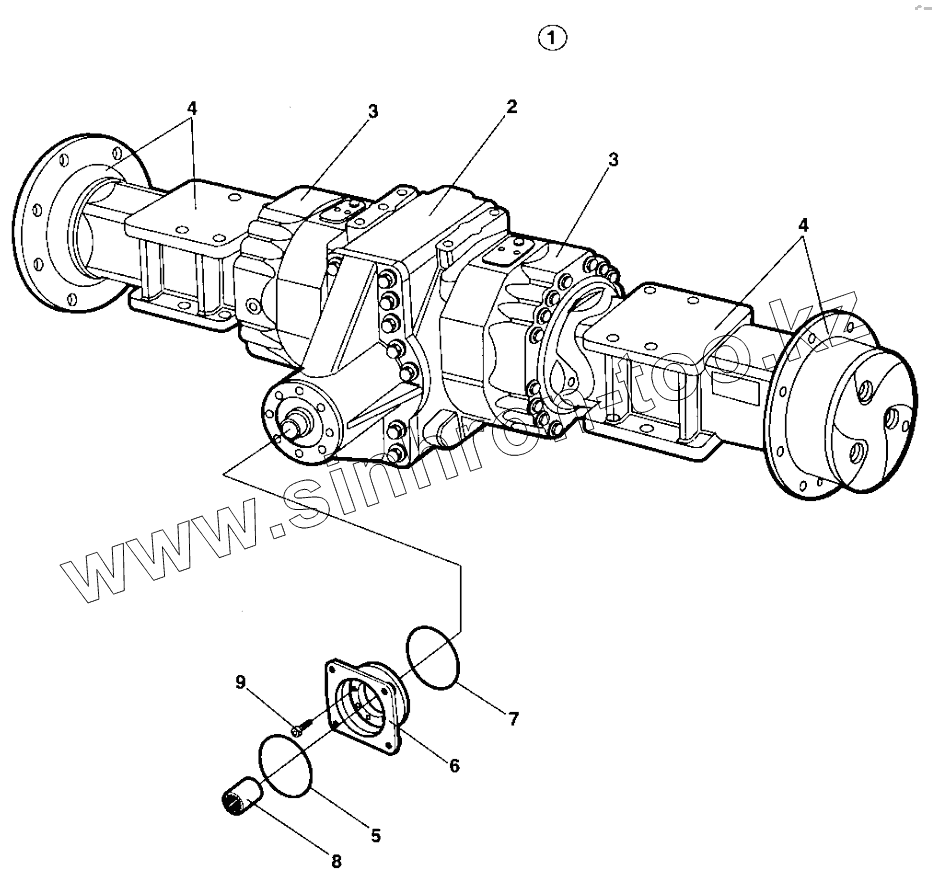

Позиция на иллюстрации	Заводской номер детали		Название детали
1	4812111833		Rear axle No-Spin
2	DifferentialwithNo-Spin		Differential with No-Spin
3	Differentialhousingandbrakes		Differential housing and brakes
4	Planetgear		Planet gear
5	4700909584		O-ring
6	4700900255		Flange
7	4700929648		O-ring
8	4812156887		Splined sleeve
9	4812156888		Screw

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
