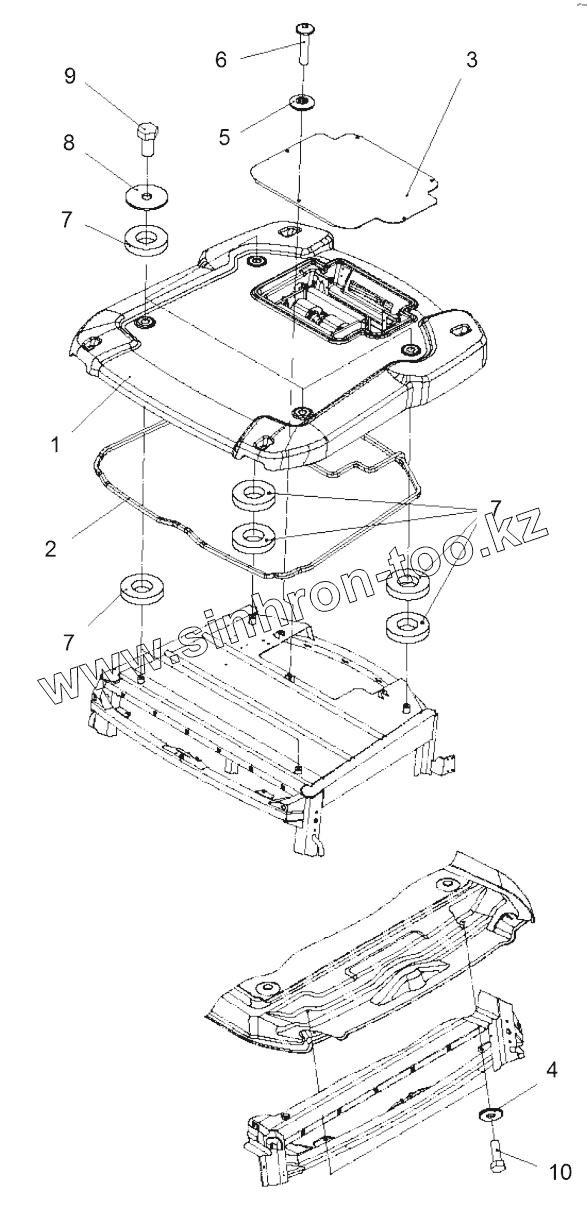

Позиция на иллюстрации
Заводской номер детали
Название детали
1
Heater
Heater module
2
4812115164
Rubber strip
3
4812115165
AC hood
4
4700601003
Washer
5
4812120255
Washer
6
4812162571
Screw
7
4812115170
Seal washer
8
4812115171
Washer
9
4812162572
Hexagon screw
10
4700947680
Hexagon head screw m
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
