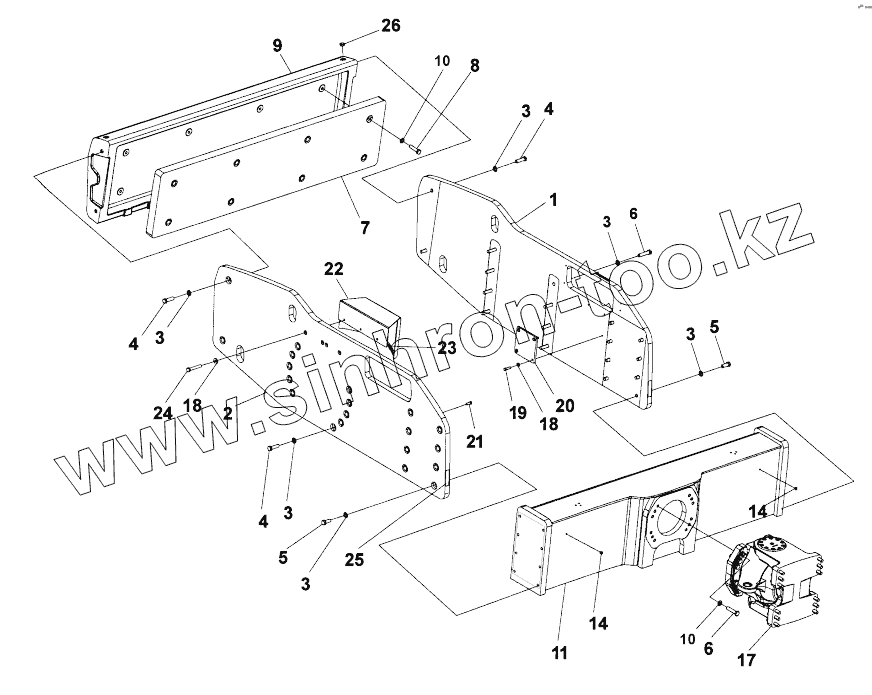

Позиция на иллюстрации
Заводской номер детали
Название детали
1
Sideplate
Side plate
2
Sideplate
Side plate
3
4700903290
Steel plain washer
4
4700500284
Screw
5
4700927411
Screw
6
4700925208
Screw
7
4812112159
Ballast weight
8
4700500287
Screw
9
4812114179
Cross beam
10
4700904233
Steel plain washer
11
4812121882
Crossbeam
14
4700232041
Filter plug
17
4812117507
Steering hitch, cpl
18
4700904230
Washer
19
4700500028
Screw
20
4812113607
Bracket
21
4700500028
Screw
22
4812113885
Protective hood
23
4700902166
Edge trim
24
4700500161
Screw
25
4812130232
Reflector, red
26
4700791396
Protective plug
