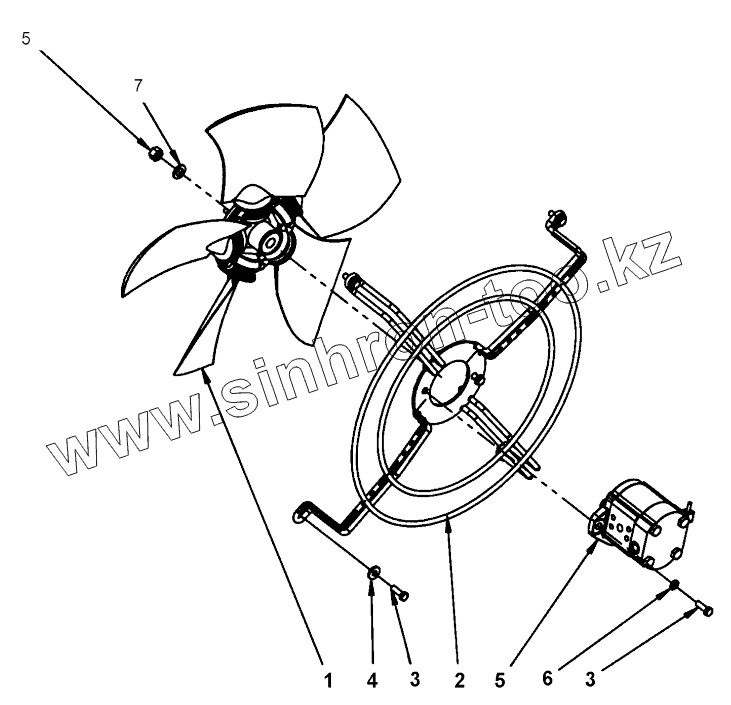

Каталог запасных частей к технике: DYNAPAC CA4000D. Fan module, rear

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CA1400 (2016) CA2500D (2016) CA2500D (2018) CA2500D-PD (2018) CA250D (2011) CA252D (2008) CA2800D (2017) CA3500D (2016) CA4000D (2017) CA4000D (2020) CA4600D (2019) CA5500D (2015) CA610PD (2014) CA6500 (2018) CC1000 (2019) CC1100CC (2015) CC1200C Plus (2015) CC1200C VI (2018) CC1200CC (2018) CC125 (2015) CC1250 (2015) CC1300 (2018) CC1300C (2015) CC1300C (2016) CC2200 (2018) CC2200 (2020) CC2300C (2018) CC3300 (2018) CC4000 VI (2018) CC4200C VI (2020) CC5200C (2018) CC6200 VI (2020) CC800 (2019) CC900 (2018) CC900S (2018) CG2300 (2018) CP142 (2015) CP275 (2014) Dynapac CA1500 (2017) Dynapac CA2500 (2012) Dynapac CA302D (2008) Dynapac CA302D (2010) Dynapac CA5000D (2017) Dynapac CC142 (2009) Dynapac CC2200C (2015) Dynapac CC224HF (2012) Dynapac CC322 (2008) Dynapac CC422 (2010) Dynapac CC5200 (2014) Dynapac CC5200 (2017) Dynapac CC5200 (2017) Dynapac CC5200 VI (2017) Dynapac CC800 (2013) Dynapac CC800 (2014) Dynapac F1200C/CS (2018) Dynapac F1200CS/CS (2018) Dynapac F1800C (2018) Dynapac F181C (2010) Dynapac PL2000LS (2010) Dynapac PL2000LS (2010) Dynapac PL2000S (2010) Dynapac PL2000S (2010) Dynapac SCC1300 (2014) Dynapac SD2500C (ч. 1) (2018) Dynapac SD2500C (ч. 2) (2018) Dynapac SD2550C (ч. 1) (2018) Dynapac SD2550C (ч. 2) (2018) F2500C (2018) SD2550CS (2015)

Схема > Не выбрано 4812156993 Service kit, 50h Plus 4812160777 Service kit, 500h 4812160779 Service kit, 1000h 4812160785 Service kit, 2000h Eccentric shaft kit 4812157275 Drum rotation kit 4812158578 Shock absorber kit, drum Frame, front 4812117507 Steering hitch, cpl Scrapers, option Scraper module Steel Scraper module Rubber Scraper assy Scraper module PD Scraper module PD Heavy duty Scraper mount Rear frame module Cover assembly Step module Step assy Tool box module, Option Engine structure Engine hood 4812128176 Engine hood, cpl 4812118994 Lock handle, cpl Fender module Hinge module Lock handle assy Gas spring module Safety link module Drum, cpl Tooth wheel 4812158092 Drum cartridge, vibration side (D version) 4812158093 Drum cartridge, vibration side (VM4-class) version) 4812158097 Drum cartridge with shaft nut, vibration side (D verison) 4812158098 Drum cartridge with shaft nut, vibration side (VM4-class) 4812158087 Drum cartridge, drive side (D version) 4812158088 Drum cartridge, drive side (VM4-class) Pad shell, option Engine 4812129829 Engine Engine brackets Belt guard module Air cleaner module Cooling system Cooler stand module Water cooler and hoses Fuel system Fuel tank module Fuel tank Brackets, fuel tank Filling module Fuel cooler and hoses Fuel draining module Exhaust module Expansion tank system Urea/DEF equipment system DEF/Urea equipment module Urea pump and hoses DEF/Urea box Step, DEF box Rear axle and wheels 4812113344 Rear axle, limited slip Differential and Bevel gear Brakes Hub reduction Central housing Differential Input Hub reduction Brakes 4812113341 Rear axle No spin Differential Central housing and brakes Hub reduction Hydraulic system, drum Traction control Hydraulic motor module, vibration Hydraulic motor 4812112200 Hydraulic motor Loop flushing Hydraulic system, drum Anti-spin system Hydraulic motor 4812112202 Drum motor Drum motor. Front section Loop flushing Drum motor. Rear section Hydraulic system, rear axle Traction control, limited slip Hydraulic motor Hydraulic system, rear axle Traction control, no slip Hydraulic motor 4812122932 Hydraulic motor Hydraulic system, rear axle Anti-spin option Hydraulic motor 4812112210 Rear axle motor Front section Rear section Hydraulic system, leak, fan and filter Hydraulic oil tank assembly Hydraulic valve module 4812128090 Hydraulic valve Connector assy Fan module, front Fan module, rear Hydraulic system, pumps Propulsion pump module 4812112170 Hydraulic pump, propul pump Front section Rear section Vibration pump module Hose brackets Hydraulic system, frame rear Connector kit Connector kit Hydraulic system, steering Steering valve module Hydraulic cylinder 4812121946 Hydraulic cylinder Hydraulic hoses, steering Electric cables, power supply, 1-pole Battery module Battery disconnector module Electric cables, power supply, 2-pole, option Battery disconnector, 2-pole Electric cables, engine - ECU Horn, back-up alarm, sensor ECU, Inclination sensor, Power converter, fuses Standard ECU assembly Inclination sensor module Horn module Back-up alarm module Back-up alarm module, Quacker Bracket module, Quacker Cable harness kit Power supply cab Driving and side direction lights, number plate light, option Steering column switch module Cable harness kit Registration plate light module Registration plate light Holder, Registration plate light Reversing light module DCA/GPS equipment module, option Holder GPS equipment module GPS equipment assy Computer Tachograph, option Holder assy Power supply module Speed sensor, frequency sensor, option Pulse sensor module (6-pol) Pre-heater installation, option Rotating beacon, working light, option Rotating beacon module Bracket, Rotating beacon Working light module H3 Cable harness, emergency steering, option Regenering delay, displacement shift Compaction meter, option Power supply External emergency stop, option Platform, rops 4812120544 Platform with 4-post ROPS Basic kit Rops, roof, front handrail Rear cover Handrail Cab, basic kit Decals basic kit Manual box Cab symmetric module From A026449 To A026449 Cab symmetric module excl A026449 4812119364 Cab, cpl Comfort Screens 4812115202 Cab door, cpl 4812115200 Sliding screen, left hand Windshield wiper Roof Heater assy Hose kit heater Cab cable harness Cab Interior Cab, electrical equipment Emergency hammer, hook Cab, rear cover Cab, front cover Floor mat Step light, front wiper switches Air channel Sun-blind, inner light 4812119365 Cab, cpl Basic 4812114588 Sliding screen Cab Interior Heater and ac controls Cab, rear cover Cab, front cover Wiper switch, front 4812124074 Cab, cpl Basic manual ac Heater mounts Basic kit AC-ACC 4812113623 Evaporator, cpl Hose assy kit for AC Car stereo module, option Rear view mirror Drivers seat Seat frame structure 4700391163 Steering column Seat frame adapter module, rotating Seat frame adapter module, fixed Seat comfort, fabric suspensioned Seat, galon suspensioned Floor cassette module Seat belt 2" Seat belt 3" Seat belt 2" with reminder Seat belt 3" with reminder Control module Forward reverse control module Display unit Control panel cover Decals Decals Air conditioning Drying filter module 4812114257 Drying filter assy Condensor assembly ACC module 4812113624 ACC kit AC module Hose kit AC Compressor module Dyn@Link module 4812013038 GPS module Compaction meter (DCM) Compaction Seismic

1

2

3

3

4

5

5

6

7

Позиция на иллюстрации	Заводской номер детали		Название детали
1	4812111035		Fan
2	4812118214		Bracket
3	4700500021		Hex. screw
4	4700904640		Washer
5	4812121764		Hydraulic motor
6	4700904229		Washer
7	4700900994		Lock washer

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
