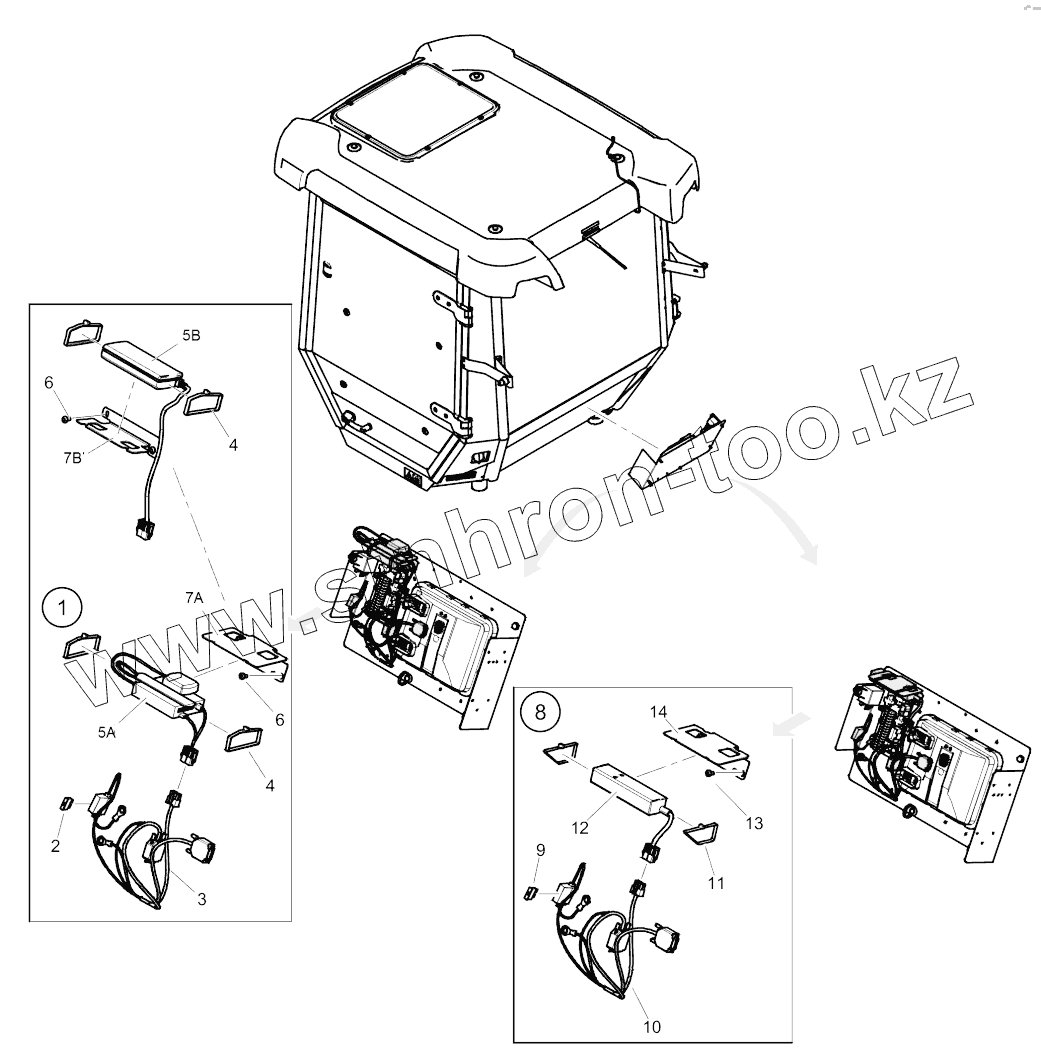

Dyn@Link module
4812013038 GPS module
Compaction meter (DCM)
Compaction Seismic
1
2
3
4
4
5A
5B
6
6
7A
7B
8
9
10
11
12
13
14
Позиция на иллюстрации
Заводской номер детали
Название детали
1
Dyn@LinkAdvanced
Dyn@Link Advanced
2
4700901225
Fuse
3
4812124256
Wiring harness
4
4700792609
Cable ties
5A
4812013040
GPS module
5B
4812201781
GPS module
6
4700792210
Screw torx
7A
4812124199
Bracket
7B
4812129119
Bracket
8
Dyn@Link
Dyn@Link
9
4700901225
Fuse
10
4812124256
Wiring harness
11
4700792609
Cable ties
12
4812013038
GPS module
13
4700792210
Screw torx
14
4812124199
Bracket
