Каталог запасных частей к технике: DYNAPAC CA4000D. Decals

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
1
2
3
3
4
5
5
6
6
7
8
9
10
11
11
12
13
14
15
15
15
16
17
17
17
17
17
18
18
18
18
19
19
20
21
22
22
23
24
28
29
30
30
31
31
32
33
34
34

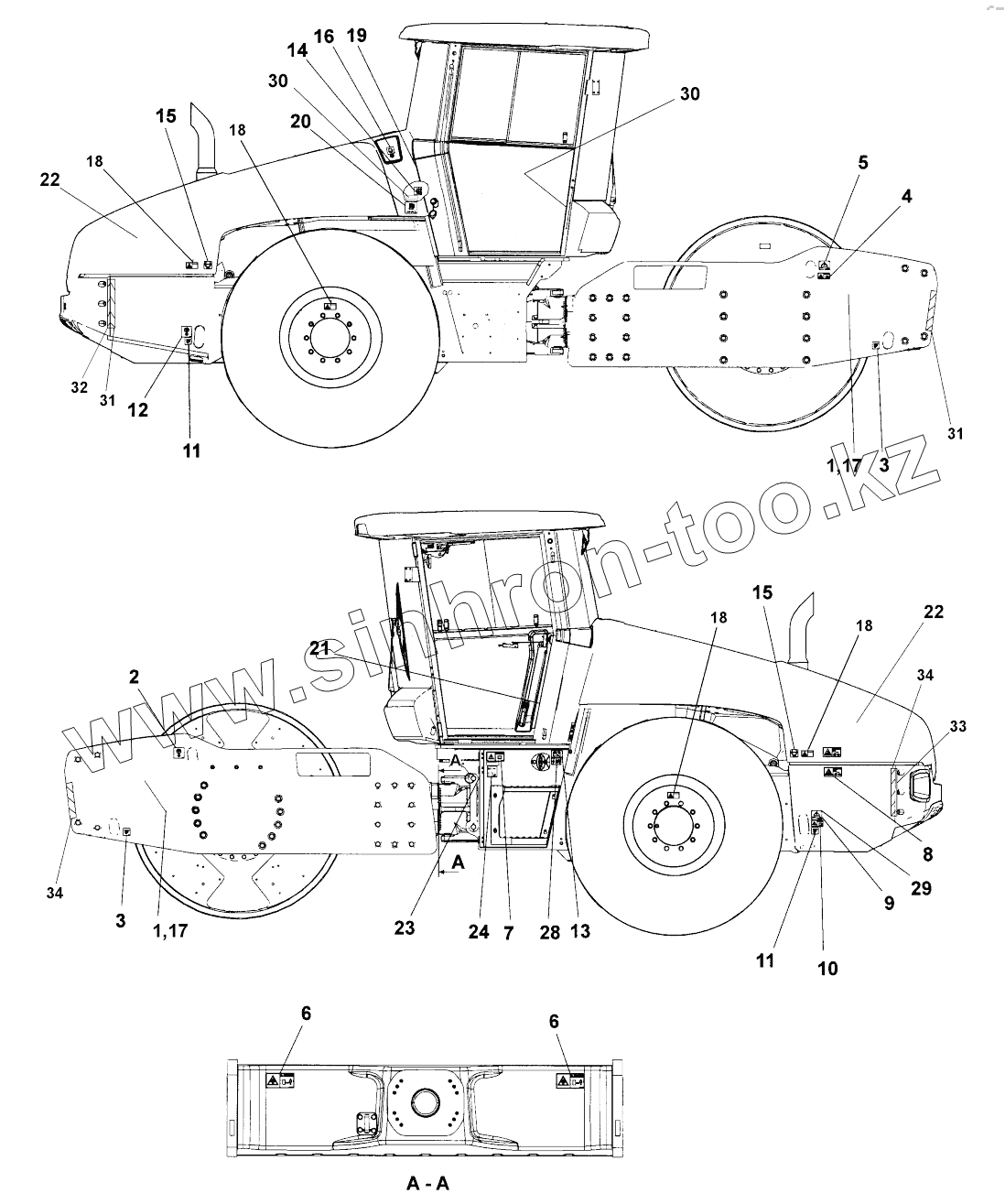

Позиция на иллюстрации Заводской номер детали Название детали
1 4812120101 Decal COMPACTING ROCKS Left
1 4812120100 Decal COMPACTING ROCKS Right
2 4700588176 Decal LIFT POINT
3 4700382751 Decal SECURING POINT/TIE DOWN
4 4700908229 Safety decal
5 4700904870 Lifting data plate
5 4700624005 Blind rivet 3,2x6,1
6 4700903422 Safety decal CRUSH AREA
7 4700903459 Decal SAFETY
8 4700904895 Safety decal Brake release
9 4700904870 Lifting data plate
10 4700908229 Safety decal
11 4700382751 Decal SECURING POINT/TIE DOWN
12 4700588176 Decal LIFT POINT
13 4700904835 Decal BATTERY POWER
14 4700272373 Decal HYDRAULIC LEVEL
15 4700390900 Decal TYRE PRESSURE
15 4700355983 Decal TYRE PRESSURE
16 4700388449 Decal ENGINE COOLANT FILL
17 4812120441 Decal MODEL CODE CA4000
17 4812120439 Decal MODEL CODE CA2800
17 4812120115 Decal MODEL CODE CA3500
17 4812120437 Decal MODEL CODE CA2500
18 4700903985 Decal SAFETY
19 4700272372 Decal HYDRAULIC OIL
19 4700792772 Decal BIO HYDRAULIC OIL PANOLIN
20 4811000345 Decal ULTRA LOW SULFUR FUEL ONLY
21 4700903425 Safety decal READ SAFETY INSTRUCTIONS
22 4812120306 Decal AC logotype Black, H=190
23 Product Product identifdecal Dynapac
24 4700791273 Decal Sound power level 103 dB
28 4700393959 Decal Battery voltage 24V
29 4700624005 Blind rivet 3,2x6,1
30 4811000344 Decal, low sulfur
31 4700904390 Decal Risk location
32 4700904389 Decal Risk location
33 4700904391 Decal Risk location
34 4700904388 Decal Risk location
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
