Каталог запасных частей к технике: DYNAPAC CA3500D. Seat frame adapter module, rotating

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CA1400 (2016) CA2500D (2016) CA2500D (2018) CA2500D-PD (2018) CA250D (2011) CA252D (2008) CA2800D (2017) CA3500D (2016) CA4000D (2017) CA4000D (2020) CA4600D (2019) CA5500D (2015) CA610PD (2014) CA6500 (2018) CC1000 (2019) CC1100CC (2015) CC1200C Plus (2015) CC1200C VI (2018) CC1200CC (2018) CC125 (2015) CC1250 (2015) CC1300 (2018) CC1300C (2015) CC1300C (2016) CC2200 (2018) CC2200 (2020) CC2300C (2018) CC3300 (2018) CC4000 VI (2018) CC4200C VI (2020) CC5200C (2018) CC6200 VI (2020) CC800 (2019) CC900 (2018) CC900S (2018) CG2300 (2018) CP142 (2015) CP275 (2014) Dynapac CA1500 (2017) Dynapac CA2500 (2012) Dynapac CA302D (2008) Dynapac CA302D (2010) Dynapac CA5000D (2017) Dynapac CC142 (2009) Dynapac CC2200C (2015) Dynapac CC224HF (2012) Dynapac CC322 (2008) Dynapac CC422 (2010) Dynapac CC5200 (2014) Dynapac CC5200 (2017) Dynapac CC5200 (2017) Dynapac CC5200 VI (2017) Dynapac CC800 (2013) Dynapac CC800 (2014) Dynapac F1200C/CS (2018) Dynapac F1200CS/CS (2018) Dynapac F1800C (2018) Dynapac F181C (2010) Dynapac PL2000LS (2010) Dynapac PL2000LS (2010) Dynapac PL2000S (2010) Dynapac PL2000S (2010) Dynapac SCC1300 (2014) Dynapac SD2500C (ч. 1) (2018) Dynapac SD2500C (ч. 2) (2018) Dynapac SD2550C (ч. 1) (2018) Dynapac SD2550C (ч. 2) (2018) F2500C (2018) SD2550CS (2015)

Схема > Не выбрано CA3500D/PD (T4F) s/n 10000168xxA018468- 4812156993 Service kit, 50h Plus 4812160777 Service kit, 500h 4812160778 Service kit, 500h Plus 4812160779 Service kit, 1000h 4812160780 Service kit, 1000h Plus 4812160781 Start up kit 4812160785 Service kit, 2000h 4812160786 Service kit, 2000h Plus Eccentric shaft kit 4812157275 Drum rotation kit 4812158579 Shock absorber kit, drum Fuses Keys Frame, front Scrapers, option Scraper module Steel Scraper module Rubber Scraper assy Scraper module PD Hardox Scraper module PD Heavy duty Scraper mount Steering hitch module 4812114990 Steering hitch, cpl Engine structure Engine hood 4812120749 Engine hood, cpl 4812118994 Lock handle, cpl Fender module Hinge module Lock handle assy Gas spring module Safety link module Frame rear Cover assembly Step module Step assy Drum, cpl Tooth wheel module 4812113266 Drum gear Toothed wheel 4812161263 Drum cartridge, vibration side (D version) 4812161264 Drum cartridge with shaft nut, vibration side (D version) 4812161262 Drum cartridge, drive side (D version) Drum suspension Pad shell, option Engine mounting 4812124294 Engine Cummins QSF 3 Belt guard module Bracket module Air cleaner module Cooling system Cooler stand module Water cooler and hoses Expansion tank system Fuel system Fuel hose assembly Fuel tank module Fuel tank Brackets, fuel tank Draining module Exhaust system Urea/DEF equipment system Urea pump and hoses DEF equipment module DEF Box Step, DEF box Rear axle and wheels 4812113341 Rear axle No spin Differential Central housing and brakes Hub reduction Hydraulic system, drum (D) Traction control, dual speed Hydraulic valve module Hydraulic system, rear axle Traction control, no slip 4812112210 Rear axle motor Front section Rear section Hydraulic system, oil tank Hydraulic oil tank assembly Hydraulic valve module Fan module Hydraulic system, frame rear Connector kit Connector kit Hydraulic system, engine room Hydraulic propulsion pump module Hydraulic vibration pump module Hydraulic oil filter assy Steering pump, module Hydraulic system, steering Hydraulic hoses, steering Steering valve module Hydraulic cylinder Cable harness kit Power supply cab Driving & side direction lights, number plate light, option Steering column switch module Cable harness kit Registration plate light module Registration plate light Holder, Registration plate light Reversing light module Rotating beacon, working light, option Working light module H3 Rotating beacon module Bracket, Rotating beacon External emergency stop, option Platform, rops 4812120545 Platform with 4-post ROPS Basic kit Rops, roof, front handrail Rear cover Handrail Cab, basic kit Manual box Decals basic kit Cab symmetric module 4812119366 Cab, cpl Comfort Screens 4812115202 Cab door, cpl 4812115200 Sliding screen, left hand Windshield wiper Roof Heater assy Hose kit heater Cab Interior Heater controls Cab cable harness Cab, electrical equipment Emergency hammer, hook Cab, rear cover Cab, front cover Floor mat Step light, wiper switch Air channel Sun-blind, inner light 4812119367 Cab, cpl Basic Cab, rear cover Cab, front cover Wiper switch, front Rear view mirror Car stereo module, option Heater hoses Drivers seat Seat frame structure 4700391163 Steering column Seat frame adapter module, rotating Seat frame adapter module, fixed Seat, fabric suspensioned Seat, galon suspensioned Floor cassette module Control module Forward reverse control module Display unit Seat belt 2dm Seat belt 3dm Seat belt 2dm with reminder Seat belt 3dm with reminder Control panel cover Decals Decals Color Air conditioning Drying filter module 4812114257 Drying filter assy Condensor assembly ACC module 4812113624 ACC kit AC module 4812113623 Evaporator, cpl Hose kit AC Compressor module Hose assy kit for AC Cooling box module Lunch box SMV-sign Level sensor module, option Dyn@lyzer Compaction meter (DCM) FleetLink module

1

2

3

4

5

6

7

8

8

9

10

11

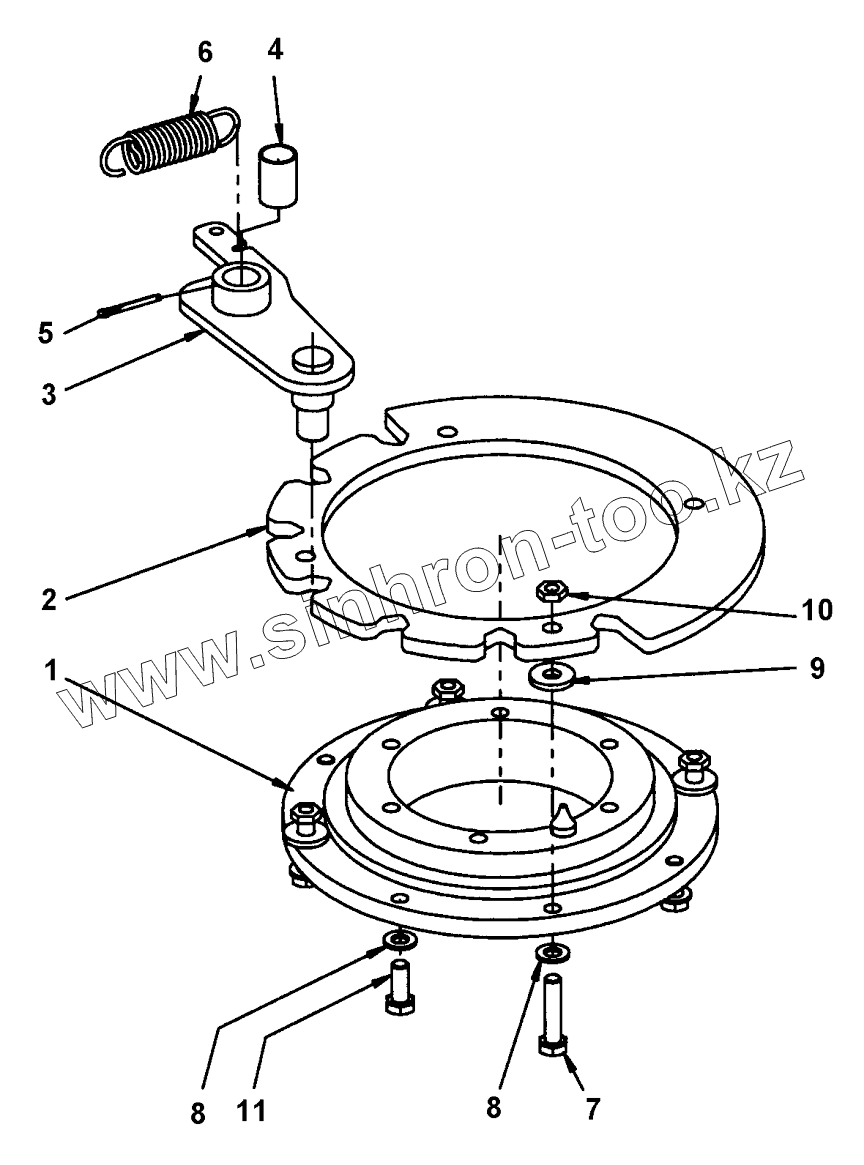

Позиция на иллюстрации	Заводской номер детали		Название детали
1	4700359125		Ball bearing
2	4700379728		Locking disc
3	4812119788		Coupling link
4	4700359819		Bushing
5	4700630008		Pin
6	4700359043		Spring
7	4700792678		Screw
8	4700904229		Washer
9	4700904640		Washer
10	4700573008		Nut
11	4700947679		Hex screw

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
