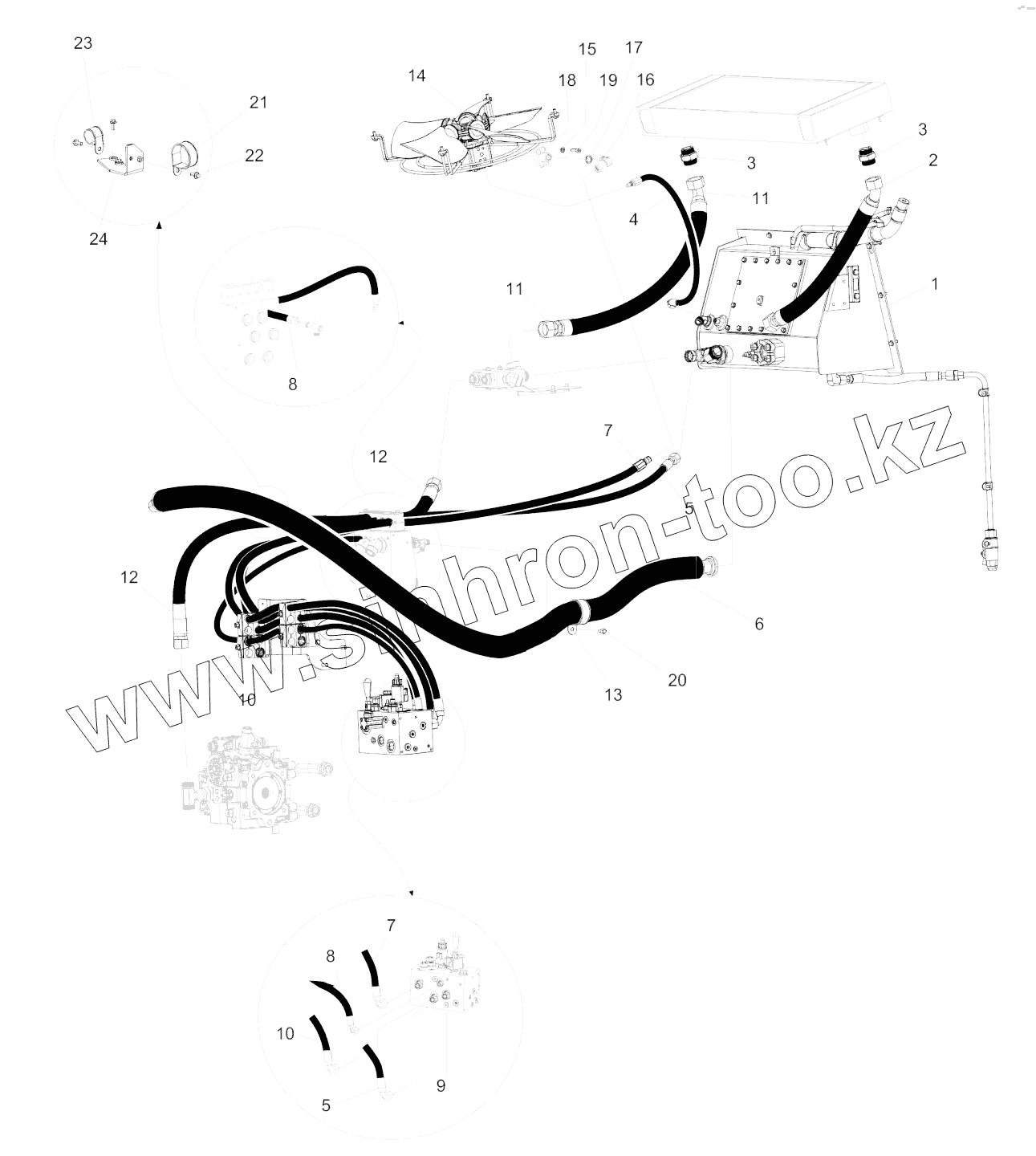

Позиция на иллюстрации
Заводской номер детали
Название детали
1
Hydraulicoiltank
Hydraulic oil tank
2
4811000197
Hydraulic hose
3
4812112555
Adapter
4
4812117445
Hydraulic hose uptc
5
4812122168
Hydraulic hose
6
4812124042
Hydraulic hose
7
4812122166
Hydraulic hose
8
4812122174
Hydraulic hose
9
Hydraulicvalvemodule
Hydraulic valve module
10
Connector
Connector
11
4812122176
Hydraulic hose
12
4812122163
Hydraulic hose
13
4700903703
Clamp
14
Fanmodule
Fan module
15
4700904229
Washer
16
4812115064
Elbow connector
17
4700904774
O-ring
18
4812117732
Flange connector
19
4700508048
Hexagon socket head cap screw
20
4700901832
Screw
21
4700903703
Clamp
22
4700500505
Screw
23
4700923008
Clamp
24
4812122012
Bracket
