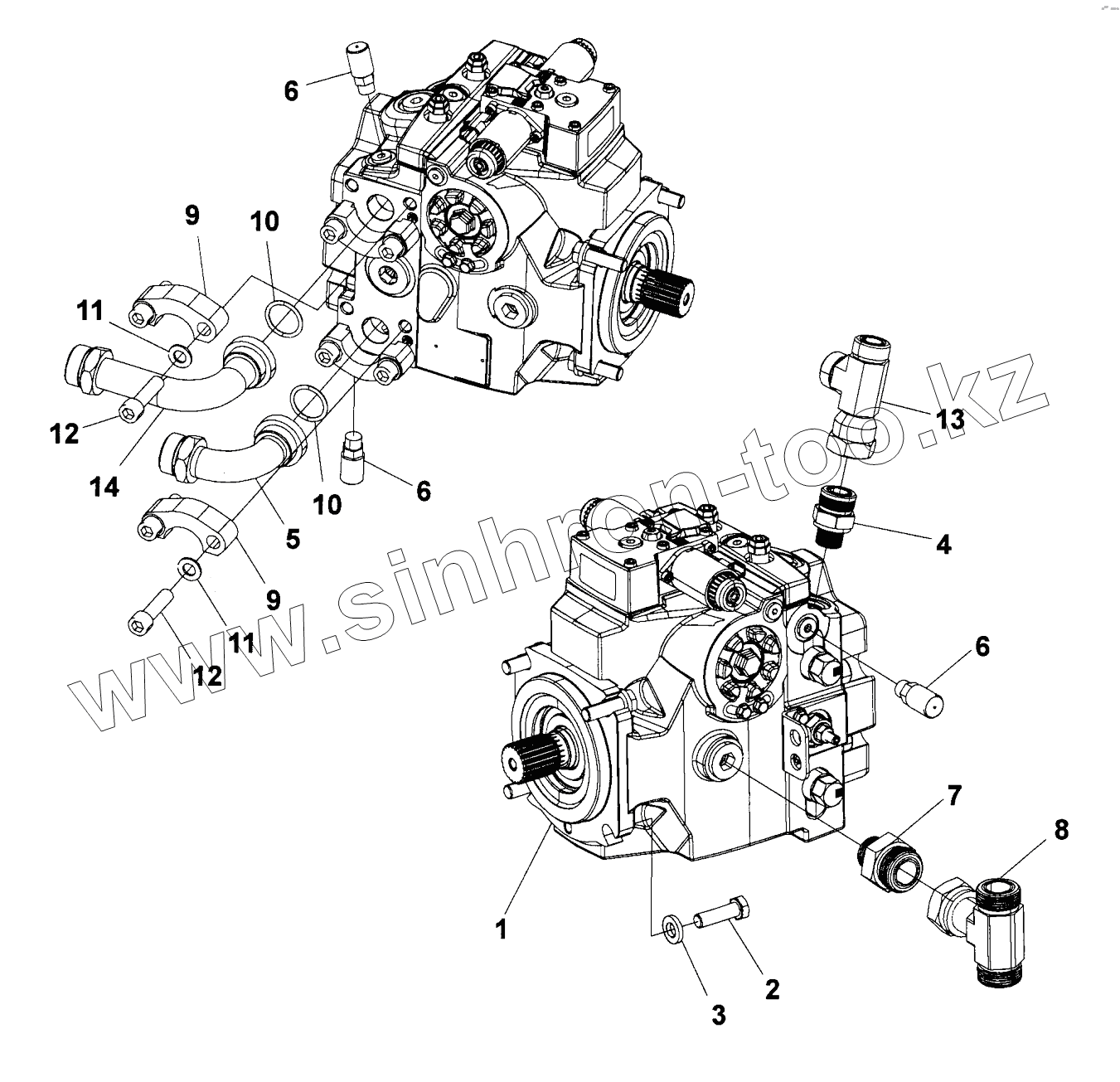

Hydraulic propulsion pump module
Hydraulic vibration pump module
Hydraulic oil filter assy
Steering pump, module
Hydraulic system, steering
Hydraulic hoses, steering
Steering valve module
Hydraulic cylinder
Cable harness kit Power supply cab
Driving & side direction lights, number plate light, option
Steering column switch module
Cable harness kit
Registration plate light module
Registration plate light
Holder, Registration plate light
Reversing light module
Rotating beacon, working light, option
Working light module H3
Rotating beacon module
Bracket, Rotating beacon
External emergency stop, option
Platform, rops
4812120545 Platform with 4-post ROPS
Basic kit Rops, roof, front handrail
Rear cover
Handrail
Cab, basic kit
Manual box
Decals basic kit
Cab symmetric module
4812119366 Cab, cpl Comfort
Screens
4812115202 Cab door, cpl
4812115200 Sliding screen, left hand
Windshield wiper
Roof
Heater assy
Hose kit heater
Cab Interior
Heater controls
Cab cable harness
Cab, electrical equipment
Emergency hammer, hook
Cab, rear cover
Cab, front cover
Floor mat
Step light, wiper switch
Air channel
Sun-blind, inner light
4812119367 Cab, cpl Basic
Cab, rear cover
Cab, front cover
Wiper switch, front
Rear view mirror
Car stereo module, option
Heater hoses
Drivers seat
Seat frame structure
4700391163 Steering column
Seat frame adapter module, rotating
Seat frame adapter module, fixed
Seat, fabric suspensioned
Seat, galon suspensioned
Floor cassette module
Control module
Forward reverse control module
Display unit
Seat belt 2dm
Seat belt 3dm
Seat belt 2dm with reminder
Seat belt 3dm with reminder
Control panel cover
Decals
Decals
Color
Air conditioning
Drying filter module
4812114257 Drying filter assy
Condensor assembly
ACC module
4812113624 ACC kit
AC module
4812113623 Evaporator, cpl
Hose kit AC
Compressor module
Hose assy kit for AC
Cooling box module
Lunch box
SMV-sign
Level sensor module, option
Dyn@lyzer
Compaction meter (DCM)
FleetLink module
1
2
3
4
5
6
6
6
7
8
9
9
10
10
11
11
12
12
13
14
Позиция на иллюстрации
Заводской номер детали
Название детали
1
4812122784
Hydraulic pump, propul pump
2
4700500194
Hex. screw
3
4700904703
Plain washer
4
4812115051
Straight connector orfs
5
4700791213
Flange fitting
6
4700900229
Measuring fitting
7
4812112560
Straight connector orfs
8
4812112561
T-adapter
9
4700923384
Split flange
10
4700904005
O-ring
11
4700904638
Washer
12
4700928791
Screw
13
4700904496
Adapter
14
4812115965
Flange fitting
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
