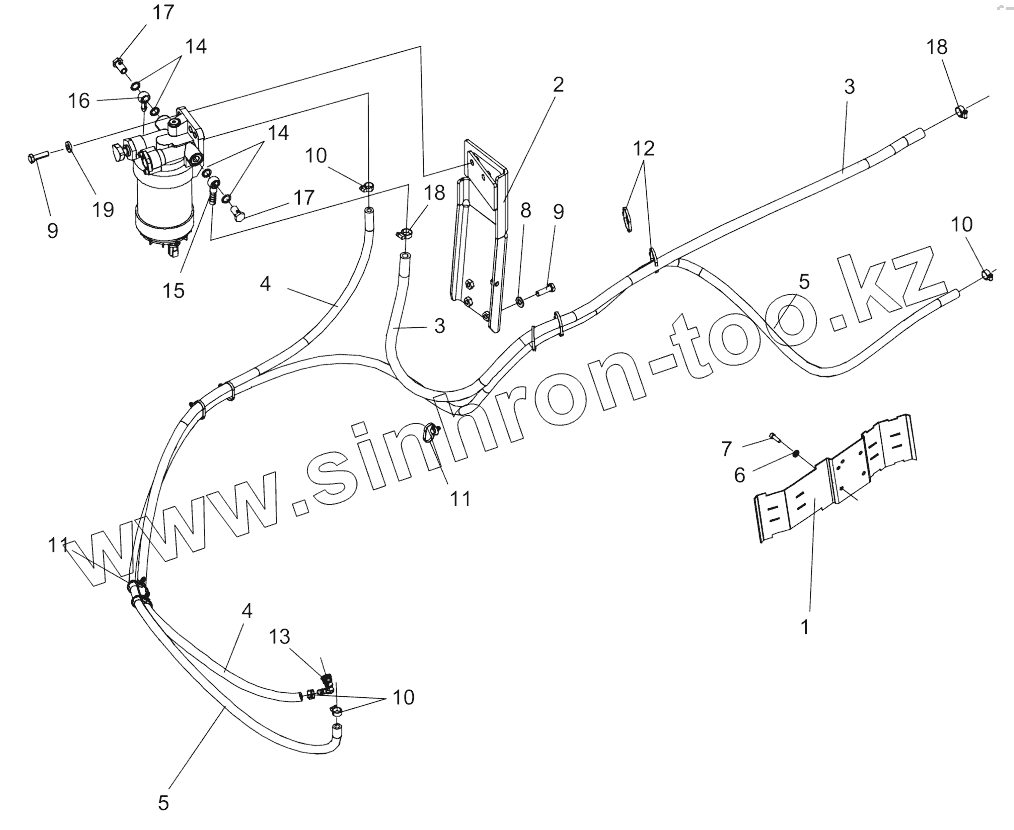

Позиция на иллюстрации
Заводской номер детали
Название детали
1
4812114212
Bracket
2
4812115902
Bracket
3
4700904986
Fuel hose, fire-resistant
4
4700904985
Fuel hose, fire-resistant
5
4700904985
Fuel hose, fire-resistant
6
4700603001
Washer
7
4700508025
Bolt
8
4700904230
Washer
9
4700500030
Hexagon head screw
10
4700313001
Clamp
11
4700792441
Cable tie with holder
12
4700313041
Cable tie
13
4812117789
Quick coupling
14
4700747282
Copper washer
15
4812117397
Banjo coupling
16
4700330170
Banjo coupling
17
4700330171
Hollow screw
18
4700313002
Hose clamp
19
4700904557
Washer
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
